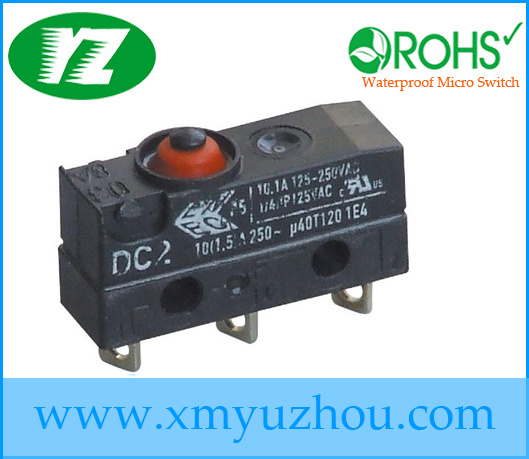

Miniature Sensitive Waterproof Micro Switch

Name: Miniature Sensitive Waterproof Micro Switch
Brand: China-Manufacturer-Directory.com
SKU: 710624145
Availability: InStock
Rating: 5 (101 reviews)

Supplier:	Xiamen Universal Electronic Co., Ltd.
Price:	US $ 0.68/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	MS3-Z0F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
The Theory:	Waterproof Micro Switch
Operating Force:	0.5n~3n
Usage:	Control Button
Kind:	Double-Pole on-off Switch
Type:	Composite
MOQ:	1000PCS
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Small-Sized
Breaking Form:	Single Type
Environment:	﹤250℃
Breaking Capacity:	Micro-Current

Product Description

Waterproof Micro Switch

Characteristics and usage:

*To be stably sealed by sealed rubber ring and epoxy resin. Can be used in wet or dusty places.

*Variety of contact terminals, provide with variety kinds of wire

*Variety of levers

*Raw material accords with RoHS

Apply to microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, Water heater, electric drill, electric radiator, joystick, TV game, time recorder, solder gun, mixer, Food processor, juice maker, alarm, mixer, shredder machine, etc. Can be used in environment resistant places and equipment, apparatus outdoors such asautomobile, automat, refrigerator, Ice machine, bath equipment, water heater and air condition etc.

Item		Value
Operating Speed		0.1mm~1m/s(No Lever)
Operating Frequency		Mechanical 60 cycles/min;Electrical 30 cycles/min
Insulation Resistance		≥100 MΩ(500VDC)
Contact resistance		Terminal type<=50mΩ Wire type<=100mΩ
Test Voltage	Between terminals of the same polarirty	AC1000V,50/60Hz,1min
	Between current-carrying metal parts and ground(case),and betwe- En each terminal and non-current- Carrying metal parts.	AC1500V,50/60Hz,1min
Vibration resistance		10-55Hz,1.5mm Double amplitude
Shork Resistance		Destruction : OF>0.5N:1000m/s ²(approx.100G)max OF<=0.5N:500m/s ²(approx.50G)max Malfunction: OF>0.5N:300m/s ²(approx.30G)max OF<=0.5N:200m/s ²(approx.20G)max
Life Expectancy		Mechnical>=1000000 cycles Electrical>=50000 cycles
Degree of protection		IEC IP67
Degree of protection against electric shock		ClassII
PTI(Tracking Resistance)		175
Ambient air temperature		-40~+125Degree 60%RH below(No ice and fog)
Ambient air humidity		95% Rhbelow(about +5~+35Degree )
Weight		Approx.1.6g(No lever)

Model Specs naming and meaning

1. Degree of Temperature	No Mark:T125	7 Plunger specs	No mark:Standard plunger :Not standard plunger Note: Indicate not standard plunger
2. Ratings	10:10(1.5)A250VAC/10.1A125VAC 6:6A250VAC/6A125VAC 5A125VAC;1A48VDC 3:3A250V/125VAC 01:0.1A250VAC/125VAC
		8. Wire direction And length	R :Wire be educed at the distance of Plunger L :Wire be educed at the close of plunger D :Wire be educed at the lower part of switch ( is the length number-"mm"of the wire)
3. Connect Forms	Z:SPDT T:SPST-NO D:SPST-NC
		9. Degree protecti- On provide by enclosure	No mark: IP67 O:IP
4. Acuator forms	0: No lever A 1/1:Short lever A 2/2:Long lever A 3/3:Middle lever A 4/4:Short Roller A 5/5:Long Roller A 6/6: Arc lever :Not standard lever Note:Indicate not standard lever
		10. Append specs Code and wire Color code	Apply to 1)When used not standard parts such as not standard terminal; 2)When customer has particular operating value or other requirements. 3)When the wire color is not the default color. Additional specs number shows be Arabic numerals.If there is no additional numbers,the place is vacant. Wire color code:indicate with 3 letters, The order is COM,NC,NO;if NO or NC, Vacant place shows O.(Color code:red-R, white-W,black-B,green-G,bule-L,yellow-Y, grey-H,purple-P) example:BWR,BOR,RRO If there are append specs code and wire color code at the same time,then the wire color code should be after the append specs code. Example:02BWR
5. Terminal Types	F:Solder terminal P:(1.3×0.5) PCB terminal P:(0.6×0.5) PCB terminal L:Left side PCB terminal R: Right side PCB terminal T:110 Quick-connect terminal Y:Not standard terminal
6. Operating Force(max)	050:0.5N 100:1N 150:1.5N 200:2N 300:3N Note:if it is not standard operating force,indicate with the upper limit.
