Mining Desander Hydro Cyclone Separator (Preparation Equipment)
Product Specifications
| Prod Model: |
hydro cyclone separator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Polyurethane |
| Usage: |
Dewatering, Desander, Separating, Deslimer, |
| Application: |
Mine, Metallurgy, Chemical, Building, etc |
| Capacity: |
1-350cubicmeter/Hour |
| Feeding Size: |
<2mm |
| Installation: |
Engineer Guidance |
| Certificate: |
ISO9001-2000 |
| After Sale Service: |
Whole Using Life |
| Mining Object: |
Preparation Equipment |
| Type: |
Mineral Processing & Screening Equipment |
Product Description

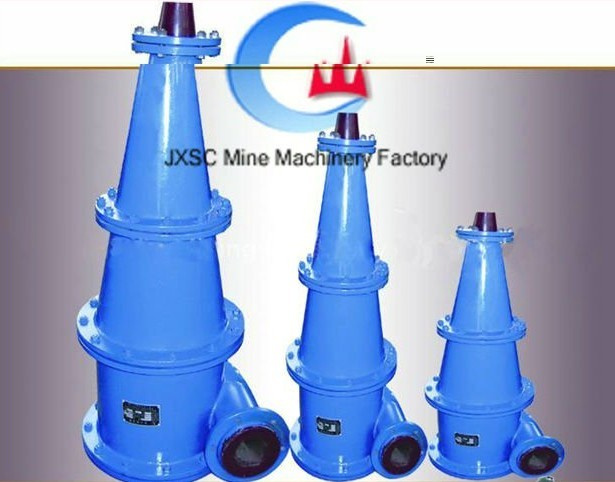

Mining desander hydro cyclone separator(preparation equipment):
1) corrosion resistant hydro cyclone desander
2) multi-functional preparation equipment
3) for desliming, dewatering, classification, desanding, etc.
Mining desander hydro cyclone separator(preparation equipment):
Hydro cyclone separator is widely used in separating of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries. It is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size.
In closed circuit grinding system, it features high classification efficiency and fine over fall fineness under high mine concentration. Classification efficiency is higher for 5-10% than common screw grader.
It benefits for enhancing grader utilizing coefficient. Choose proper specification and mode of cyclone according to grinding processing capacity, over fall fineness and sedimentation concentration.
Features of Hydro Syclone Separator:
The device has features of simple structure, long service life, multi-functional application, large disposal capability, small land covering and no driving power consumption. It is a high efficient grading, desander and de-sliming equipment of fine -particle material
Cyclone Separator General Applications:
Mineral Classification
Solids Concentration
Dewatering
Desliming
Desanding
Sludge Clarification.
Specif
ication |
Canister Interior Diameter
mm |
Cone Angle
O
|
Overfall Pipe Dia
mm
|
Bottom Exit Dia
mm
|
Max.
Perm
itted Fee
ding
Granu
larity
mm |
Feeding Pressure
Mpa
|
Processing Capacity
m3/h |
Classi
fication
Granu
larity
um
|
Overall Siz |
Mach
ine
Weig
ht
Kg
|
L
mm
|
W mm |
H mm |
|
FX660 |
660 |
20 |
180~240 |
80~150 |
16 |
0.03-0.2 |
250~350 |
74-220 |
1250 |
890 |
2650 |
995 |
|
FX500 |
500 |
20 |
130~200 |
35~100 |
10 |
0.03~0.3 |
140~220 |
74~200 |
850 |
790 |
2050 |
495 |
|
15 |
74~150 |
850 |
790 |
2380 |
540 |
|
FX350 |
350 |
20 |
80~120 |
30~70 |
6 |
0.04~0.3 |
60~100 |
50~150 |
775 |
605 |
1765 |
182 |
|
15 |
50~120 |
775 |
605 |
2115 |
230 |
|
FX300 |
300 |
20 |
65~115 |
20~50 |
5 |
0.04~0.3 |
45~85 |
50~150 |
665 |
585 |
1310 |
108 |
|
15 |
40~100 |
665 |
585 |
1505 |
169 |
|
FX250 |
250 |
20 |
60~100 |
16~45 |
3 |
0.06~0.35 |
40~60 |
40~100 |
540 |
480 |
1180 |
72 |
|
15 |
40~100 |
540 |
480 |
1220 |
77 |
|
10 |
30~100 |
540 |
480 |
1380 |
83 |
|
FX200 |
200 |
20 |
40~65 |
16~32 |
2 |
0.06~0.35 |
25~40 |
40~100 |
435 |
360 |
1050 |
60 |
|
15 |
30~100 |
435 |
360 |
1115 |
64 |
|
10 |
30~100 |
435 |
360 |
1205 |
69 |
|
FX150 |
150 |
20 |
30~45 |
8~22 |
1.5 |
0.06~0.35 |
11~20 |
30~74 |
280 |
295 |
690 |
20 |
|
15 |
30~74 |
280 |
295 |
900 |
22 |
|
8 |
30~74 |
280 |
295 |
1270 |
60 |
|
FX125 |
125 |
17 |
25~40 |
8~18 |
1 |
0.06~0.35 |
8~15 |
20~100 |
210 |
185 |
620 |
10 |
|
8 |
20~74 |
250 |
240 |
985 |
12 |
|
FX100 |
100 |
20 |
20~40 |
8~18 |
1 |
0.06~0.35 |
5~12 |
20~100 |
260 |
210 |
525 |
8 |
|
15 |
20~100 |
268 |
215 |
720 |
13 |
|
8 |
20~100 |
268 |
215 |
1000 |
21 |
|
FX75 |
75 |
15 |
15~22 |
6~12 |
0.6 |
0.1~0.4 |
2~5 |
20~74 |
240 |
230 |
465 |
4.2 |
|
6 |
5~40 |
240 |
230 |
800 |
7 |
|
FX50 |
50 |
15 |
11~16 |
3~8 |
0.3 |
0.1~0.4 |
1~2 |
10~74 |
160 |
155 |
350 |
2 |
|
6 |
5~30 |
160 |
155 |
590 |
2.5 |
Jiangxi Province County Mining Machinery Factory is specialized in researching, manufacturing, sales and door tracking service as one of the metallurgical mineral processing machinery enterprise, our company is engaged in the mineral processing equipment product design and production for several years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. The company constantly with technology innovation, hard to develop the country generation into high technology and new technology processing equipment, make excellent brand, mainly the manufacture of the products like as shaking table, flotation equipment, crushing(powder)equipment, magnetic separation equipment, screening equipment, ore washer classifying equipment, agitation equipment, spiral chute equipment, gravity separation jig, feeding equipment, milling equipment. And we can manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten, lead, zinc, tin, molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile, diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal, precious metals and other minerals.
Company has won the Outstanding Business Award, and many times as honesty, service and advanced company, is the backbone of the metallurgical industry, mineral processing machinery business. The company has export qualifications, our products sell well all over the world for many years, especially exported to Brazil, India, Indonesia, South Africa, Somalia, Philippines, Malaysia, Sudan, Kazakhstan, Kyrgyzstan, Cambodia, Vietnam, Korea, Mongolia, Myanmar and other countries.
