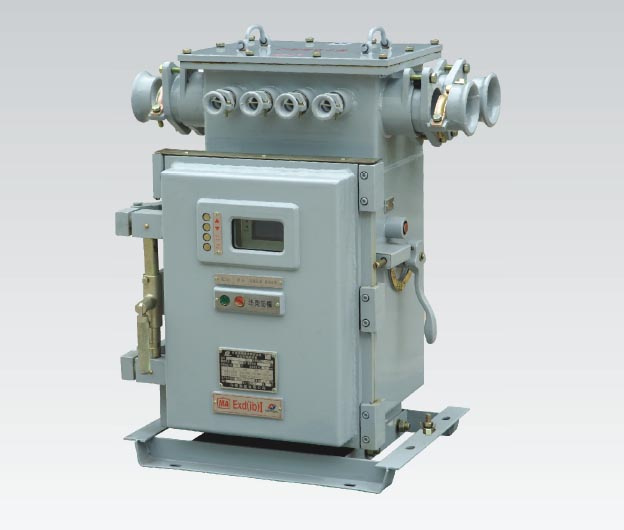

Mining Explosion Proof Signal Comprehensive Protection Device (ZJZ2)
Product Specifications
| Prod Model: |
ZJZ2 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia |
| Type And Specification: |
Zjz2-4.0(6, 8, 10)/1140(660)M, 660(380)M |
| Rated Voltage(V): |
380(660, 1140)/133 |
| Rated Current(a): |
6.08/17.36, etc. |
| Rated Capacity(kVA): |
4, 6, 8, 10 |
| Insulation Grade: |
B |
| Entry Cable O. D. (Mm): |
Main Circuit 12~30, 8~19 Control Circuit 8~12 |
| Outline Dimension(H*W*D)(Mm): |
770*700*555 |
Product Description
Mining explosion proof protection device
Application
This device is applicable in coal mine and around places where are filled with explosive gas mixture, such as methane, coal dust and so on. For using to control the power of illumination and signal load in the power supply circuit of 127V.
Features
1. With 32 bit micro-controller core, industrial-grade peripheral chips, scientific algorithms, reliable and sensitive protection and high measurement accuracy, the device has very high anti-interference ability.
2. The device adopts standardized modular hardware design, high-precision A/D converter, a dedicated power supply module and the crystal timing. In the user's interface, large screen LCD display, automatic backlight and menu-driven instructions are available. The operator can query and modify online. The device will record and transmit the event. The self-test function and secondary password protection function are also available.
3. Can be controlled by the ways of near control and remote control.
4. The device is equipped with RS485 or CAN communication port, that connects to the telecom cable.
5. Has enough protection functions, such as short protection, leakage protection, over voltage protection, under voltage protection and breakage latch protection.
