Product Specifications
| Prod Model: |
Dt-5A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Configuration: |
Portable |
| Power Source: |
AC Power |
| Type: |
Screw |
| Lubrication Style: |
Lubricated |
| Mute: |
Mute |
| Condition: |
New |
| Weight: |
300kg |
| Dimension(L*W*H): |
850*640*840mm |
Product Description
Packaging & Delivery
Packaging Detail: Sea worthy packing
Delivery Detail: Within 10 weekdays.
Specifications

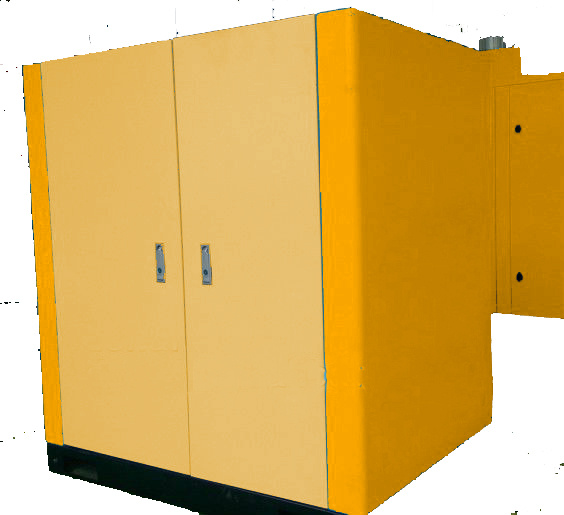

Denair screw mining compressor:
1. Durable & high efficiency air end.
2. Low rotation speed.
3.7 to 13 bar available
Model |
Dt-5A |
Air delivery/
Working pressure |
m3/min
/Mpa |
0.85/0.7 |
0.75/0.8 |
0.65/1.0 |
0.50/1.3 |
Compression stage |
|
Single |
Type of cooling |
|
Air cooling |
Exhaust temperature |
°C |
|
Oil content of discharged air |
ppm |
<3 |
Noise |
dB(A) |
62±2 |
Starting method |
|
Belt driven |
Power |
V/ph/Hz |
380/3/50 or other |
Motor power |
KW |
5.5 |
HP |
7.5 |
Rotation speed |
R/min |
2905 |
Starting method |
|
Direct Start |
Cooling air volume |
m 3 /min |
80 |
Dimension |
L(mm) |
850 |
W(mm) |
640 |
H(mm) |
840 |
Weight |
Kg |
300 |
Outlet pipe diameter |
inch |
G3/4″ |
Our goal is to deliver smart and reliable manufacturing, installation and maintenance of compressed air solutions for our customer needs. We have gained our position as a leader in the compressor world by working diligently in improving our products, techniques and customer service in every scale.
With manufacturing facilities in China and a worldwide distribution network, BEST-PAL serves customers in every corner of the globe. BEST-PAL factory in China is ISO 9001: 2008 certified to assure the highest quality standards.
D-TECH Air Compressors
The Energy-Saving D-Tech Patented Profile Airend Larger, slower-running airends are more efficient and deliver more compressed air for the same input power. BEST-PAL Patented Profile Airends are optimized and designed to operate at the lowest possible speeds. Every BEST-PAL rotary screw compressor is equipped with a highly efficient airend and will quickly pay back for itself through power cost savings.
Time Proven Reliable Airend
Used in compressors worldwide, BEST-PAL airends have proven to be the market leader in both reliability and efficiency.
Precision machined rotors.
Highest quality tapered roller bearings.
All coolant flow paths are integral to the cast housing, eliminating potential leak paths.
Ideal wherever budgets are limited, but the need for performance is not.
Premium Efficiency And Performance
BEST-PAL's premium efficiency compressors deliver reliability through our unique airends, reknowed for trouble-free operation and low energy consumption. Efficiency and durability through low compression ratio in each stage.
