Product Specifications
| Prod Model: |
THN-BS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Initial Resistance: |
<160PA |
| Final Resistance: |
400PA |
| Efficiency: |
>99.99% |
| Weight: |
3kgs |
| Filtration Grade: |
Medium Filter |
| Application: |
Metallurgy |
| Material: |
Glassfiber |
Product Description

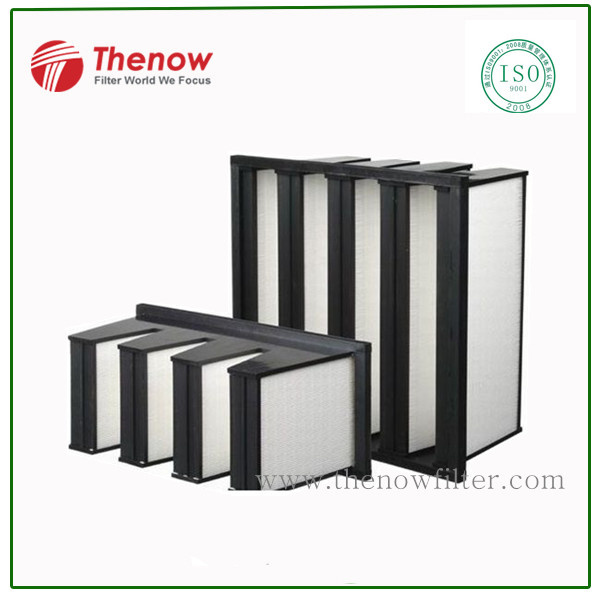

Minipleat F9 Cassettes,Minipleat filter,4-opening
Materials and Operating Conditions:
External Frame:Aluminum
Sealant:Gel-glue
Separator:Hot-melt
Filter Media:Glass Fiber
Maximum Operating Temperature:80C
Gasket:EVA
Fetures:
Ultra Low pressure drop
High efficiency
Light weight
Thin in depth
Low operation cost
Uses:
Suitable for Manufacturing of electron semicondustors atom force research,medicament,precision instrument,toiletry etc..
Our Advantages:
1. We are the biggest filter manufacturer in China;
2. We are the biggest customer of H&V filter media;
3. There is a state-of-the-art laboratory which enables us to give your customization.
| Model | Dimension(WXDXH mm) | Rated Air Flow(m³/h) | Dust Capacity(g) | Face Velocity(m/s) | Initial Resistance(Pa) | Final Resistance(Pa) | Efficiency(MMPS) | Weight(Kg) |
| TN2616150 | 610X610X50 | 700 | 450 | 0.52 | <160 | 400 | >99.99% | 3 |
| TN2916150 | 915X610X50 | 1100 | 700 | 0.52 | <160 | 400 | >99.99% | 4.5 |
| TN2616169 | 610X610X69 | 1000 | 650 | 0.75 | <160 | 400 | >99.99% | 3.8 |
| TN2916169 | 915X610X69 | 1500 | 950 | 0.75 | <160 | 400 | >99.99% | 6 |
| TN2616190 | 610X610X90 | 1300 | 800 | 0.97 | <160 | 400 | >99.99% | 5 |
| TN2916190 | 915X610X90 | 1900 | 1200 | 0.97 | <160 | 400 | >99.99% | 7.5 |
| TN2126190 | 1220X610X90 | 2600 | 1600 | 0.97 | <160 | 400 | >99.99% | 10 |
| TN2121290 | 1220X1220X90 | 5200 | 3200 | 0.97 | <160 | 400 | >99.99% | 20 |
Thenow was established in 2005, belongs to Apureda Group as the wholly-owned subsidiary. Being a standard maker, Apureda Group is a global specialist in the development and production of filtering systems and solutions with 6 production units.
As one of Apureda Group's production units, Thenow's business is to provide customers with sustainable best-in-class air filtration products and services. We mainly focus on manufacturing industrial filters including dust collector filters, gas turbine intake air filters, oil mist collectors and air purifying filters.
Our business concept is to optimize our product quality and service in line with customer needs. Compared with standard filters, Thenow's products can reduce the operating costs of filtration systems, which keep their pressure drop low over a longer time. Our filters can catch more contaminants and operate at lower average resistances because of better designed filter media and larger filter media surface. Thenow's products are widely used in various fields such as petroleum, chemical industry, steel, paint, electronics industry, pharmaceutical industry, shipping, cement, gas turbine etc.
We are reliable because we know the market, we are honest and truthful. Our people, products and processes must always meet, or supersede, agreed results.
Thenow's qualified staffs is glad to support the customers in all matters concerning the efficiency and operations of our products. We provide our customers in very diverse sectors of industry with maximum benefit from our top-quality filters installed in their highly-complex plant. The flexible, customized package comprises a comprehensive filter program plus service support plus warranties - all at guaranteed fixed costs to bring our partners system solutions that are innovative, high-performance, economically efficient, environmentally friendly and offer excellent value for money.
- Technical service support and maintenance of mechanical and electrical system components
- Filter acceptance measurements
- Measuring dust emissions and immissions
- Technical acceptance testing of the filter and ventilation systems
- Checking the systems' technical condition, weak-point analysis
- Documentation of all work performed
