Product Description

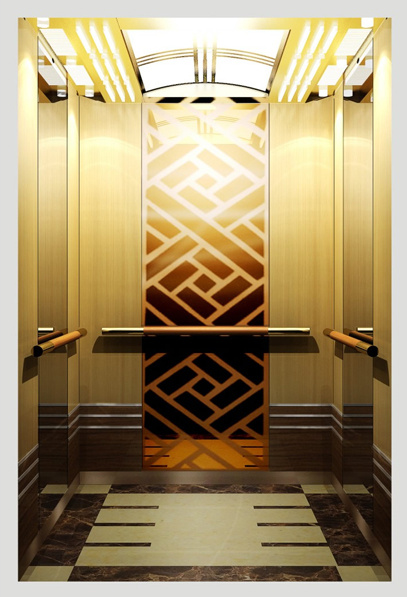

DELFAR Elevator, Smooth Start, Quiet Moving
DELFAR passenger elevator special frequency changer takes the control theory of the advanced technology as the foundation. The start, acceleration, brake curves are designed according to the ergonomic theory in order to get the finest coziness.
DELFAR Control System
The permanent magnetic synchronous drive saves up to 50% in energy consumption.
VVVF drive ensures DELFAR Elevator operate more smoothly. Nice noise control brings passenger peaceful riding experience.
Top Advanced Door Operator System
DELFAR elevator applies the advanced VVVF variable voltage and variable frequency control technology to the elevator door operator system so as to ensure the smooth elevator door and quiet switch. It monitors the variation of elevator door load on every floor so as to guarantee the security and reliability.
Permanent magnet synchronous gearless traction machine
Compared with the ordinary and traditional technology, gearless traction machine can save more than 50% of the energy. Gearless traction machine needs no renewal of lubricant. Without grease pollution, low noise, quiet & natural.
Elevator Specifications:
Rated Capacity: 320kg~1600kg
Rated Speed: 0.4m/s~2.5m/s
| Small machine room passenger elevator construction parameters |
| Loading capacity(Passenger) | 630kg(8 Passengers) | 800kg(10 Passengers) | 1000kg(13 Passengers) | 1250kg(16 Passengers) | 1600kg(20 Passengers) |
| Rated speed(m/s) | 1.0 | 1.5 | 1.75 | 1.0 | 1.5 | 1.75 | 2.0 | 2.5 | 1.0 | 1.5 | 1.75 | 2.0 | 2.5 | 1.0 | 1.5 | 1.75 | 2.0 | 2.5 | 1.0 | 1.5 | 1.75 | 2.0 | 2.5 |
| Door opening size(mm) | 800*2100 | 800*2100 | 900*2100 | 1000*2100 | 1100*2100 |
| Car size(mm) | Width | 1400 | 1400 | 1600 | 1700 | 1900 |
| Depth | 1100 | 1350 | 1400 | 1500 | 1800 |
| Height | 2400 | 2400 | 2400 | 2400 | 2400 |
| Hoistway size(mm) | Width | 2000 | 2000 | 2200 | 2300 | 2500 | 2500 | 2600 |
| Depth | 1700 | 1950 | 2150 | 2000 | 2200 | 2200 | 2400 | 2500 | 2650 |
| Machine room size(mm) | Width | 2000 | 2000 | 2200 | 2300 | 2500 |
| Depth | 3000 | 3400 | 3450 | 3450 | 3750 |
| Height | 2200 | 2200 | 2500 | 2200 | 2500 | 2200 | 2500 | 2200 | 2500 |
| Top floor height(mm) | 4400 | 4500 | 4600 | 4400 | 4500 | 4600 | 4900 | 5100 | 4400 | 4500 | 4600 | 4850 | 5100 | 4500 | 4600 | 4700 | 4900 | 5100 | 4500 | 4600 | 4700 | 4900 | 5100 |
| Pit depth(mm) | 1400 | 1500 | 1500 | 1400 | 1500 | 1500 | 1700 | 1900 | 1400 | 1500 | 1500 | 1700 | 1900 | 1400 | 1500 | 1500 | 1700 | 1900 | 1400 | 1500 | 1500 | 1700 | 1900 |
| Max travelling height(mm) | 40 | 60 | 70 | 40 | 60 | 70 | 100 | 120 | 40 | 60 | 70 | 100 | 120 | 40 | 60 | 70 | 100 | 120 | 40 | 60 | 70 | 100 | 120 |
DELFAR Elevator Co., Ltd. is a specialized elevator enterprise that designs, manufactures, sells, installs, maintains the elevators. The company enjoys a predominant geological location, convenient transportation, broad market. Centered on Jiangnan, Delfar is committed to become the best transportation service solution provider of the globe.
The company strictly accords with the ISO9001 Quality System and European standard to organize the manufacture. Equipped with a full set of world-class numerical control machining equipment, automation equipment including welding machine and precise detecting instrument, relied on advanced world' S leading elevator control technology, the company ensures excellent quality and creates incomparable elevators and escalators, which lays the foundation of solid manufacturing strength.
In order to satisfy customer' S diversified requirements, we produce Passenger elevator, Observation elevator, Bed elevator, Home elevator, Freight elevator, Car elevator, SMR elevator, MRL elevator, Escalator and Moving walk etc. With perfect global marketing services network, Delfar provides a safe, technological, high efficient solution to the buildings of the world and wins the trust of numerous customers, establishing high popularity and reputation of the brand.
Customer oriented, the company pays attention to the whole life cycle of lift from design, manufacture, installation to maintenance service. For this reason and based on talent, the company establishes a professional talent system and rigorous and scientific management system. With comprehensive network management system which integrates CAD, CAM, ERP into one and "5S1A" site management mode, the company provides continuous innovative product solutions and services to the global customers.
