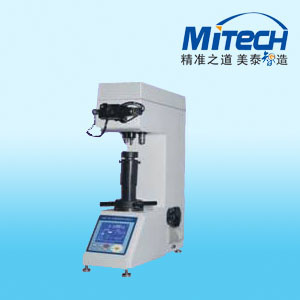

Mitech (HVS-10) Digital Micro Vickers Hardness Tester

Name: Mitech (HVS-10) Digital Micro Vickers Hardness Tester
Brand: china-manufacturer-directory.com
SKU: 690635135
Availability: InStock
Rating: 4.7 (92 reviews)

Supplier:	Mitech Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	HVS-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

HVS-5 HVS-10 HVS-30 HVS-50 Digital Micro Vickers Hardness Tester adopts large LCD screen to display and menu type structure to choice hardness scales HV or HK, store testing results and data procession automatically, as well as output by printer. By means of interface of RS-232, the instrument can be linked with computer. It can be assembled a device to exchange hardness values among scales(Z).

Usage Range:
Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components.

TYPE PROJECT	HVS-5	HVS-10	HVS-30	HVS-50
Testing Force	2.94N(0.3Kgf),4.9N(0.5Kgf), 9.80N(1Kgf),19.6N(2.0Kgf), 29.4N(3.0Kgf),49.0N(5.0Kgf)	2.94N(0.3Kgf),4.9N(0.5Kgf), 9.80N(1Kgf),29.4N(3Kgf), 49.0N(5Kgf),98.0N(10Kgf)	9.8N(1.0Kgf),29.4N(3Kgf), 49.0N(5.0Kgf),98N(10Kgf), 196N(20Kgf),294N(30Kgf)	9.8N(1.0Kgf),49.0N(5.0Kgf), 98N(10Kgf),196N(20Kgf), 294N(30Kgf),490N(50Kgf)
Min Measuring Unit	0.0625μm	0.0625μm	0.125μm	0.125μm
Magnification of Microscope	100X(For Observation) 200X(For Measurement)		100X(For Observation) 100X(For Measurement)
Data Output	(Inside Printer and 232 Interface
Loading Control	Automatically (load, keep, unload)
Net Weight	35kg
Max Height of Speciment	160mm
Max depth of speciments	135mm
Power Supply	AC220V±5%,50~60Hz
Carried Standard	GB/T4340(1.2) Chinese Standard
Standard Accessories	Lens 20x.10x, Vickers indenter ,Digital Measuring eyepiece 10x,Large Testing Table , Medium Testing Table and V shaped Testing Table,Power Cable		Lens 10x, Vickers indenter ,Digital Measuring eyepiece 10x,Large Testing Table , Medium Testing Table and V shaped Testing Table,Power Cable

Mitech is a manufacturer specializes in Non-Destructive Testing (NDT) instruments. Located in Beijing, Mitech has a professional engineer team devoted in R&D and manufacturing advanced high technical instrument; Its main products are ultrasonic digital flaw detectors, portable metal hardness testers, handle ultrasonic thickness gauges, and coat thickness gauges etc.

Until now, Mitech has distributors dispersed in major cities of China and offers excellent after-sale service. Mitech's instruments are widely used in domestic generating industry, petroleum and chemical industry, pressure vessel manufacturing industry and so on, for providing quality control procedure; Customers are satisfied with the high-quality, good reliability and its prompt after-sale services.

Mitech's mission is to provide customers with the best products and services, make contributions to the development of our world, the company is active in communicating with our distributors and customers both present and potential, main conversions and exhibitions of non-destructive testing are good chances for people to know more about Mitech and its products. Mitech welcomes to join hands with more friends.
