Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Polystyrene-film-capacitors |
| Package Type: |
Through Hole |
| Application: |
General Purpose |
| Capacitance: |
102-824 |
Product Description

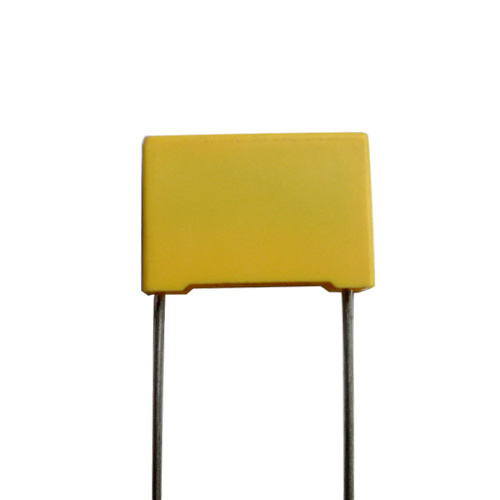

MKP X2 capacitor
1. Special needs can be designed according to customer requirements.
2. Application: Are suitably used in connected across a power line, bypass, coupling and switching surge suppressor and other electronic and electrical equipment
3. Features: High insulation resistance, long life due to self-healing effect.
Low loss at high frequency, suitable for high current.
4. General technical data:
Normative references: GB/T 14472-1998(IEC60384-14 2005)
Temperature range: 40/110/21
Rated Voltage: 275VAC(50~60 Hz)
Capacitance Range: 0.001UF ~ 1.0 UF
Capacitance Tolerance: ± 10%(K), ± 20%(M)
Voltage Proof: 1200VDC Of Rated Voltage, 1~5sec. (Between Terminals)
2000VAC, 1~5sec. Between terminal and Enclosure
Insulation Resistance: CR ≤ 0.33UF IR ≥ 15, 000MΩ
CR > 0.33UF IR ≥ 5, 000. S
Dissipation Factor: <0.1%
5. Construction
Dielectric: Metalized polypropylene film
Electrode: Tin zinc
Lead wire: Tin-plating of copper cover steel
Coating: Epoxy resin
|
Capacitance |
Dimensions (mm) |
Capacitance |
Dimensions (mm) |
|
W±1.0 |
H±1.0 |
T±1.0 |
F±0.8 |
W±1.0 |
H±1.0 |
T±1.0 |
F±0.8 |
|
102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 |
13 |
11 |
5 |
10 |
105 |
32 |
20 |
11 |
27.5 |
|
104 |
13 |
12 |
6 |
10 |
125 155 225 |
32 |
22 |
13 |
27.5 |
|
393 473 563 683 823 |
18 |
11 |
5 |
15 |
155 |
26.5 |
22 |
13 |
27.5 |
|
104 124 154 |
18 |
12 |
6 |
15 |
185 |
32 |
22 |
13 |
27.5 |
|
184 |
18 |
13.5 |
7.5 |
15 |
225 |
32 |
28 |
14 |
27.5 |
|
224 274 |
18 |
14.5 |
8.5 |
15 |
255 275 |
32 |
31 |
22 |
27.5 |
|
334 |
18 |
14.5 |
10 |
15 |
125 |
38 |
24 |
13 |
31.5 |
|
394 |
18 |
16 |
9.5 |
15 |
185 205 |
38 |
28 |
18 |
31.5 |
|
474 684 |
18 |
19 |
11 |
15 |
225 255 |
38 |
30 |
20 |
31.5 |
|
224 |
26.5 |
16.5 |
7 |
22.5 |
305 335 |
38.8 |
31.3 |
21.7 |
31.5 |
|
334 |
26.5 |
17 |
8.5 |
22.5 |
405 475 |
48 |
32 |
22 |
41.5 |
|
474 |
26.5 |
19 |
10 |
22.5 |
Remark: Rated Voltage: 250V/275V AC |
|
564 684 |
26.5 |
19 |
10 |
22.5 |
Capacitance Tol.: ±10% (K) |
|
824 |
26.5 |
20 |
11 |
22.5 |
Leadwire Diameter: 0.8mm±0.05 |
