FUAN PROWELL MOTOR CO., LTD. >> Ml Series Single Phase Cscr Electric Motor

Ml Series Single Phase Cscr Electric Motor

Name: Ml Series Single Phase Cscr Electric Motor
Brand: china-manufacturer-directory.com
SKU: 693998935
Availability: InStock
Rating: 4.8 (116 reviews)

Supplier:	FUAN PROWELL MOTOR CO., LTD.
Price:	US $ 30/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR

Product Specifications

Prod Model:	ML
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IP:	55
Class:	F
PTC:	Opinion
Capacitor:	Two
Im:	B3/B14/B5/B35/B34
Bearing:	C&U SKF NSK
Function:	Control
Number Of Stator:	Single-Phase
Number Of Poles:	2/4/6
Brand:	Yds
Certification:	CE

Product Description

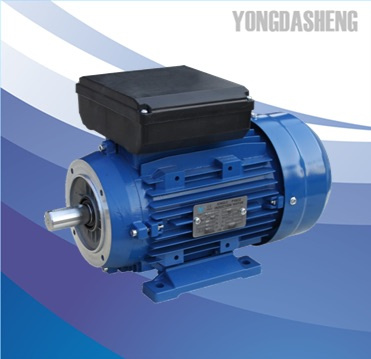

ML Series
Single-Phase Capacitor Start and
Capacitor Run Induction Motor
Aluminum Housing

ML series aluminum housing single-phase dual-capacitor asynchronous motors,with latest design in entirety, are made of selected quality materials and conform to the IEC standard.
ML motors have good performance,safety and reliable operation, the multiple of starting torque is up to 2.5.

These series motors are suitable for the occasion where the requirements of big starting torque and high over load, such as air- compressors, pumps, and many other small machines.

Model	Output		Voltage	Current	Eff	Power	Rating Torque	Starting Torque	Starting Current	Speed	Empty Loading	Min Torque	Max Torque	Start Capacitor	Run Capacitor	Weight
Model	kW	HP	(V)	(A)	%	Factor	(N.M)	Rating Torque	(A)	(r/min)	Noise (dBA)	Rating Torque	Rating Torque	(μF/V)	(μF/V)	kGS

ML63A2	0.18	0.25	230	1.38	73	0.95	0.63	1.8	8	2710	70	1.0	1.6	30μF/450V	10μF/450V	3.9
ML63B2	0.25	0.33	230	1.89	73	0.95	0.88	1.8	10	2710	70	1.0	1.6	40μF/450V	12μF/450V	4.4
ML71A2	0.37	0.5	230	2.66	73	0.95	1.27	1.8	15	2780	70	1.0	1.6	75μF/450V	12μF/450V	6.1
ML71B2	0.55	0.75	230	3.78	73	0.95	1.88	1.8	20	2790	70	1.0	1.6	100μF/450V	16μF/450V	7.0
ML80A2	0.75	1	230	4.87	73	0.95	2.56	1.8	30	2800	70	1.0	1.6	100μF/450V	20μF/450V	9.0
ML80B2	1.1	1.5	230	7.04	75	0.95	3.74	1.8	40	2810	70	1.0	1.6	150μF/450V	30μF/450V	10.3
ML90S2	1.5	2.0	230	9.48	76	0.95	5.10	1.8	55	2810	73	1.0	1.6	200μF/450V	40μF/450V	16.3
ML90L2	2.2	3.0	230	13.57	77	0.95	7.48	1.7	75	2810	73	1.0	1.6	250μF/450V	50μF/450V	16.7
ML100LA2	3.0	4.0	230	17.83	79	0.95	10.13	1.7	110	2830	78	1.0	1.6	400μF/450V	60μF/450V	25.0
ML112MA2	3.7	5.0	230	21.48	80	0.95	12.40	1.7	140	2850	78	1.0	1.6	600μF/450V	60μF/450V	33.0
ML112MB2	4.0	5.5	230	22.18	80	0.98	13.41	1.7	150	2850	78	1.0	1.6	600μF/450V	60μF/450V	34.2

ML63A4	0.12	0.15	230	1.05	69	0.92	0.85	1.7	6	1350	65	1.0	1.6	30μF/450V	10μF/450V	4.1
ML63B4	0.18	0.25	230	1.55	69	0.92	1.27	1.7	8.5	1350	65	1.0	1.6	40μF/450V	12μF/450V	4.5
ML71A4	0.25	0.33	230	2.01	69	0.92	1.73	1.7	10	1380	65	1.0	1.6	50μF/450V	12μF/450V	5.9
ML71B4	0.37	0.55	230	2.84	69	0.92	2.56	1.7	15	1380	65	1.0	1.6	75μF/450V	16μF/450V	6.9
ML80A4	0.55	0.75	230	4.03	69	0.92	3.75	1.7	20	1400	65	1.0	1.6	100μF/450V	20μF/450V	9.6
ML80B4	0.75	1.0	230	5.25	71	0.95	5.08	1.7	30	1410	65	1.0	1.6	100μF/450V	25μF/450V	10.9
ML90S4	1.1	1.5	230	7.24	72	0.95	7.45	1.7	40	1410	68	1.0	1.6	150μF/450V	35μF/450V	13.8
ML90L4	1.5	2.0	230	9.61	74	0.95	10.24	1.7	55	1410	68	1.0	1.6	200μF/450V	40μF/450V	16.7
ML100LA4	2.2	3.0	230	13.9	76	0.95	14.70	1.7	75	1430	73	1.0	1.6	300μF/450V	50μF/450V	22.8
ML100LB4	3.0	4.0	230	18.7	78	0.95	19.91	1.7	110	1440	73	1.0	1.6	500μF/450V	60μF/450V	28.7
ML112MA4	3.7	5.0	230	21.99	79	0.95	24.55	1.7	140	1440	78	1.0	1.6	600μF/450V	60μF/450V	31.0
ML112MB4	4.0	5.5	230	22.41	80	0.98	26.54	1.7	150	1440	78	1.0	1.6	600μF/450V	60μF/450V	32.8

FUAN PROWELL MOTOR Co., Ltd., a Key enterprise of electric machinery territory, assembling exploitation, manufacture, marketing into one whole was established in 1999. To remain invincible in domestic and international competitions, we have to persist in our own principle. With manpower demand, Pioneering innovation, consummate management, mutual benefit as enterprise's conception, with high quality, reasonable price, honesty and credit as our terminal goal.

With the development of business trade and great effort on research and improvement, we have formed the foundation-stone for the today's product range including three core product lines. They are specialized in producing A. C. Generators, Diesel Generator and Motors. All of them adopted the topmost quality materials, updated designs and met the IEC standard.

The marketing target of reasonable price made us owning the comprehensive recognition and reliability from the worldwide customers. Our marketing shares are covering all over the world, such as South-East Asian, European Union, Poncho, Canada, America and Hong Kong.

Since the founding of FUAN PROWELL MOTOR Co., Ltd., we have spared no effort to promote the common development and progress of business relationship for our sincere trade companions both at home and abroad.

Therefore, my esteemed Guests and Friends, We would always at your services and try our bests for your esteemed order
