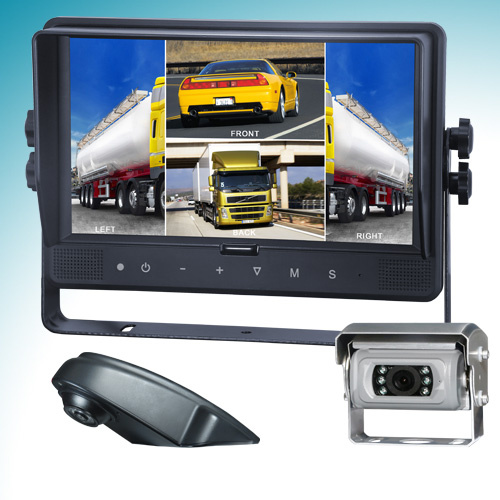

Mobile Camera System ( 9- inch quad monitor with built-in DVR ) features:
Features of 9- Inch Quad Car Monitor (MO-141D):
9-inch digital quad monitor with video recording function; The recording file stored in SD CARD; Maximum 32G
Supporting 12 hours continuous recording; Support 720X240(NTSC)/720X288(PAL) 30fps
Video file layout: AVI; Coded format: Motion JPEG
Support photographing and RTC with time preserved on the photo. Support date & time setting of the video
Touch screen: 9 inch resistive touch screen available, can recognize up, down, left, right side "swipe"; Support two-point touch to realize channel switching
Support touch button control function
Support level 6 LCD manual backlighting adjustment, level 3 automatic adjustment
Support IR remote control
System format: NTSC/PAL
Loudspeaker: Can play audio signal from camera and external input; Volume adjustable from 0 to 20
Support four cameras inputs and multi-channels output
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing; Characters of the menu will notinverse when set to mirror image.
Cameras image display mode: Single, dual, triplex, quad, PIP functions, trefoil, and Y-split image available
Five trigger lines: Once a trigger line is activated, image automatically switches to its corresponding camera; Triggerpriority is available
Auto scan: Scan channel and time can be set according to the users' demand.
Reverse warning yardstick
Automatically boot when triggered under the condition of standby, and automatically switch to trigger channel
One channel video output: Synchronal video output
One channel audio output, one channel AUX input
Operating voltage range: 10-32V
Short-circuit protection function
Applicable to vehicle and ship surveillance, indoor / outdoor security systems
Easy installation and convenient operation, with innovative functions
Features of Auto Shutter Camera (CW-656):
Extra smaller
Stainless-steel sun-shield and U-bracket
With auto shutter
Super wide angle (180° )
Automatic heating when the camera's running temperature is below 10º C(optional)
Performs in rugged conditions
Distance label selectable to be open or closed
Waterproof and weather resistant housing for outdoor use
Night vision available, day/ night sensor for automatic adjustment
IR distance: Approx. 10m
Infrared LED light: 12
Mirror/ Normal image switch (depending on the chips)
Features of Vehicle Camera (CW-664):
Camera angle is adjustable
P rating: IP69K
Wider viewing angle: 150 degrees
Working temperature: -20° C ~ 70° C
Mirror/Normal switch is optional
Reversing grid is optional
Night vision distance: 10m
With audio
