Product Specifications
Prod Model: |
MO-141, CW-669, CW-664-CS-406 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
9 Inches |
Type: |
Monitoring System |
Technology: |
Infrared |
Application: |
All-Round Monitoring |
Kind: |
Autofocus Lens |
Feature: |
Vandal-proof |
Sensor: |
CCD |
Horizontal Resolution: |
420tvl |
Product Description

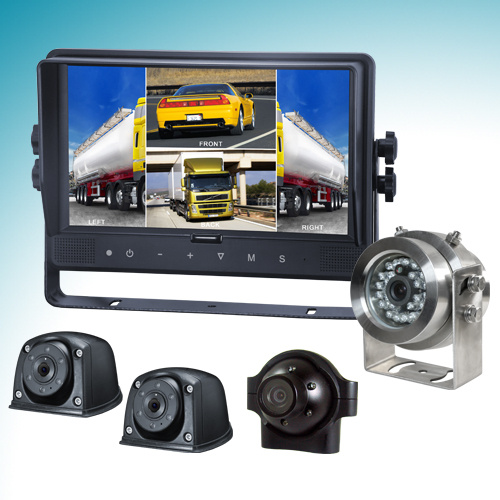

Security Camera Monitoring Systems
Touch button monitor features MO-141D:
9-inch digital quad monitor with video recording function; The recording file stored in SD CARD; Maximum 32G
Supporting 12 hours continuous recording; Support 720x240(NTSC)/720x288(PAL) 30fps
Video file layout: AVI; Coded format: Motion JPEG
Support photographing and RTC with time preserved on the photo. Support date & time setting of the video
Touch screen: 9 inch resistive touch screen available, can recognize up, down, left, right side "swipe"; Support two- point touch to realize channel switching
Support touch button control function
Support level 6 LCD manual backlighting adjustment, level 3 automatic adjustment
Support IR remote control
System format: NTSC/PAL
Loudspeaker: Can play audio signal from camera and external input; Volume adjustable from 0 to 20
Support four cameras inputs and multi-channels output
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing; Characters of the menu will not inverse when set to mirror image.
Cameras image display mode: Single, dual, triplex, quad, PIP functions, trefoil, and Y-split image available
Five trigger lines: Once a trigger line is activated, image automatically switches to its corresponding camera; Trigger priority is available
Auto scan: Scan channel and time can be set according to the users' demand.
Reverse warning yardstick
Automatically boot when triggered under the condition of standby, and automatically switch to trigger channel
One channel video output: Synchronal video output
One channel audio output, one channel AUX input
Operating voltage range: 10-32V
Short-circuit protection function
Applicable to vehicle and ship surveillance, indoor / outdoor security systems
Easy installation and convenient operation, with innovative functions
Mobile camera features CS-406:
Flexible installation: Can be mounted on rear, front, or either side of vehicles
Convenient angle adjustment
Waterproof, shatterproof protection level equals to IP69K.
Super wide viewing angle(150° )
Performs in rugged conditions. Operating temperature: -20º C +70º C
Mirror / Normal image Adjustment (depending on the chips)
Distance label selectable to be open or closed
Night vision available
IR distance: 5m
Audio available
CW-644 Features:
Compact profile
Waterproof and vandalproof
Convenient angle adjustment
Infrared LED light: 5
IR Distance: 5 m
High resolution
Can be mounted on rear, front, or either side of vehicles
Anti-explosion CW-669 Features:
304 stainless steel molded in integral with polished finish
Anti-explosion, waterproof, dustproof, anti-shock, small size
Installation angle adjustable
Built-in 15-meter infrared lamp for night
Mainly used in inflammable and explosive workplace and in transport vehicles for inflammables
And explosives such as oil tank truck and gas tank truck etc.
CW-669 Image Device | 1/3" SONY EXview HAD CCD II |
TV System | PAL | NTSC |
Effective Pixels | 976(H)*582(V) | 976(H)*494(V) |
Sensing Area | 5.58mm×4.67mm |
Scanning System | 2:1 Interlace |
Sync. System | Internal |
Resolution | 700TV Lines |
WDR | YES |
ATR | YES |
2D noise reduction | YES |
Digital demist process | YES |
Privacy mask | YES |
Face detection | YES |
Motion detection | YES |
HLR(high light reduction ) | YES |
OSD | supports 8 Languages |
Horizontal Sync Frequency | 15.625 kHz | 15.734 kHz |
Vertical Sync Frequency | 50 Hz | 60 Hz |
Video Output | 1.0Vp-p, 75Ohm |
Gamma Consumption | 0.45 |
AGC | Auto |
S/N Ratio | Better than 48dB |
White Balance | Auto |
Electronic Shutter | 1/60(NTSC)/1/50(PAL)~1/100,000 Seconds |
BLC | Auto |
Storage Temperature | –50~ 95, RH95%MAX. |
Operating Temperature | –30~85 |
Minimum Illumination | 0 Lux |
Power Supply | DC12V |
Night vision distance | 8~10m |
Anti-hazard classification | Exd II CT6 |
Waterproof rating | IP69K |
Image mode | Normal |
Viewing Angle | 120° 92° 69° |
Material quality | 304 Stainless steel |
