Mobile Crusher Stone Sand Conveyor Reducer Smsr C-40 Ratio 13-1 with Torque Arm

Name: Mobile Crusher Stone Sand Conveyor Reducer Smsr C-40 Ratio 13-1 with Torque Arm
Brand: china-manufacturer-directory.com
SKU: 735330825
Availability: InStock
Rating: 4.3 (123 reviews)

Supplier:	Zhejiang Hengfengtai Reducer Mfg. Co., Ltd.
Price:	US $ 300-2600USD
Min Order:	5PCS
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	Smsr C-40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gear Arrangement:	Overhang Reducer
Output Torque:	180nm-17000 N.M
Rated Power:	0.92-226 Kw
Input Speed:	500-1400 Rpm
Output Speed:	15.1-280 Rpm
Color:	Ral 5010& 7031& 7040
Type:	Circular Gear
Manufacturing Method:	Cast Gear
Toothed Portion Shape:	Bevel Wheel

Product Description

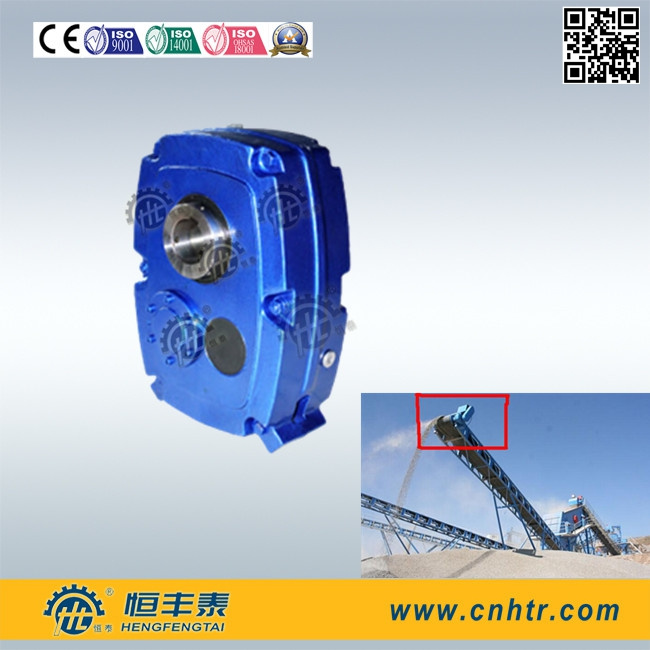

Mobile Crusher Stone Sand Conveyor Reducer Smsr C-40 Ratio 13-1 With Torque Arm

Sizes: The "HXGF" Speed Reducers Are Manufactured In Different 8 Sizes And Designated By The Letter "B" To "J". (B- C – D – E – F – G - H -J)
Ratios: These 8 Sizes May Have Nominal Ratios 05:1, 13:1, 20:1.

Your benefits:
·          Includes complete torque arm assembly
·          Interchangeable with most other manufacturers
·          Production line manufacturing guarantees tolerances and consistent quality.
·          Gears produced on German manufactured hobbing centres to achieve the highest quality helical gear components.
·          Pinions; 8620 steel
·          Gears; 20CrMnTi steel
·          All gears are ground
·          Final heat treatment includes gas carburising to a depth of 1mm, then grinding to ISO class 6.
·          Castings crack tested
·          All units test run prior to final quality control checks

OUTPUT RPM	B5	C5	D5	E5	F5	G5	H5	J5
50	1.35	2.50	3.85	5.55	8.30	12.10	19.30	31.50
100	2.69	4.60	6.30	11.20	16.50	25.20	39.00	61.00
150	3.60	5.70	8.90	14..00	20.00	35.00	50.40	78.00
200	4.30	6.70	10.50	16.60	24.00	40.00	60.00	93.00
250	4.60	7.70	12.00	18.00	27.50	46.00	68.00	107.0
OUTPUT RPM	B13 B20	C13 C20	D13 D20	E13 E20	F13 F20	G13 G20	H13 H20	J13 J20
10	0.29	0.50	0.80	1.30	1.90	3.30	4.70	7.45
20	0.60	1.10	1.70	2.50	4.10	7.00	10.00	15.80
30	0.80	1.70	2.60	4.20	6.20	10.50	15.00	24.00
40	1.15	2.20	3.50	5.50	8.10	14.00	20.00	31.00
50	1.40	2.50	4.00	6.30	9.40	16.00	23.00	36.00
60	1.70	3.00	4.70	7.40	11.10	19.00	27.00	42.5
70	1.90	3.30	5.20	8.25	12.10	21.00	30.00	46.00
80	2.20	3.90	6.15	9.65	14.20	24.50	35.00	54.00
90	2.40	4.40	6.80	10.70	15.70	27.00	39.00	60.00
100	2.70	4.60	7.20	11.30	16.60	28.50	41.00	63.50
TORQUE AT 10RPM in NM	275	510	810	1270	1865	3230	4650	7100
TORQUE AT 70 RPM in NM	260	420	740	1120	1790	2950	4550	6600

Machine type	Industries	Application example
Conveyors	Sand& Gravel Animal Feeds Water Treatment Agriculture Mining Quarrying Baggage Handling Bulk Handling Port Authorities Post& Parcel Grain Dryers	Head drum drive for screen feeder Main drive on an inclined Basalt conveyor Ship loading elevator Main drive to screw Overland bulk conveyor Main drive for transporting animal foods Airport baggage handling conveyors
Mixers& Mills	Animal Feeds Food Industry Agriculture Petrochemical Paint Process Industries Agitator Aerators	Biscuit Dough Mixer Main Drive to animal feed mill Main Drive for Asphalt Agitator Paddle Drive on animal Feed Processing Plant
Other Applications	Cranes& Hoists Winches Tanning& Processing Textile Machinery Laundry machines Machine Tools, Shears, ect.	Reversing Duty on an Industrial Washing Machine Container Lifting equipment Driven by an Air Motor on an Under Water Winch System Wind Turbine Drive-used as Speed Increase Drive to Generate Electricity

Hengfengtai Gearbox Reducer MFG Co., Ltd founded in 1991 with 400 employees occupy 50000square meters factory.

1. Company Profile

Hengfentai was established in 1991, with the development of more than 20 years, we have accomplished the following achievements:

R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.

Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.

Turnover of last year: 60m USD

2. Technology

Hengfengtai is certified State High-tech Enterprise

Enterprise Technique Center of Zhejiang province

Applying ERP information management, CAD, PRO/E, UG, CFD etc advanced software are widely used in drawing craft, and PDM for technique files management to keep the designing safe, high efficiency and accuracy.

Good long-term relationship with Zhejiang University, Shenyang aluminum & magnesium Design Institute, and Zhengzhou Light Metal Research Institute etc.

3. Manufacture capacity

350 personnel in Production Department, among them, 5 senior technicians, 10 junior technicians, and 82 have professional operation certificate.

2 manufacture plants with area more than 50000 square meters.

More than 300sets of advanced imported equipments: German CNC, Hobbing Machine, Grinding Machine, CNC plane mill, CNC boring machine, and CNC lathe machine etc.

4. Quality Control System

ISO 9001-2000 Certificate

ISO 14001 Certificate

GB/T 28000 Certificate

CMM Inspection on each batch of gears

Gear Inspection Center

Material Inspection Lab

Trial Run Inspection

Leakage Inspection

And etc

5. Marketing Network

10 offices and branches at home and abroad.

50 sales manager service for domestic and abroad market.

Depends on the quality products and reliable services, 10, 000 customers at home and abroad have approved Hengfengtai products and brand meaning, established steady foundation with 5000 strength-oriented enterprises, products have exported to at least 30 different countries in the world from Asia, Europe and Africa.
