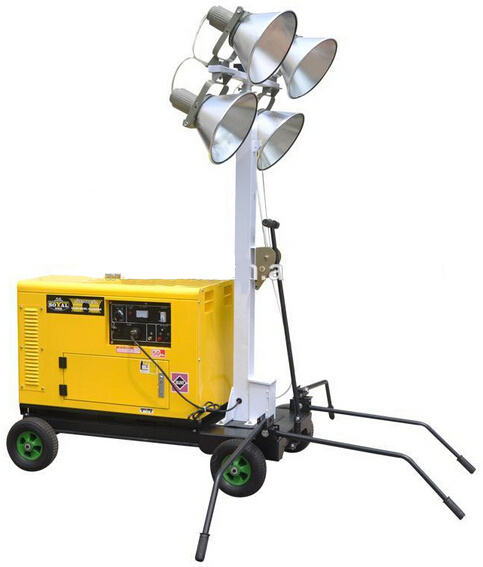

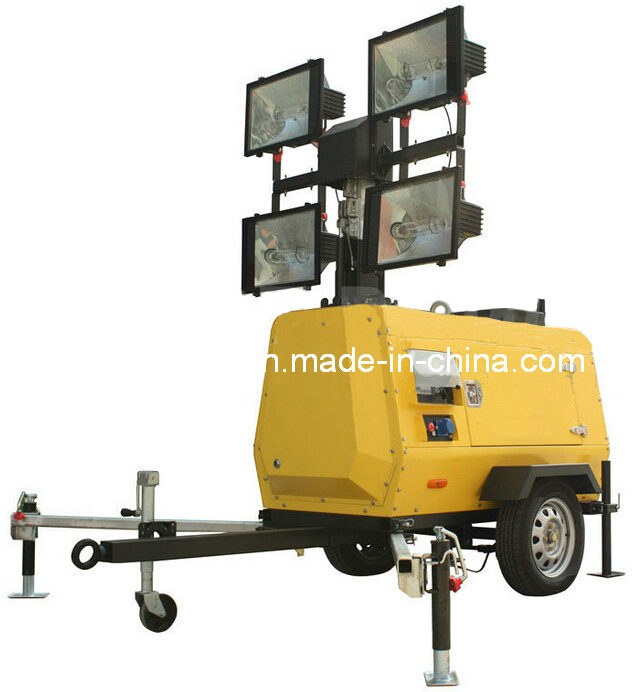

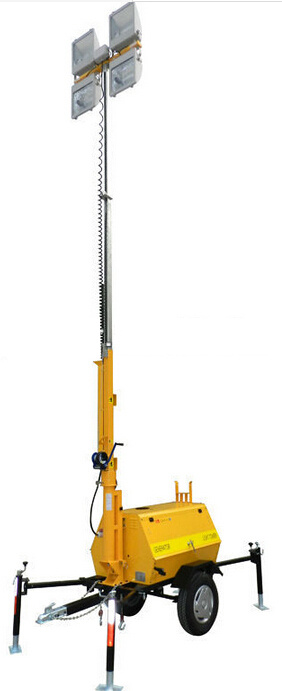

Mobile Light Tower with Kubota Engine (LDG-RP6800)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
LDG-RP6800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mast: |
8 M |
| Elevation: |
Hydraulic |
| Turning Angle: |
358 Degrees |
| Stage: |
6 |
| Voltage: |
230V |
| Battery Type: |
Button |
| Material: |
Aluminium Alloy |
| IP Rating: |
IP65 |
| Bulb Type: |
Metal Halide Light |
| Usage: |
Lighting |
Product Description
Kubota Mobile light tower product description
- Reliable power output from branded engine & alternator
- Maximum extension 9M in height with 8 sections telescoping mast
- 4x1000W lamps
- With 120L fuel tank to last 85/68 continue running hours
- Rotate the galvanized mast within the scope of 358° manually
|
MOBILE LIGHT TOWER |
|
Diesel Light Tower Powered by Japan Kubota Engine |
|
Technical specifications |
|
Mast |
|
Maximum height of mast |
8m(Hydraulic) |
|
Elevation |
Hydraulic |
|
Raising/lowering mast |
Button(Hydraulic) |
|
Turning angle |
358 degrees |
|
Stage |
6 |
|
Lamps |
|
Total power of lamps |
4x1,000Watts |
|
Type of lamp |
Metal halide lamp |
|
Light capacity |
4x88,000lumen |
|
Voltages |
230 Volts |
|
Frequency |
50Hz / 60Hz |
|
Lifetime of lamp |
5,000hours |
|
Working temperature |
≤ 85 ° C |
|
Protection grade |
IP54 |
|
Characteristics of generator set |
|
Model |
RD-10K |
|
Generator set Prime power |
6.7kw/50Hz 8.4kw/60Hz |
|
Engine model |
Japan Kubota D1105-BG |
|
Intake system |
Natural Aspiration |
|
Type |
vertical 4-cycle liquid cooled |
|
No. of cylinders |
3 |
|
Standby power |
9.5kw/50Hz;11.5kw/60hz |
|
Alternator model |
STAMFORD PI 044F |
|
Type |
Brushless ,self-excitation |
|
Voltage regulation |
Automatic |
|
Alternator Prime power |
6.7kw/50Hz 8.4kw/60Hz |
|
Voltages |
230volts |
|
Frequency |
50Hz |
|
Fuel tank capacity |
100L |
|
Fuel consumption at 100% load |
2.0L/H |
|
Max continuous running time |
50Hours |
|
Trailer Type |
|
Road trailer with hitch ball |
|
Dimension (LXWXH) |
|
Retracted Dimension |
4400x1350x1930 |
