Product Specifications
| Prod Model: |
GT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Mine Site, Mining Industry |
| Usage: |
Sand Ore Washing & Screening |
| Capacity: |
9-220t/H |
| Screen Size: |
3-10mm |
| Feeding Size: |
-100mm |
| Weight: |
2000-4800kg |
| Power: |
3-11kw |
| Customer Service: |
for The Whole Life Time |
| Warranty: |
1 Year |
| Color: |
as Per Customer's Request |
| Type: |
Mineral Processing & Screening Equipment |
Product Description
Company Brief
Our company is specializing in manufacturing mining equipment, designing processing flow sheet, installing and testing equipment as well as providing training course for our customers. Now our products have been used widely for mining companies in China, and aboard such as India, Indonesia, Malaysia, Philippines, South Africa, Sudan, Vietnam, Ghana, etc.
Features
· Configured for economical & efficient classification, Screening and grading
· Heavy duty trommel drum with lifters at the front to facilitate material break up
· Screen replaceable for different mesh sizes
· Multiple screen size
· Easily changed screen plates
· Largest processing capacity in the industry
· Unique screen design, result in higher capacities, longer screen life and no material clogging
· Heavy duty feed hopper and extension
· Discharge chute
· Gear drive mechanism
· Variable speed drive mechanism
Descriptions

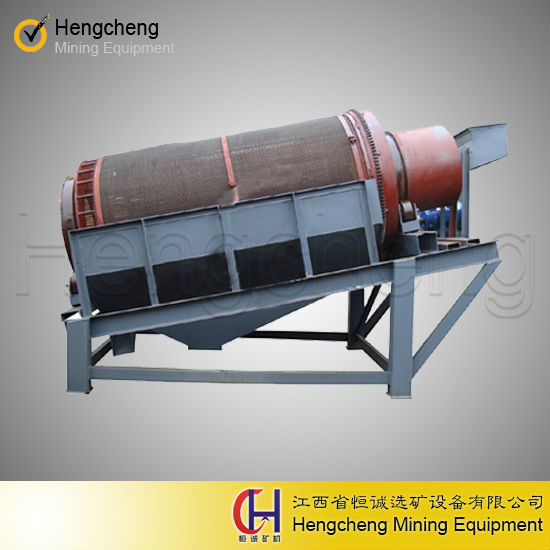

Gold ore washing plant trommel screen machine, Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
Subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase
Product quality, while allowing rapid and large volume processing. Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower
Operating costs and lower maintenance. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal
Concentrator, spirals, jigs etct.
Model
|
Drum Dia. X length (m)
|
The biggest size of washing (mm)
|
Capacity t/h
|
Screen size (mm)
|
Rotate speed
(r/min)
|
Power
(kw)
|
Weight
(kg)
|
GT0815
|
Φ0.8×1.5
|
70
|
9~25
|
3 ~ 10
|
15
|
3.0
|
2000
|
GT0820
|
Φ0.8×2.0
|
70
|
11~30
|
15
|
4.0
|
2100
|
GT1015
|
Φ1.0×1.5
|
80
|
12~35
|
14
|
4.0
|
2200
|
GT1020
|
Φ1.0×2.0
|
80
|
20~55
|
14
|
5.5
|
2300
|
GT1225
|
Φ1.25×2.5
|
100
|
30~85
|
13
|
5.5
|
2800
|
GT1230
|
Φ1.25×3.0
|
100
|
36~100
|
13
|
7.5
|
3100
|
GT1530
|
Φ1.5×3.0
|
100
|
50~150
|
12
|
7.5
|
4200
|
GT1545
|
Φ1.5×4.5
|
100
|
75~220
|
12
|
11
|
4800
|
Jiangxi Hengcheng Mining Equipemt Co., Ltd is specialized in manufacturer of various kinds of mining equipments. We has served the mineral processing industry as an excellent mineral processing equipment manufacturer for over 30 years. Our mining equipment is efficient in.
We are dedicated to providing a complete line of equipments including shaking table, spiral separator, flotation machine, magnetic separator, grinding mill, and so on. We are involved in the range of mineral beneficiation services including mining, flexibility experiment, process design, installation and commissioning, technical consulting, as well as staff training. Our proven technologies and experience permit us to provide our customers with the world's most competitive beneficiation plant and equipments. We are also able to provide the latest innovations through strategic cooperation with Metallurgical Design & Research Institutes, Colleges and Universities.
We are located in Shicheng County, which is convenient to Ganzhou Airport and Xiamen port. As part of plans to expand our global footprint, we are devoting our every effort to provide economically and technically perfect projects outside China. Equipment has already been installed in Indonesia, India, Pakistan, Vietnam, Mongolia, Russia, Mexico, Morocco, Tanzania, Laos and so on.
Satisfaction of the customers is eternal pursuit. We serve our customers with heart and soul and will do whatever we can do to support our customers.
