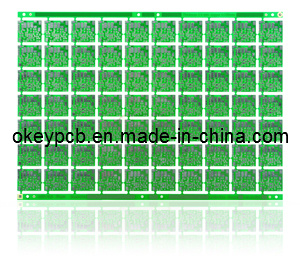

Mobile Phone PCB Circuit Board with Gold

Name: Mobile Phone PCB Circuit Board with Gold
Brand: china-manufacturer-directory.com
SKU: 726161705
Availability: InStock
Rating: 4.9 (26 reviews)

Supplier:	Shenzhen Okey Circuit Co., Ltd.
Price:	US $ 41-45/Square Meter
Min Order:	10/Square Meter
Quantity::
Trade Terms:	FOB,CIF,FCA

Product Specifications

Prod Model:	okeypcb
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green, Blue, Black, Red, Yellow etc.
Certificate:	ISO UL RoHS and Reach
Surface Finish:	Lead Free HASL
Structure:	Double-Sided Rigid PCB
Production Process:	Semi-Additive Process
Material:	Fr4

Product Description

Mobile Phone PCB Circuit Board with gold

1. PCB layer: 1-12 layers
2. PCB Certificate: ISO UL REACH and RoHS
3. FR-4 Material
4. Best price with excellent after-service
5. Reputable manufacturer

Hello, are you still looking for some manufactory to test your PCB circuit design?
We offer 3-6 workdays delivery time for make protoypes.
1. We have 10 years experience in circuit board, Printed Circuit Board field to serve your needs.
2. Competitive circuit board, Printed Circuit Board price with high quality.
3. Excellent service and prompt delivery
4. Our circuit board, Printed Circuit Board get ISO and UL Certificates and meet RoHS REACH standard
5. You can contact us at any time, we are 24-hour service for you!

NO	Item	Technical capabilities
1	Layers	1-12 layers
2	Max. Board size	2000×610mm
3	Min. board Thickness	2-layer 0.25mm
		4-layer 0.6mm
		6-layer 0.8mm
		8-layer 1.5mm
		10-layer 1.6~2.0mm
4	Min. line Width/Space	0.15mm(4-5mil)
5	Max. Copper thickness	10OZ
6	Min. S/M Pitch	0.15mm(4-5mil)
7	Min. hole size	0.2mm(8mil)
8	Hole dia. Tolerance (PTH)	±0.05mm(2mil)
9	Hole dia. Tolerance (NPTH)	+0/-0.05mm(2mil)
10	Hole position deviation	±0.05mm(2mil)
11	Outline tolerance	±0.10mm(4mil)
12	Twist & Bent	0.75%
13	Insulation Resistance	>10 12 Ω Normal
14	Electric strength	>1.3kv/mm
15	S/M abrasion	>6H
16	Thermal stress	288°C10Sec
17	Test Voltage	50-300V
18	Min. blind/buried via	0.2mm (8mil)
19	Surface Finished	HAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold
20	Materials	FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base

Shenzhen Okey Circuit Co., Ltd.Is a manufacturer specializing in the research & development, manufacture and marketing of PCB boards.We have had about 600 workers and 30 R&D technicians since our company was established in Shenzhen City of Guangdong Province in 2006.Covering an area of 10, 000 square meters, our workshops are equipped with about 60 binding machines.
"Quality first, customer highest and service thoughtful" is the management principle that we always adhere to.Our working target is "to do our best to satisfy customers".Our products have the best quality and reasonable prices.Our products sell well in South Asia, the Middle East, Europe, America, Australia, etc.
