Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Main function

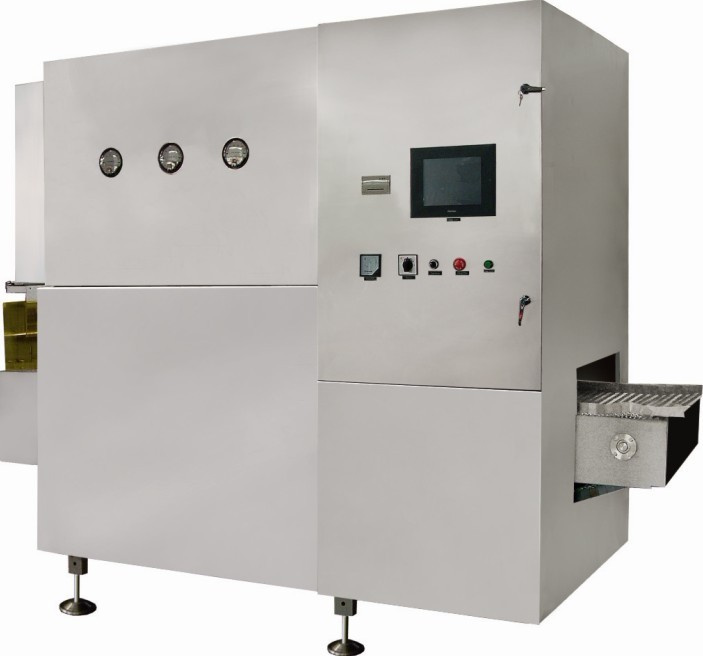

This machine is mainly used for drying &sterilizing for washed qualified vial and removing hot source and can also be used for drying and sterilizing for ampoule, oral liquid as well as glass container for pharmaceutical use.
Performance and characteristics
This machine is a unitary tunnel structure and is divided into preheating, sterilizing with high temperature, cooling. It adopts hot air laminar flow sterilizing principle to sterilize the container and remove the hot source. Apart from common cooling, the cooling part has surface cool type for selection.
The common configuration is fitted with tunnel chamber pressure-difference balanced automatic protective patent technical device and it ID also be fitted with SIP (cooling segment), CIP with net belt.
Main technical parameter
| Model(surface cool type should be added A) | Production capacity | Effective width for net belt | Heating power | Electric capacity | Net weight | Overall dimension |
| ASMR920/100 | 100-400pcs/min | 900mm | 100kw | 120kw | 8500kg | 7100*2050* 2380mm |
| ASMR920/86 | 100-400pcs/min | 900mm | 86kw | 107kw | 6800kg | 5880*2050* 2380mm |
| ASMR620/60 | 100-300pcs/min | 600mm | 60kw | 68kw | 3800kg | 4700*1560* 2380mm |
| ASMR620/43 | 100-200pcs/min | 600mm | 43kw | 52kw | 3500kg | 4080*1560* 2380mm |
| Remarks: It is suitable for vial from 1 to 50ml. The production capacity depends on the bottle size. Normally, the small size, the higher capacity. The detailed information should depend on parameter of instruction manual… |
Hunan Chinasun Pharmaceutical Machinery Co., Ltd., based on rich experience and brand-new ideals, is staffed with entrepreneur with acute insight into the market. Mr. Liu Xianghua, the founder of the enterprise, strongly realizes that it is the most important thing to provide pharmaceutical equipment of simple operation and high efficiency for pharmaceutical industry.
With the most advanced glass bottles, plastic bottles, soft bag infusion production line as well as high speed ampoule production line, we witness the greatest achievement in respect of pharmaceutical equipment. Combining efficient managing pattern, sophisticated technology with the excellent industrialized production perfectly is the key of our success.
"Providing the excellent products and services for consumers" is our constant promise. Chinasun company is located in the economic and development zone of Changsha. Hard-working talents and excellent staff lays the foundations of our enterprise, good infrastructure and production condition forges the extraordinary quality. All of these make customers satisfactory eventually.
Because medicine is a special goods, even the negligible mistake in the course of manufacturing will be disastrous to patients. The cooperative relationship of the pharmaceutical machinery factories not only concerns medical producer, but also concerns each patient. The communication and cooperation do not end with the consumer receiving the equipment. They cover the whole using term.
We try our best to do every scheme well. We provide cogent guarantee from customers with market research, scheme confirmation, product designing, machinery processing, spares parts assembling, the maintenance of the running period. We try our best to solve the most complicated problem with the simplest method. It is important to consider economic efficiency of each product while designing. We attach great importance to the cooperative relationships with customers, which became embedded in every respect of our management.
