Product Specifications
| Prod Model: |
CJX2-N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Electromagnetic Relay |
| Size: |
Miniature |
Product Description
Application

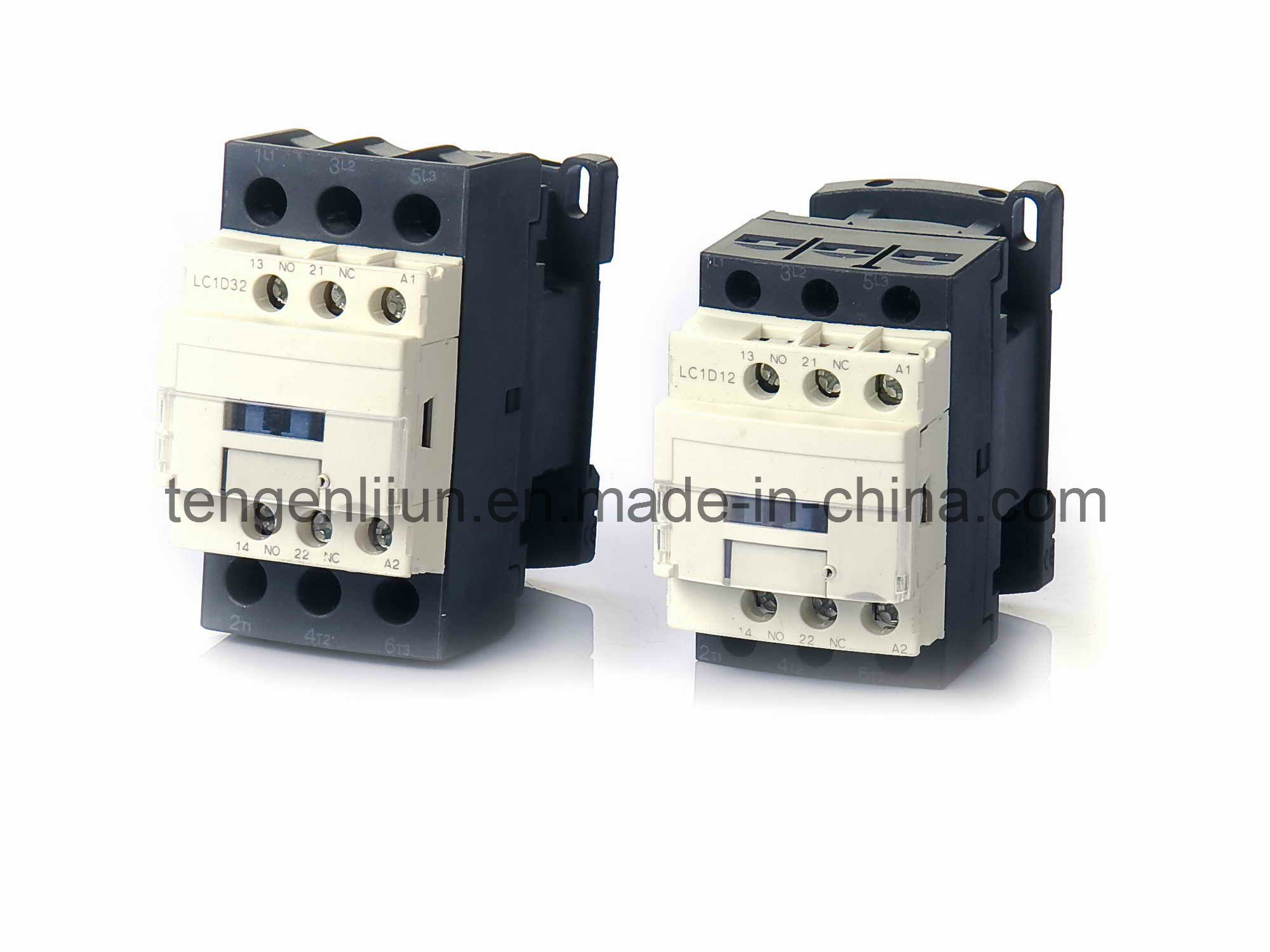

CJX2-N series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~150A under AC-3 duty. It is mainly used for making and breaking electric circuits at a long distance & for frequent starting, stopping & controlling AC Motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products comply with IEC60947-4.
Rated current
le max AC-3 (Ue≤440V) |
9A |
12A |
18A |
25A |
32A |
|
le AC-1 (0≤60iC) |
25A |
|
32A |
40A |
50A |
|
Number of poles |
3 |
3 |
4 |
3 |
3 |
4 |
3 |
Rated
operational
power in AC-3 |
220/240V |
2.2KW |
3KW |
4KW |
5.5KW |
7.5KW |
|
380/400V |
4KW |
5.5KW |
7.5KW |
11KW |
15KW |
|
415/440V |
4KW |
5.5KW |
9KW |
11KW |
15KW |
|
500V |
5.5KW |
7.5KW |
10KW |
15KW |
18.5KW |
|
660/690V |
5.5KW |
7.5KW |
10KW |
15KW |
18.5KW |
|
1000V |
D |
- |
- |
- |
- |
|
Auxiliary contacts |
range comprising up to 4 N/C or N/O instantaneous, up to 1N/O+1N/C time delay and up to 2 N/O or N/C protected contacts and 2 screen continuity terminals |
|
Compatible manual or auto thermal overload relays |
Class 10 A |
0.10~10A |
0.10~13A |
0.10~18A |
2.5~18A |
0.10~38A |
|
Class 20 |
2.5~10A |
2.5~13A |
2.5~18A |
2.5~32A |
- |
Suppressor modules
(d.c.and low consumption contactors have built-in suppression limiting diode as standard) |
Varistor |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
|
Diode |
- |
- |
--- |
- |
- |
--- |
- |
|
RC circuit |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
|
Bidirectional peak |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
|
Interfaces |
Relay |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
|
Relay+override function |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
|
Solid state |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
|
Contactor type references |
~ or 3P |
CJX2-09N |
CJX2-12N |
CJX2-18N |
CJX2-25N |
CJX2-32N |
|
~ 4 - P |
- |
CJX2-12N |
- |
CJX2-25N |
- |
|
4P |
- |
CJX2-12N |
- |
CJX2-25N |
- |
Reversing
contactor
type references |
~ 3P |
CJX2-09N |
CJX2-12N |
CJX2-18N |
CJX2-25N |
CJX2-32N |
|
3P |
CJX2-09N |
CJX2-12N |
CJX2-18N |
CJX2-25N |
CJX2-32N |
|
~ 4P |
- |
CJX2-12N |
- |
CJX2-25N |
- |
|
4P |
- |
CJX2-12N |
- |
CJX2-25N |
- |
