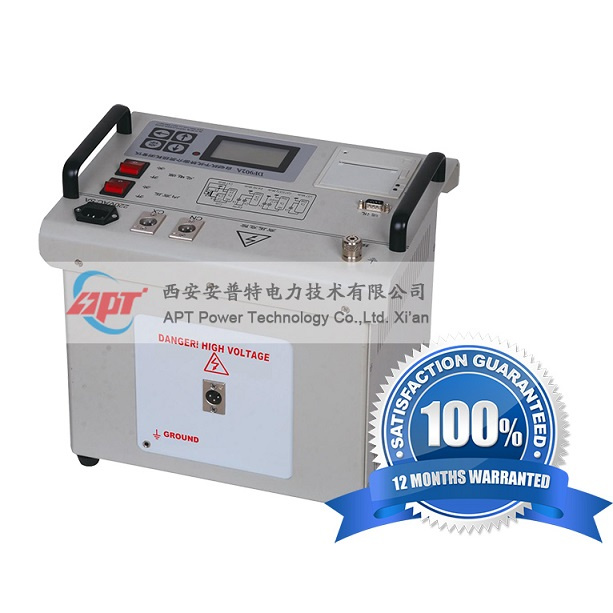

Model Df902A Automatic 12kv Capacitance & Dissipation Factor Test Set

Product Specifications

Prod Model:	DF902A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Contact: Mr Feng

Tel: 8613519187272

Web: http://www.xaapt.com

You can visit our website to get more information about us.

12KV, Fully automatic
All-in-One, free software
High noise suppression
High Accuracy
Designed for various work environments
Ultra long life cycle
36-month product warranty


Description:
Model DF902A Automatic 12kV Capacitance & Dissipation Factor Test Set is designed to measure dissipation( Dielectric Loss factor/DF/tgδ ) or power factor(PF/cosφ ) in heavy electromagnetic interference environment such as in power plants or substations.
Its main specimens: Power transformer, Distribution transformer, Instrument transformer, Bushings, circuit breakers, Surge arrestors, capacitors, Motors and Generators.
Its test capabilities: Power factor(PF/cosφ ), Dielectric Loss factor/DF/tgδ , Capacitance.

Product Features:
Fully automatic, easy to use;
All-in-one Structure, Lightweight, rugged & compact, true portability
High noise suppression based on the frequency conversion and digital filter technique, its test accuracy can be ensured even the ratio of interference current to specimen current is 2: 1(200%).
High speed A/D converters, processed by a DSP. Self-calibrating, accuracy standard capacitor, ensure Model DF902A high accuracy
l All the input resistance is less than 2 Ohm, the attached capacitance of connection cable is negligible
Designed for various work environments, in the field, in the laboratory, in a test van;
Protections: Output protection, input protection, grounded protection, fault protection
Model DF902A has multiple functions: UST / GST /GSTg, all these functions with its main unit
Using an external high voltage power supplies over 12kV or 5A
100 groups of data storage. RS232 is available; Micro-Printer inside
Ultra long life cycle, average 10 years
Multi Language Version available, English, French and Russian


Specifications
Accuracy:
Cx ± (reading× 1%+1pF)
DF tgδ ± (reading× 1%+0.00040)
PF cosφ ± (reading× 1%+0.00040)
Interference: Ratio of interference current to specimen current is 2: 1 ( 200% )
Capacitance Range:
Internal HV 3pF~60000pF / 10kV, 60pF~1uF/0.5kV
External HV 3pF~1.5uF/10kV
Resolution 0.001pF, 4 digitals
tgδ Range: No limit, Resolution 0.001% (C/L/R specimen is automatic recognized)
Input current range: 10μA~5A
Internal HV: 0.5~12kV / 200mA (max)
Accuracy: ± (reading× 1%+10V)
Control mode: Rise or fall smoothly
Frequency: 45Hz, 50Hz, 55Hz, 60Hz, 65Hz single frequency
45Hz/55Hz, 55Hz/65Hz, 47.5Hz/52.5Hz dual frequency
External HV: UST: 5A max, GST: 12kV/5A max, 38-72Hz
Test Time: 30s typical (may vary in different test mode)
Power Supply: 95V~130V, 180V~260V, 50Hz/60Hz
( Single phase power supply or generator )
Display: 128× 64 dot matrix
Printer: Thermal printer
Communication Port: RS-232
Operating Temperature: -10C~50C
storage Temperature: -20C~60C
Humidity: <90% non-condensing
Dimensions: 460mm(L)× 350mm(W)× 340mm(H)
Weight: Main unit: 23kg, cable: 3.5kg
Quality Assured In Factory
Well designed
Each part or component is checked carefully
-20C low temperature test,
60C high temperature test
Shock & Vibration test
Aging test
72 hours energized
21 days in natural state


Order Information
Item Art. No.
DF902A
DF902A, main unit, test cables, Additional paper roll and fuse
Lead time: 6 weeks
Warranty: 36 months
