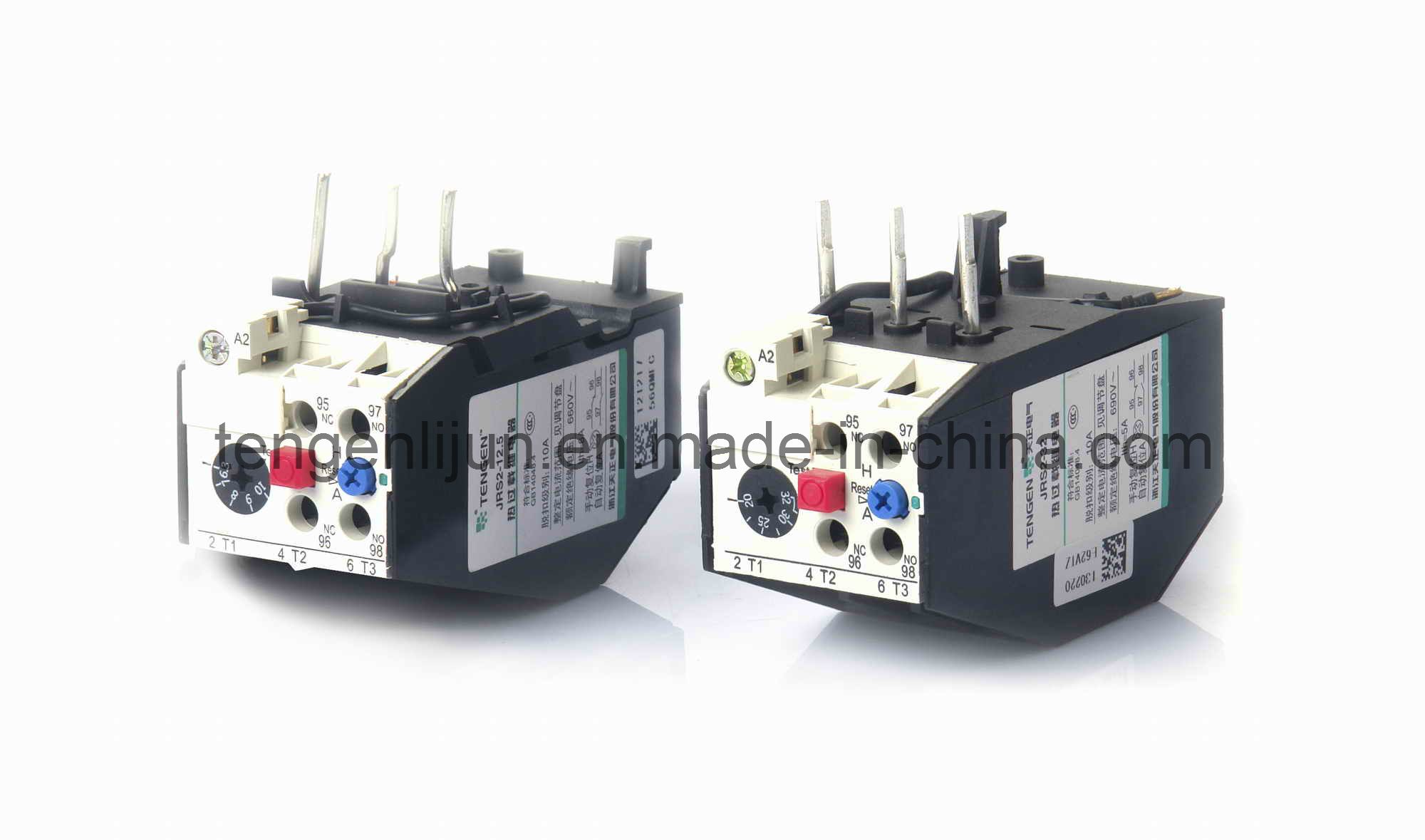

Model Jrs2 Series Thermal Overload Relay
Product Specifications
| Prod Model: |
JRS2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Specification. 3-Phase(R-S-T)Protection
. Temperature Compensation&Phase failure protection
. Standard: IEC60947-4-1
. Current setting continuously readjustable
| Type | Number | Setting range(A) | For contactor | | Type | Number | Setting range(A) | For contactor |
| JRS2-12.5/Z | 0A | 0.1~0.16 | CJX1-09
CJX1-12 | | JRS2-25/Z | 0A | 0.1~0.16 | CJX1-16
CJX1-22 |
| 0C | 0.16~0.25 | 0C | 0.16~0.25 |
| 0E | 0.25~0.4 | 0E | 0.25~0.4 |
| 0G | 0.4~0.63 | 0G | 0.4~0.63 |
| 0J | 0.63~1 | 0J | 0.63~1 |
| 0K | 0.8~1.25 | 0K | 0.8~1.25 |
| 1A | 1~1.6 | 1A | 1~1.6 |
| 1B | 1.25~2 | 1B | 1.25~2 |
| 1C | 1.6~2.5 | 1C | 1.6~2.5 |
| 1D | 2~3.2 | 1D | 2~3.2 |
| 1E | 2.5~4 | 1E | 2.5~4 |
| 1F | 3.2~5 | 1F | 3.2~5 |
| 1G | 4~6.3 | 1G | 4~6.3 |
| 1H | 5~8 | 1H | 5~8 |
| 1J | 6.3~10 | 1J | 6.3~10 |
| 1K | 8~12.5 | 1K | 8~12.5 |
| 2S | 10~14.5 | 2A | 10~16 |
| | | 2B | 12.5~20 |
| | | 2C | 16~25 |
| Type | Number | Setting range(A) | For contactor | | Type | Number | Setting range(A) | For contactor |
| JRS2-32/Z | 1G | 4~6.3 | CJX1-32 | | JRS2-63/F | 0K | 0.8~1.25 | CJX1-09~63 |
| 1J | 6.3~10 | 1A | 1~1.6 |
| 2A | 10~16 | 1B | 1.25~2 |
| 2B | 12.5~20 | 1C | 1.6~2.5 |
| 2C | 16~25 | 1D | 2~3.2 |
| 2D | 20~32 | 1E | 2.5~4 |
| 2Q | 25~36 | 1F | 3.2~5 |
| JRS2-45/Z | 0A | 0.1~0.16 | CJX1-32
CJX1-38 | 1G | 4~6.3 |
| 0C | 0.16~0.25 | 1H | 5~8 |
| 0E | 0.25~0.4 | 1J | 6.3~10 |
| 0G | 0.4~0.63 | 1K | 8~12.5 |
| 0J | 0.63~1 | 2A | 10~16 |
| 0K | 0.8~1.25 | 2B | 12.5~20 |
| 1A | 1~1.6 | 2C | 16~25 |
| 1B | 1.25~2 | 2D | 20~32 |
| 1C | 1.6~2.5 | 2E | 25~40 |
| 1D | 2~3.2 | 2M | 32~45 |
| 1E | 2.5~4 | 2T | 40~57 |
| 1F | 3.2~5 | 2P | 50~63 |
| 1G | 4~6.3 | JRS2-135 | 2H | 55~80 | CJX1-85
CJX1-110 |
| 1H | 5~8 | 2W | 63~90 |
| 1J | 6.3~10 | 2X | 80~110 |
| 1K | 8~12.5 | 3H | 90~120 |
| 2A | 10~16 | 3J | 110~135 |
| 2B | 12.5~20 | JRS2-150 | 2H | 55~80 | CJX1-140 |
| 2C | 16~25 | 2W | 63~90 |
| 2D | 20~32 | 2X | 80~110 |
| 2Q | 25~36 | 3H | 90~120 |
| 2R | 32~40 | 3J | 110~135 |
| 8M | 36~45 | 3K | 120~150 |
| JRS2-80/Z | 1G | 4~6.3 | CJX1-45
CJX1-63
CJX1-75
CJX1-85 | JRS2-180/F | 2H | 55~80 | CJX1-170CJX1-205 |
| 8A | 11~17 | 2W | 63~90 |
| 2B | 12.5~20 | 2X | 80~110 |
| 2C | 16~25 | 3H | 90~120 |
| 2D | 20~32 | 3J | 110~135 |
| 2E | 25~40 | 3K | 120~150 |
| 2F | 32~50 | 3L | 135~160 |
| 2T | 40~57 | 3M | 150~180 |
| 2P | 50~63 | JRS2-400 | 2K | 80~125 | CJX1-110~400 |
| 2V | 57~70 | 3B | 125~200 |
| 2U | 63~80 | 3C | 160~250 |
| 8W | 70~88 | 3D | 200~320 |
| JRS2-63/F | 0A | 0.1~0.16 | CJX1-09~63 | 3E | 250~400 |
| 0C | 0.16~0.25 | JRS2-630 | 3F | | CJX1-400 |
| 0E | 0.25~0.4 | 3G | |
| 0G | 0.4~0.63 | | |
| 0J | 0.63~1 | | |
![]()
Long Road Electric Co., Ltd founded in 2010, is located in the largest manufacturing base of low-voltage electrical equipment of Wenzhou China, which is called "the Electric Device Metropolis of China". Long Road Electric Co., Ltd is committed to the production, marketing and service of smart high and low voltage electrical components, smart power systems, and is one of the most dynamic companies in China's smart electrical industry. The company has strong independent innovation capabilities, has a number of core technologies, and has obtained a number of patents, it has passed IS09001: 2008, 14000, OHSAS18000 and other certifications. Among them, the Internet of Things circuit breakers and DC power distribution products for photovoltaics and communications have a leading level in the industry. They have taken the lead in passing CE, CB, IEC, SGS, Nemko, SAA, SASO, TUV, CCC, Golden Sun, VDE etc. Certification authority.
With the joint efforts of all employees and the strong support of our customers, the company has achieved considerable development, continuously increasing its market share, and has become a high-quality supplier of intelligent high and low voltage electrical appliances. The company's rich product line can provide customers with one-stop system solutions, which greatly facilitates customers' selection and application.
First-class products, derived from advanced design concepts, sophisticated production equipment, strict testing methods, perfect quality assurance system, fast information feedback and excellent after-sales service. Providing users with first-class products and services is Long Road Electric constant pursuit.
Long Road Electric Co, Ltd regards quality of products as life. The products sells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa, Nigeria etc...More than 80 countries and regions.
Long Road Electric Co. Ltd is always striving hard to provide the best services and competitve pricing to all customers.
