Model Jyg Sheet Material Coating Machine
Product Specifications
| Prod Model: |
JYG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Electrostatic Spraying Equipment |
| Certification: |
CE |
| Method Type: |
Automatic |
| Application: |
Porcelain Spraying Equipment |
Product Description

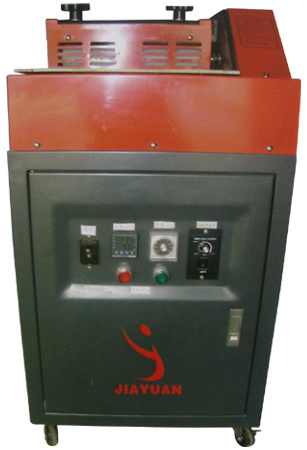

Model JYG sheet material coating Machine
Main characteristics spraying machine
1Safe design to prevent your hand be engulfed into idler wheel and avoid work piece into colloid trough
2Coating width can be designed according to the clients; Requirement, idler wheel dimension can be choose between 30-300mm
3You can adjust the speed of idler wheel according to the working requirement, both colloid trough and idler wheel can control temperature independently.
4Motor speed with stepless shift, convenient to use all materials.
Range of application
Used for shoemaking, leather goods, paper box, decorations, bulding materials, sport equipment, etc. It's replaced for self adhesive.
|
Model |
JYG |
|
Tubing capability |
3kg |
|
Installation power |
2KW |
|
Voltage |
220V |
|
Tiptop temperature |
230°C |
|
Hot-melt adhesive viscosity |
100-30000cps |
|
Rotate speed |
0-200r/min |
|
Thickness |
0.7-6mm |
|
Figure dimension |
500mm×420mm×600mm |
|
This data is measured by EVA glue with the stickness of 3000CPS. |
Ruian City Jiayuan Machinery Company is located in Zhejiang province in China.Our company are specialized in hot melt coating machine, hot melt equipment, hot melt laminating machine, hot melt extruding machine, die-cutting machine, slitting machine, etc.
Hot melt equipment is widely used in the industries of paper carton package, shoe materials, cosmetics fill, furniture agglutination, bookbinding, dynamo agglutination, filter, auto inner-decoration, adhesive tape, garments materials, advertisement materials, medical dressing, label, nonwoven and electronic, etc for sealing, profile wrapping, edgebanding, assembly, lamination, multilayer, canlking, coating.
Our products are highly appraised by customers from South Africa, Hongkong, MID-Asia, Southeast Asia, Vietnam, Thailand, Iran, Pakistan, India, Indonesia, Spain, Ukraine etc.We also sell machines to Europe, we have got CE certification.
Jiayuan Machinery Co., Ltd is a large-scale manufacturer in a variety of hot melt machinery in China.In recent years, the factory is growing stronger and stronger, introducing & absorbing the advanced technology from foreign countries based on our economic strength.High standard management, technology and equipments which enable us to provide good quality to customers all over the world
Please don't have any hesitation to contact us for more information.
We are looking forward to cooperating with friends from all around the world!
