Product Specifications
| Prod Model: |
XM101D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Output: |
5.0kw |
| Tube Voltage: |
40~120kv (Interval 1kv) |
| Tube Current: |
40~49kv 100mA 1~180mas |
| Mas: |
1.0~180 Mas (46 Steps) |
| Frequency: |
40kHz |
| Power Supply: |
220V±10% 50Hz |
| Operation Method: |
Wire /Wireless Control |
| Group: |
Middle-aged and Old |
| Type: |
X Ray Equipment |
| Classification: |
Imaging Diagnostic Equipment |
Product Description

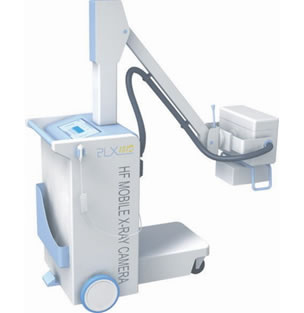

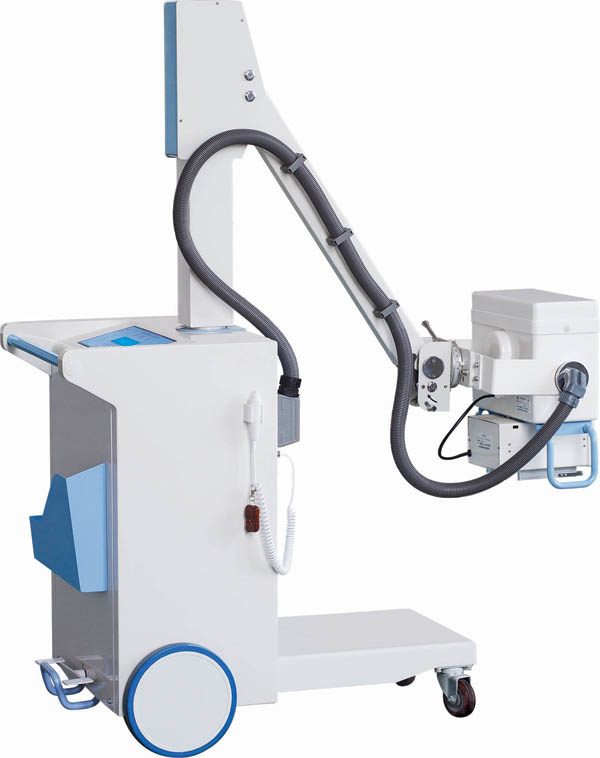

High Frequency Mobile X-ray Camera
Specifications
Power Output 5.0KW
Frequency 40kHz
X-ray Tube Fixed anode
Focus 1.5
Tube Voltage 40~120KV (interval 1KV)
Tube Current 40~49KV 100mA 1~180mAs
50~59KV 77mA 1~140mAs
60~69KV 64mA 1~125 mAs
70~79KV 55mA 1~110 mAs
80~89KV 49mA 1~100 mAs
90~99KV 44mA 1~80 mAs
100~109KV 32mA 1~63 mAs
110~120KV 25mA 1~50 mAs
MAs 1.0~180 mAs (46 steps)
Power Supply 220V± 10% 50Hz inner-resistance≤ 1.0? ?
Operation Method Wire /Wireless control
Built-in battery with a built-in back up battery to enable taking 200 to 500 pictures after power interruption.
Rotary pillar
| Power Output: | 5.0KW |
| Frequency: | 40KHz |
| X-ray Tube | Fixed anode | Focus 1.5mm |
| Tube Voltage | 40~120KV (interval 1KV) |
| Tube Current | 40~49KV 100mA 1~180 mAs |
| 50~59KV 77mA 1~140 mAs |
| 60~69KV 64mA 1~125 mAs |
| 70~79KV 55mA 1~110 mAs |
| 80~89KV 49mA 1~100 mAs |
| 90~99KV 44mA 1~80 mAs |
| 100~109KV 32mA 1~63 mAs |
| 110~120KV 25mA 1~50 mAs |
| mAs: | 1.0~180 mAs (46steps) |
| Power Supply: | 220V±10% 50Hz inner-resistance≤1.0 Ω |
| Operation Method: | Wire /Wireless control |
|
