Product Specifications
| Prod Model: |
RH232 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Rh232 |
| Display: |
Digital |
| Installation: |
Indirect Connected |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Pulse Peak |
| Type: |
Power Meter |
Product Description

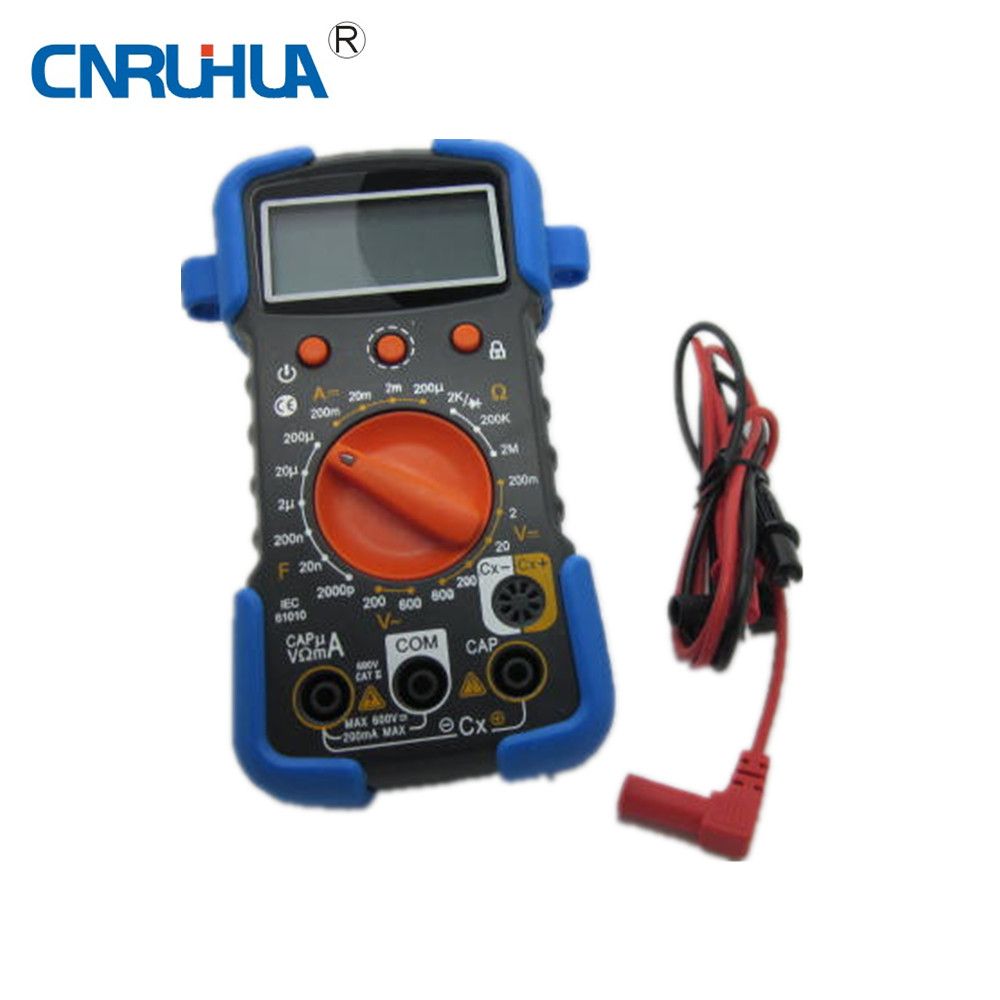

AC/DC Professional Handheld Electric Digital Multimeter
Product Description
This meter can be used in many fields such as laboratory, factory, workshop and home applications. It is a essential tool for electricians. It can measure DC/AC voltage, DC/AC current, resistance and capacitance. It also can be use for diode and continuity test.
Features:
3½ Digits, 7segment, Large LCD Display.
Max display: 1999, Automatic polarity display
All ranges fully protected.
Diode assembly test / Transistor P-N junction test/Transistor hFE test
Continuity test with buzzer sound in circuit.
Low battery voltage indication.
Automatic power off.
Data hold function.
Electric circuit protection.
Specifications:
Measuring range:
Max AC Current: 20A
Max AC Voltage range: 750V
Max DC Voltage range: 1000V
Resistance Measurement: 200 Ohm-2000M Ohm range
Scale degree&Accuracy:
Showed as in the table
Power Supply: 9V 6F22 battery(not include)
Note: In order to get more accurate result, please select matching tap positions.
Function
| Range
| Resolution
| Accuracy
|
DC Voltage
| 200mV
| 100uV
| ±(0.5%+5)
|
2000mV
| 1mV
|
20V
| 10mV
|
200V
| 100mV
|
1000V
| 5V
| ±(0.8%+2)
|
AC Voltage
| 200mV
| 100?V
| ±(1.2%+3)
|
2V
| 1mV
| ±(0.8%+3)
|
20V
| 10mV
|
200V
| 100mV
|
750V
| 1V
| ±(1.2%+3)
|
AC Current
| 20mA
| 10uA
|
±(1..2%+3)
|
200mA
| 100uA
| ±(2.0%+3)
|
20A
| 10mA
| ±(3.0%+7)
|
DC Current
| 2mA
| 1uA
| ±(1..2%+5)
|
20mA
| 10uA
|
200mA
| 100uA
|
2A
| 10mA
| ±(2.0%+5)
|
Resistance
| 200?
| 0.1?
| ±(0.8%+3)
|
2000?
| 1?
| ±(0.8%+1)
|
20K?
| 10?
|
200K?
| 100?
|
2000K?
| 1000?
|
20M?
| 10K?
| ±(1.0%+2)
|
2000M?
| 100K?
| ±(5%+10)
|
Capacitance
| 2nF
| 1pF
|
±(2.5%+5)
|
20nF
| 10pF
|
200nF
| 100pF
|
2uF
| 1nF
|
20uF
| 10nF
|
200uF
| 100nF
| ±(5%+5)
|
