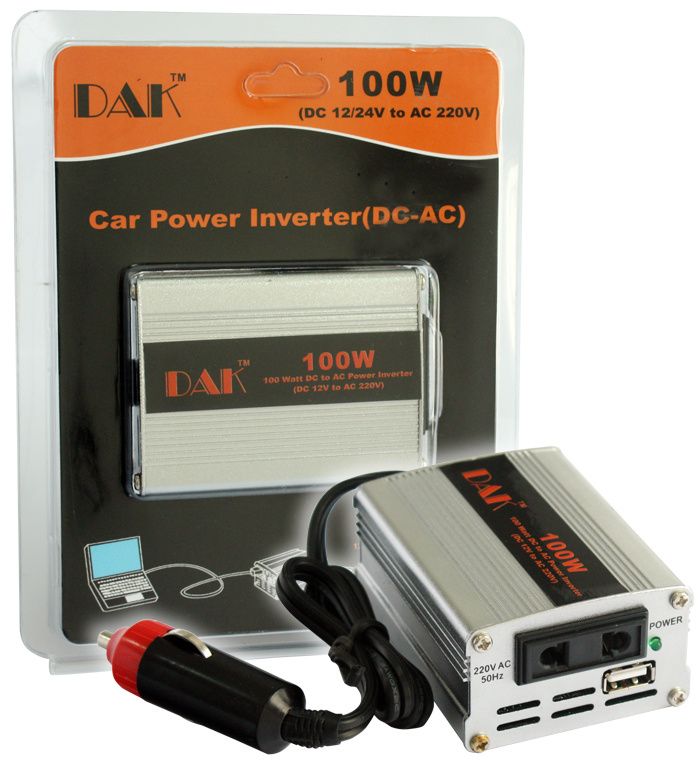

100W Modified sine wave power inverter
Power inverter, translate DC12V/24V to AC220V, mainly used in car, business travel, sailing trip, and some areas that power supply not normally.
Inverter Specification:
1. Input voltage range:
The amount of the value of DC input voltage 24V, allowing range: 15-32V
The amount of the value of DC input voltage 12V, allowing range: 7-14V
2. Peak efficiency: When the input voltage and load rating, the machine efficiency ≥ 95%
3. Battery drain with on AC load(at 12V input): <3.6W
4. Protection Features
A. Overheat protection: Inverter internal temperature rose to 75 Degree, the red light. When the temperature drops, the inverter stops meditation alarm. When the internal temperature reached 85 Degree shut out in 3 seconds, red lights. When the temperature drops, the inverter automatically start in 0.1s
B. Overload: When the input voltage rating, output current 31-35A when the yellow light within 10-20 seconds, turn off the output, the protection response time ≤ 0.1s. When the load returned to normal range, the inverter will automatically started in 0.1s
C. Output short circuit protection: When input voltage rating, load short-circuit, the output off to protect the response time ≤ 10ms, yellow directions. When short-circuit rule, the inverter will automatically start in 0.1s
D. Input voltage protection: When input voltage down to 10.5± 0.3V DC, Inverter AC output is automatically turned off, this time the red LED lights, are not allowed to restart automatically.
E. Input over-voltage protection: When input voltage is above 15.0± 0.5V DC, Inverter AC output is automatically turned off, this time the red LED lights
F. Input voltage polarity protection: Input power connection counter (-36V, 1 min), the inverter should be self-protection so as not to be damaged.
5. Electromagnetic Environmental Adaptability
A. Shell protection grade: According to QC / T 413 in 1P43 (not powered)
B. Electrostatic discharge immunity: 3 (according to 0.5Hz the discharge of the positive and negative 10 times)
C. RFEMS: 3
6. Applications:
Lighting, Laptop, Games, Portable TV, Hand-held video camera, Digital Cameras, Small music center, Printer, Portable DVD, Battery Charger, Phones, Electric shaver, Portable CD / MD machines, PDA Pocket PC, Kara OK
MP3/MP4/MP5 etc.
Packing&Carton Info
QTY 40PCS/CTN
Carton Size 49*29.5*40.5cm
|
Main Technical data |
|
Output voltage |
AC220V± 10% |
|
Output frequency |
50Hz |
|
Input voltage wave form |
modified sine wave |
|
Over voltage protection |
DC14.5-15.5V |
|
Continues AC output power |
100W |
|
Maximum AC output power |
160W |
|
Dimensions |
83*63*37mm |
|
Weight |
228g |
Guangzhou Fute Electronics Co., Ltd. is a professional manufacturers that R & D, producing and saling power converter(12V or 24V converted to 220V). Products fall into three categories: 1. Car Power Inverter (used mainly for car for business travel) 2. Vessels Power Inverter (used mainly for sailing trip) 3. Domestic and industrial power inverter ( mainly used to live and work in some areas that power supply not normally )
Our company has strong financial, large production scale, advanced production equipment and a sound management system. We always highly concerned about the quality of products and customer service quality, a high degree of emphasis on good faith, brand, high performance oriented innovation and technology upgrading. We are one of the biggest manufacturer of power inverter, over the past few years ranked the country in sales volume. Consumers and the majority of users spoke highly of our products. At the same time, our products also export to Europe and the United States, South Africa, West Africa, Southeast Asia, the Middle East, Nigeria, India, Indonesia, the Philippines, Russia, Vietnam, Thailand and other countries and regions. Our products recognized and welcome by users around the world. Exports in 2009 up to one million sets.
We will always adhere to good quality and improving customer service, insist on honesty, trust and persistent innovation and development of new products in order to enhance business competitiveness and increase the product awareness. Welcome friends all over the world to learn more about our products or visit our company site visits, business negotiations!
We will be the best attitude, best quality to communicate and cooperate with friends around the world!
