Modular AC Contactor Electrical Contactor (CJX8-170)

Name: Modular AC Contactor Electrical Contactor (CJX8-170)
Brand: china-manufacturer-directory.com
SKU: 739291925
Availability: InStock
Rating: 4.7 (62 reviews)

Supplier:	Andeli Group Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CJX8-170
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage Up To:	660V
Rated Current Up To:	370A
Theory:	Electromagnetic Relay
Size:	Miniature
Usage:	Industrial

Product Description

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Application

CJX8 series AC Contactors are mainly used in 50/60Hz electrical lines of the rated voltageup to 660V AC and rated current up to 370A, are applicable for remote making and breaking ofelectrical lines or frequent control of AC motors, having no-voltage protection. Usually, it can becombined with JR29 series thermal relay to form electromagnetic starters which have overloadand open-phase protection. It complies with IEC947-4-1.

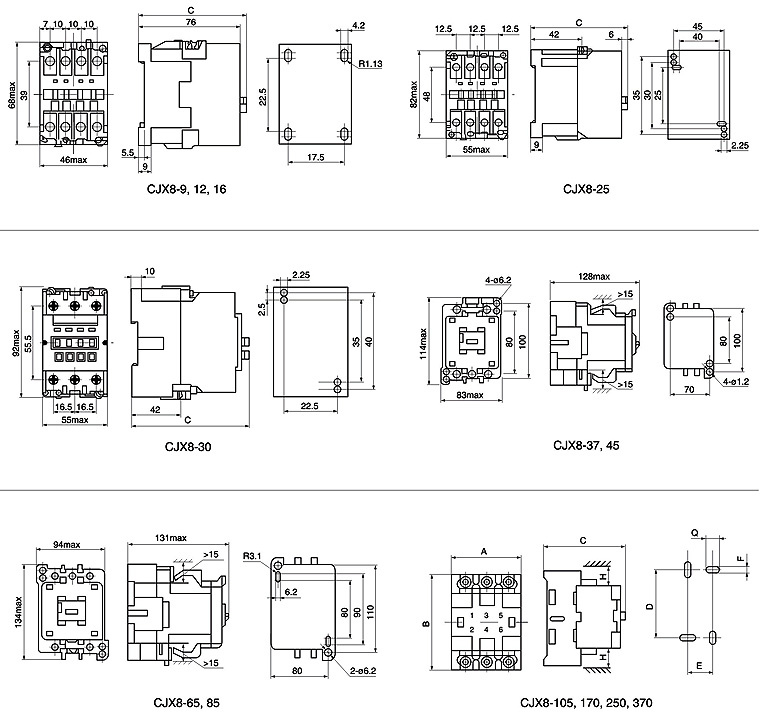

Dimension

About us

Type		CJX8-9	CJX8-12	CJX8-16	CJX8-25	CJX8-30	CJX8-37	CJX8-45
The highest controlpower (kw)	220V	2.2	3	4	6.5	9	10	13
	380V	4	5.5	7.5	11	15	18.5	22
	500V	4	5.5	7.5	11	15	18.5	22
	660V	4	5.5	5.5	11	15	18.5	22
Rated heating current Ith (A)		16	20	25	40	45	45	60
Rated working currentAC2/AC3/AC4	380V	8.5	11.5	15.5	22	30	37	44
Rated working currentAC2/AC3/AC4	660V	3.5	4.9	6.7	13	17.5	21	25
Rated holding power of aholding coil/pull-in (VA/W)		9/2.2 60/50	9/2.2 60/50	9/2.2 60/50	10/3 85/65	10/3 85/65	22/5 175/25	22/5 125

Type		CJX8-65	CJX8-85	CJX8-105	CJX8-170	CJX8-250	CJX8-370
The highest controlpower (kw)	220V	16	20	28	46	60	32
	380V	33	45	55	90	132	200
	500V	40	50	7	110	160	250
	660V	40	50	75	110	160	250
Rated heating current Ith (A)		80	100	140	230	300	400
Rated working currentAC2/AC3/AC4	380V	45	85	105	170	245	370
Rated working currentAC2/AC3/AC4	660V	3.5	55	82	118	170	268
Rated holding power of aholding coil/pull-in (VA/W)		30/8 270/130	30/8 270/130	32/9 510/280	60/15 790/460	66/16 1100/600	100/27 900/350

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
