Modular Surge Protector

Name: Modular Surge Protector
Brand: China-Manufacturer-Directory.com
SKU: 692535735
Availability: InStock
Rating: 4.3 (113 reviews)

Supplier:	Guangxi Dikai Sci & Tech Co., Ltd.
Price:	Negotiable
Min Order:	1 /Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material Of Outer Shell:	PBT/Pa-F
Colour:	Grey White
Damaged Condition:	Presenting Breaker Status
Protection Class Of Outer Shell:	IP20
Working Temperature:	-48-+85
Standard Of The Installation:	35mm Electrical Lead Rail
Quantity Of The Connnecting Terminal:	4 Pin
Flame Retardant Rating Of Outer Shell:	UL94-V0
Relative Humidity:	95%
Protection Mode:	L-PE, N-PE
Type:	Circuit Breaker
Structure:	Conventional Circuit Breaker
Installation:	Fixed

Product Description

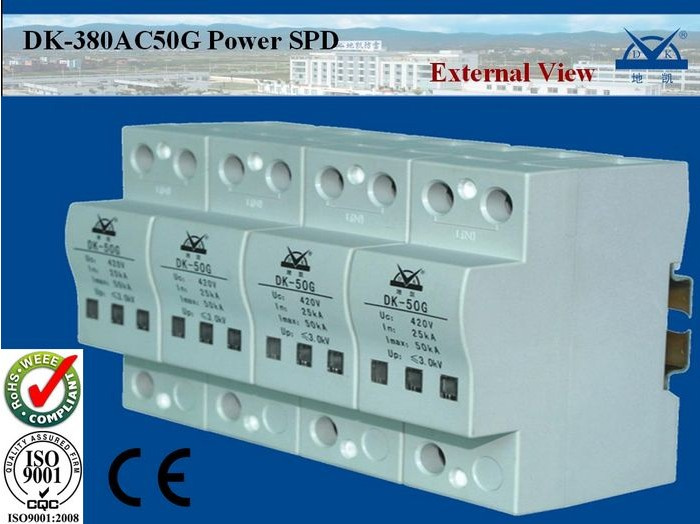

DK-380AC50G Voltage Switch-type Modular High Energy SPD is designed according to IEC standard. Striking Currents for single modular can be 50kA(10/350). This product can be used as A grade lightning protection for the power supply in the area with high risk of lightning strike.

The product is designed as modular, good seal ability, with 35mm electrical lead rail, easy installation. It takes advantage of low residual Voltage, quick responds, high discharge capacity, long life, easy maintained etc. Dikai Company can produce it according to the buyer's parameter.

Material of Outer Shell	PBT/PA-F
Protection Class of Outer Shell	IP20
Colour	Grey White
Standard of the Installation	35mm Electrical Lead Rail
Quantity of the Connnecting Terminal	4 PIN
Working Temperature	-48~85
Relative Humidity	≤ 95%
Damaged Condition	Presenting Breaker Status
Protection Mode	L-PE, N-PE
Dimension(mm)	144X90X66
Weight(kg)	0.9
Production Standard	IEC61643 and GB18802.1-2002
Lightning Protection Class	A Grade
Type of SPD	One Terminal
Type of Applicable Power Supply System	TT, TN, IT
Rated Voltage	380V AC
Maximum Continuous Running Voltage	420V AC
Active Voltage	800V DC
Rated Working Frequency	50Hz(60Hz)
Drain Currents	≤ 10µ s
Nominal Discharge Currents (10/350)µ s	25kA
Maximum Discharge Currents (10/350)µ s	50kA
Type of L(N) Connector	Screw Stationary Terminal
Specification of Screw	M5
Minimum Section Surface of Connecting Wire	BVR-25sq. mm
Type of PE Connector	Screw Stationary Terminal
Specification of Screw	M5
Minimum Section Surface of Connecting Wire	BVR-10sq. mm

Guangxi Dikai Sci & Tech Co., Ltd. Was established in June 1989, which specializes in the development and production of lightning protective products, and the research and service of lightning protective technology. It has been a top lightning protection company in China after more than 20 years of development. The company now has a top-ranking lightning protection test center, a lightning proving ground, an intellectualized building for scientific research. The products of the company have won more than 10 national patents and possess ISO 9001: 2000 certificate and CE certificate.
