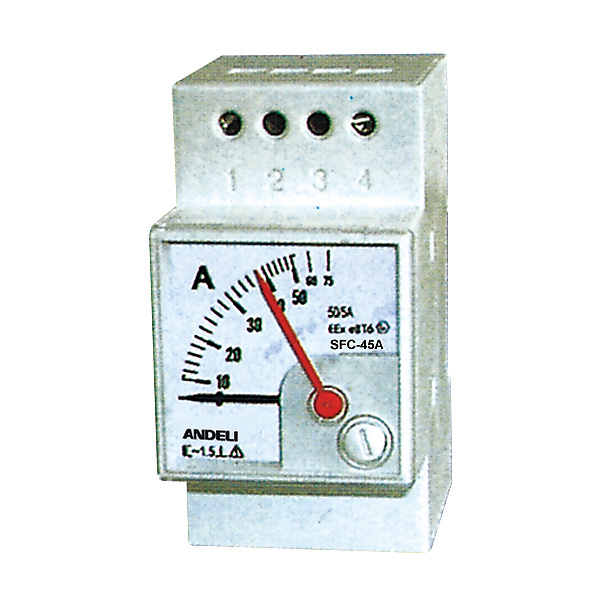

Modular Type Panel Meter

Name: Modular Type Panel Meter
Brand: China-Manufacturer-Directory.com
SKU: 766954235
Availability: InStock
Rating: 4.3 (122 reviews)

Supplier:	Elecal Electric Appliance Co., Ltd.
Price:	US $ 10/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	Indicator
Installation:	Indirect Connected
Usage:	Multi-Functional Energy Meter
Electric Equipment:	Single-phase
Theory:	Electronic Meter
Power Meter Connection:	Terminal
Measured Signal:	Continuous Wave
Type:	Power Meter

Product Description

1.Application
DTS480 series electronic three phase watt hour meter is a high technology product adopted advanced IC technology as well as SMT technology, both circuit design and components selectior are up to various working environment to guaranty that power meter can operate stecdily for a lon time, the finished meter don't need to be adjusted so that the calibration cycle is long, it extremely reduce the labor force of the electricity board for calibrationg power meters, the feature of the products are anti-thief, long life, high accuracy, high reliability, low power consumption small volume, light weight, the meter is up to the according to IEC 1036-96 and GB/T17215200 standard.

MODEL	NAME	SPECIFICATION	ACCURACY
SFC-45 SFC-100	AC AMMETER	FROM 10A,15A, 20A,30A...TO 3000A,500A	WITH EXT.C/T 1A OR 5A	CLASS 1.5
	AC AMMETER	FROM 0.1A,0.5A, 1A,5A,10A,25A...TO 80A,100A	AC DIRECT CONNECTION	CLASS 1.5
	DC AMMETER	FROM 50A,100A, 1mA,5mA...1A,5A,10A,25A,30A...TO 100	DC DIRECT CONNECTION	CLASS 1.5
	DC AMMETER	FROM 10A,15A, 20A,30A...2500A,3000A...TO 8KA,10KA	WITH EXT,SHUNT 50MV,60MV OR 75MV	CLASS 1.5
	AC VOLTMETER	FROM 30V,50V,100V...TO 300V,500V,600V	AC DIRECT CONNECTION	CLASS 1.5
	AC VOLTMETER	FROM 1KV,2KV, 5KV...TO 380KV,450KV	WITH EXT.VOLTAGE TRANSFORMER	CLASS 1.5
	DC VOLTMETER	FROM 10V,20V, 30V...TO 500V,600V,1000V	DC DIRECT CONNECTION	CLASS 1.5
	DC VOLTMETER	FROM 1KV,2KV, 5KV...TO 8KV,9KV,10KV	WITH EXT. RESISTOR	CLASS 1.5
	FREQUENCY METER	VOLTAGE:110V,220V,380V,440V	......	CLASS 1.0
	FREQUENCY METER	FREQUENCY: 45-55Hz,45-65hZ,55-65Hz,47-53Hz	......	CLASS 1.0
	POWER FACTOR METER(COS§)	VOLTAGE: 10V,220V,380V,440V CURRENT: 1A OR 5A	FOR IPHASE OR 3PHASE	CLASS 2.5
	POWER FACTOR METER(COS§)	SCALE: 0.5cap-1-0.5ind, 0.3cap-1-0.1ind, 0.7cap-1-0.2ind	FOR IPHASE OR 3PHASE	CLASS 2.5
	POWER METER(KW OR KVAR)	VOLTAGE: 110V,220V,380V,440V CURRENT: 1A OR5A	FOR IPIW,3P3W,3P4W WITH C/T OR VOLTAGE TRANSFORMER	CLASS 1.5
