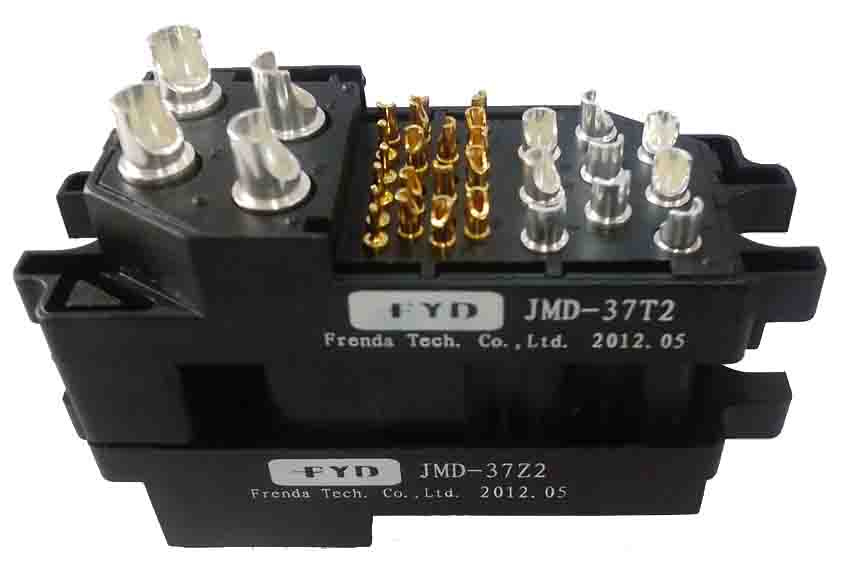

Module Power Connector 37pin
Product Specifications
| Prod Model: |
JMD-37T/Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Generally Coaxial Connector |
Product Description
JMD13 POWER CONNECTOR
The Male Connector: JMD-13T
The Female Connector: JMD-13Z
Main Technical Specifications
Insulation Resistance above 1, 000MΩ
Mechanical Life 1, 000 times
Housing Material PET G30 UL94V-0 Black
Spec. Power Contact
12# 0#
Quantity 3 10
Rated Current 35A 150A
|
Insulation Resistance |
≥ 1,000MΩ |
|
Mechanical Life |
1,000 times |
|
Housing Material |
PET G30 UL94V-0 Black |
|
Contact |
Spec. |
Signal Contact |
Power Contact |
|
#20 |
#12 |
#8 |
|
Quantity |
24 |
9 |
4 |
|
Rated Current |
5A |
35A |
75A |
|
Contact Resistance |
≤5.0mΩ |
≤1.0mΩ |
≤0.75mΩ |
|
Withstand Voltage |
1,000V |
1,500V |
1,500V |
|
Surface Material |
Gold plated over nickel |
Silver plated over nickel |
|
Terminal Style |
Crimping (Y), PCB Tail (B), Solder Cup(H) |
|
Material |
Pin and Socket |
Brass or copper |
|
Crown Spring |
Beryllium bronze |
pH: +86 15820769346
Shenzhen Frenda Tech. Co., Ltd is a manufacturer of hot-pluggable power connectors and insulator and other power supplier used connectors, is a Hi-Tech company, integrated design, production and sale as a whole.
JMD Series Power Connectors, JMT Series Power Blade Connectors, PHD Series Edge Card Connector, Pin Header and Female Header\YDL Series Circular Power Connector, Pin Contact, Socket Contact, Standoff Isolator, Pneumatic Crimping Tools and Pneumatic Socket Series. All FYD products are widely used in Large network project, Computer communication and Industry control, Electric power, Railway, Solar energy, LED, New energy electric automobile etc.
JMT Series Power Blade Connector adopts high conductivity copper alloy as contact parts, which has signal and power integration, mini-type, large current, mating gentleness, blind mating, guide mating and good reliability. It may substitute for Power Blade series connector of FCI, MULTI-BEAM XI series connector of TYCO.
PHD Series Edge Card Power Connector adopts high conductivity copper alloy as contact parts, which has signal and power integration, mini-type, large current, mating gentleness, and good reliability.
Welcome come to visit our company, we'll do best to support.
