Product Specifications
| Prod Model: |
H35Ds, H45s, H45Ds, H50Ds, H55Ds, H195s |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
4140 |
| Diiameter: |
130mm |
| Length: |
1200mm |
| Condition: |
New |
Product Description

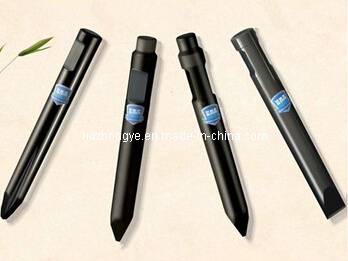

Moil point chisel, Caterpillar breaker chisel, construction machinery parts 1. Material: SCR440 or SCM440
Chisel, Caterpillar breaker chisel, construction machinery parts 2. Dimension: Depending on the specification of Tool Maker
3. Chisel type: Moil Point, Blunt Tool, Flat, wedge
4. Heat Treatment:
Austenting Temperature 810~850 (20min/inch)
Cooling Water oil cooling
Tempering 250~300 (1hr/inch)
5. Mechanical Properties:
Surface Hardness HRC51± 3
Core Hardness HRC35± 3
Tensile strength(min) 1250N/mm²
Yield point (min) 950N/mm²
Elongation 10~14%
Reduction of Area 35~40%
Impact work 23~28 ft1b
Grain size 7.0~8.0
6. Packaging Detail: Standard wooden case or as per special requirement
7. Delivery Detail: Within ten days upon receipt confirmation for the order
8. ISO and SGS certified
Krupp
HM45, HM50/60, HM60/75, HM85, HM130/135, HM170/185, HM200, HM300/301,
HM400/401, HM550, HM560CS, HM580, HM600/601, HM700
RAMMER
S21, S20/22, ROX100, S23, S25, S26/, ROX400, S29, S52/, ROX700,
S54/700, S55, S56/800, S82/1400
N. P. K
H1XA, H2XA, H3XA, H4X, H6XA, H7X, H8XA, H10XA
INDECO
MES350, HB5, MES553, MES621, MES1200, HB12, HB19, MES1800, HB27, MES2500
MONTABERT
BRH30, BRH40, BRH45, BRH60, BRH76/91, BRP100, BRP130, BRP125, BRH250,
RH501, BRH620, BRH625, BRH750, BRV32
STANLEY
MB125, MB250/350, MB550, MB656, MB800, MB1550, MB1950/1975, MB30EX, MB40EX
FURUKAWA
HB05R, HB1G, HB2G, HB3G, HB5G, HB8G, HB10G, HB15G, HB20G, HB30G, HB40G, HB50G,
TOKU/TOYO
TNB1E, TNB2E, TNB4E, TNB6E, TNB7E, TNB14E, TNB22EA, THBB101, OKADA
OUB301, OUB302, OUB303, OUB305, OUB308, OUB310, OUB312, OUB316, OUB318,
SOOSAN
SB10, SB20, SB30, SB35, SB40, SB43, SB45, SB50, SB60, SB70, SB81, SB100, SB121, SB130, SB151
KWANGLIM
SG200, SG300, KSG350, SG400, SG600, SG800, SG1200, SG1800, SG2100, SG2500,
DAEMO
DMB03, DMB04, DMB06, S150-V, S300-V, S500-V, S700-V, S900-V, S1300-V, S1800-V
|
Series |
Diameter(mm) |
Length(mm) |
|
OUB-301 |
50 |
500 |
|
OUB-302 |
61 |
550 |
|
OUB-303 |
68 |
700 |
|
OUB-304 |
74 |
700 |
|
OUB-305 |
85 |
900 |
|
OUB-308 |
110 |
1000 |
|
OUB-310 |
122 |
1100 |
|
OUB-312 |
130 |
1150 |
|
OUB-316 |
140 |
1250 |
|
OUB-318 |
150 |
1400 |
|
UB-11 |
122 |
1100 |
|
UB-14 |
136 |
1200 |
Handan Zhongye Machinery Manufacture Co., Ltd. is located in the ancient capital of Yan and Zhao, We specialized in manufacturing all kinds of the Hydraulic Breaker Spare parts, Such as Hydraulic breaker chisels, Back &front head, Thrust & Outer bushings, shell and so on.
We have perfect production equipments and test devices, using advanced international standards and adopt international advanced technology for products.
Our company is committed to development, production, sales and related technical services for products, we have cooperated with many famous corporations in domestic and abroad for long time, our products are exported to the Middle East, Europe, America and other countries and regions.
We insist on "do stronger, do bigger, do better, do longer" as the goal, will always to provide good products and satisfactory service to our new and old customers with the spirit of "unite hearts, first-class, customer first " and policy of "good quality, efficiency management, customer first, keep compliancey".
Our company attended 2014 exhibition of China international construction machinery, building material machinery, engineering vehicle and equipment. From this exhibition, we will seize this opportunity to make communication and cooperation with domestic and foreign enterprises, to help exhibitors make further understanding of our business scope, technical strength and engineering achievements, to promote our regional popularity, to build good cooperative atmospheres, to create advantage of great leap forward development by virtue of resource integration and complementary advantages with companies in the same industry.
