Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Kr |
| Model: |
Kr3000c |
| Equal: |
Molex |
| Pitch: |
3.0mm |
| Color: |
Black |
| Row: |
Single/Dual |
| Angle: |
90/180 |
| Pole: |
2p-12p/2x01p-2x12p |
| Wire Awg: |
Awg#20-#24 |
| Mode: |
Wire to Board |
| Type: |
Fiber Optic Connector |
| Gender: |
Female |
Product Description

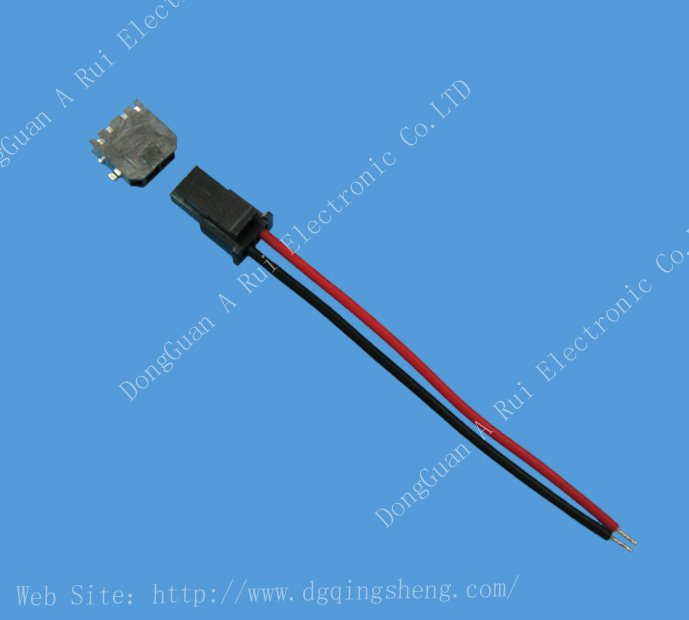

Product name: Molex43025 computer power cable
Specification:
Poles: 2P-12P/2X01P-2X12P
Current rating: 5AC, DC
Voltage rating: 250V AC, DC
Temperature range: -25° C to +85° C
Contact resistance: 20MΩ /Max
Insulation resistance: 1000M/Min
Withstand voltage: 1500V AC/minute
Applicable wire: AWG #20 to #24
Material: Housing: Nylon, UL94V
Terminal: Phosphor Bronze: Tin-Plated
Suitable: KR3000MT series Terminal
Mates with: KR3000HM series Female Housing and KR3000 series Wafer
