Product Specifications
| Prod Model: |
L932 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection Grade: |
IP54 |
| Rated Input Voltage: |
AC380/50Hz |
| Rated Output Power: |
0.75kw~15kw |
| Start Type: |
Dol |
| Certification: |
CE/ISO9001:2008 |
| Phase: |
3 Phase |
| Task: |
Program |
| Structure: |
Closed-Loop |
| Signal: |
Continuous |
| Mathematical Model: |
Linear |
Product Description

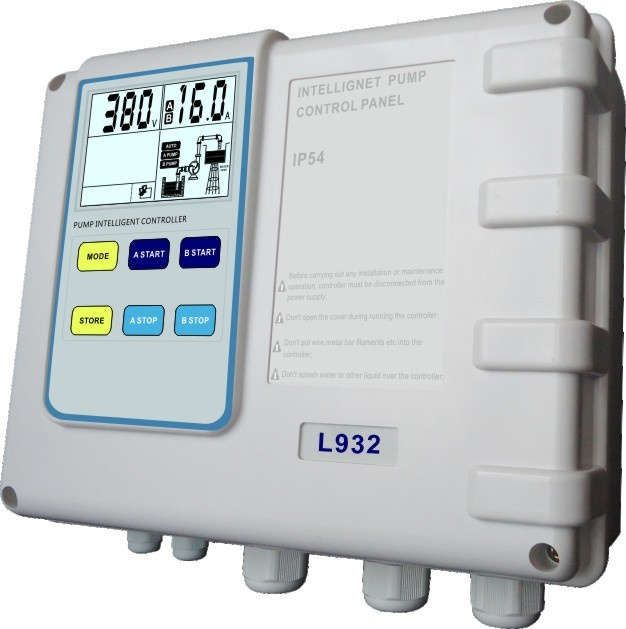

Monitoring and control pump equipment
Main spec:
Rated Input Voltage: AC380V/50HZ, Three Phase
Rated Output Power: 0.75kw-4kw(1hp-5.5hp) 5.5kw-11kw(7.5hp-15hp) 15kw(20hp)
Application:
Control&Protect three phase pump, DOL
Main features:
1. Buit in function switch for water transfer, booster and sewafe lifting (Drainage);
2. Support dual pumps alternating, switching and backup;
3. Available terminals for level sensor, float switch, pressure switch wiring;
4. Memory function when power off & recovery;
5. LCD screen displays pump running information;
6. Pump accumulative running time displaying;
7. IP54 protection Grade;
8. Present user remote monitor;
9. Auto/Manual;
10. Over load protection;
11. Under/over voltage protection;
12. Under/over voltage protection;
13. Dry run protection with sensor free;
14. Rapid cycle protection;
15. Motor stalled protection;
16. Open phase protection;
17. Pump shaft rust protection;
18. Pump last five fault record displaying;
19. Present one dry contacting point;
20. Three phase unbalance protection;
21. Phase reversal protection;
22. Pump motor winding over temperature protection.
Advantages:
1. Water pump network remote monitor;
2. Water pump GSM message remote monitor;
3. Central group control network systems;
4. Intelligent digital water pump controller with sensor free;
5. Computer chip of intelligent digital water pump control;
6. Water pump intelligent one button fast parameter calibration;
7. Water control anti-corrosion, enviromment-friendly probe;
8. Water pump shaft anti-rust function;
9. Liquid level no sensor application;
10. Win credit grade-AAA enterprise certification;
11. Win Hunan good quality and be reliable enterprise;
12. The appointed product of Hunan flood control and drought relief command office.
