Monitoring Synthetic Lightning Protection Device
Product Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

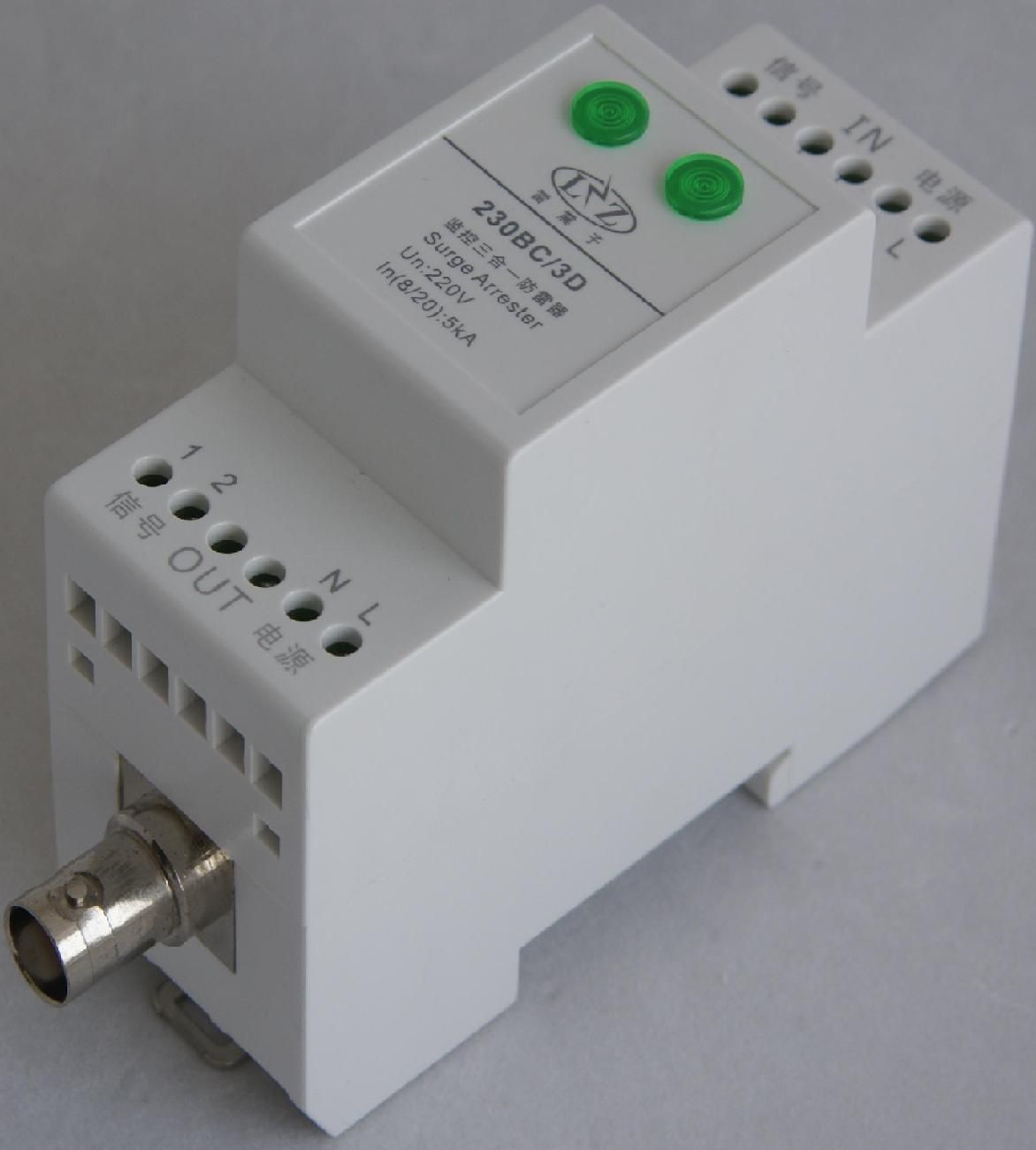

230BC-2D/3D
Application range
230BC-2D/3D series monitoring synthetic lightning protection device are applied to lightning protection of power, control signal, BNC video signal of monitoring system, with function of characteristics of low clamping voltage, quick response, etc...Which can be used to release and prevent the damage to the protected device arising from inductive lightning from power and control wire or the other surge overvoltage. So they are widely used in the field of security monitoring system, "Global E-eye" system of telecom. (option from standard IEC61643-1, IEC61643-21 and GB50343)
Main features
Modularization DIN rail design, convenient for installation and replacement.
Build-in temperature control and circuit breaking technology, strong protection ability, high reliability.
Green light on in notice window indicates normal, off indicates broken, clear and easy distinguished.
Function of multilayer protection: Power, video signal, control signal.
Build-in 4mm2 elevating earthing terminal, more reliable earthing.
Main technical data |
|
|
Function module |
Power |
Control signal |
BNC |
|
Norminal working voltage Un V |
220 ~ |
24 - |
12 |
12 |
Max. Continuous AC Voltage Uc V |
320 ~ |
36 - |
15 |
18 |
Voltage protection level Up KV |
< 1500 |
< 600 |
< 80 |
< 80 |
Norminal discharge currentIn (8/20& mu; s) kA |
5 |
5 |
5 |
5 |
Max Discharge current Imax 8/20& mu; s) kA |
10 |
10 |
-- |
-- |
Connection mode |
Wiring terminal |
Wiring terminal |
Wiring terminal |
BNC |
Transmission rate Vs(bit/s) |
-- |
-- |
2M |
16M |
Insertion loss dB |
-- |
-- |
& le; 0.5 |
& le; 0.5 |
Enclosure material |
enhanced flame retardant nylon(flame retardancy: V0) |
Cross-sectional area |
& ge; 3 mm 2 stranded/flexible |
Ordering description |
|
|
Protected items |
|
|
|
Power |
Video signal |
Control signal |
|
220VAC |
& radic; |
& radic; |
|
|
220VAC |
& radic; |
O |
|
|
24VDC |
& radic; |
& radic; |
|
|
24VDC |
& radic; |
O |
|
|
Shenzhen YWSS Technology Co., Ltd. is committed to R&D and manufacturing of Surge Protective Device (SPD), with complete and various LZZ series lightning arrestor which covering power system, control signal system, computer network system, video signal system, etc. Our products are widely applied in military, electric power, finance, telecommunication, anti-lightning damage, automotive electronics, security and other fields. with years of development in product quality and good after-sale service, we have many influential domestic customers such as China Telecom, China Mobile, China Unicom, China Post, microwave SDH truck, the banking system, Railway Bureau, the power company, road and bridge construction, medical systems, radio and television, big and small business, entertainment, residential quarters, hotels and corporate factories, under domestic marketing various requirement, we also act as the sole agent of several famous SPD industries such as ECS from U. S. with full range of lightning arrester products, meanwhile, we have a large professional engineering team to provide the engineering design, construction, crew equipment modification, site visits, application guidance and staff-training and other services, we own ourselves lightning laboratory for rigorous online testing and simulation environmental tests on all products to provide customers with complete system protection programs and engineering.
Our products `include power gap lightning protection device, lightning protection for power system class 1-4, surge protection box for power system, lightning counter, decoupler, POE network surge protection device, signal surge protection device, socket surge protection device, monitoring synthetic lighting protection device, video signal lightning protection device, ethernet surge protection device, CATV network surge protection device, 485 signal surge protection device, telephone line surge protection device, antenna feeder surge protection device, socket power surge protection device, DC power surge protection device and earth pole protection device etc. For agent part, we can provide power lightning protection device, antenna feeder surge protection device, data signal surge protection device, network surge protection device and so on.
Now we are dedicated to oversea market, with good quality and competitive price advantage, we wish to cooperate with the companies from all over the world to share our high-quality products and professional technologies by establishment of agent relationship. We will assist you to explore the market by providing product handbook and complete solutions in various language. "Quality first, customer first" is our business purposes, high-quality, high-tech productsis, highly efficient, reliable and timely service, customers' satisfacation is our eternal pursuit! A first-class supplier is our ultimate goal, waiting for your first contact and further cooperation!
