Product Specifications
| Prod Model: |
MS-2A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Green |
| Measure: |
500*600*1600 Mm |
| Splitting Force: |
12tons |
| Power Supply: |
3kw |
| Gross Weight: |
210kgs |
| Type: |
Hydraulic Cutting Machine |
| Source Voltage: |
380V |
| Application: |
Mineral Industry |
| Automation: |
Semi-automatic |
| Usage: |
Marble |
Product Description

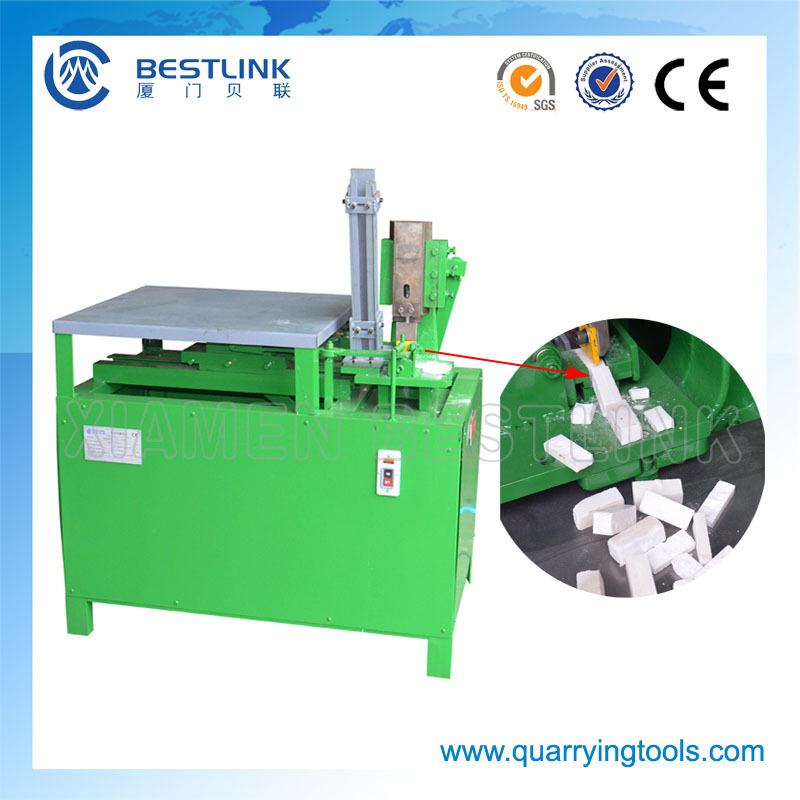

1.Mosaic stones splitting machine
2.Small strips stone cutting machine
3.electric
4.High efficiency
5.Reasonable price.
Xiamen bestlink factory co., ltd.,specializes in designing and producing stone splitting machines. Using our splitting machines you could produce a wide range of products like: Cobble stones, Paving stones, Tiles for paving and cladding, Wall stones and Kerb stones, etc. Our machines are known also as splitters, Hydraulic splitting machines, stone splitter or stone cutter (for rustic products).
| Model No | MS-02 (manual) | MS-02S (manual+stand) | MS-02E (electric) | MS-03 (manual) | MS-12(hydraulic) | MS-40(hydraulic) | MS-2A |
| Splitting Force | 2 tons | 2 tons | 2 tons | 2tons | 12 tons | 40 tons | 2 tons |
| Max Cutting Width | 240 mm | 240 mm | 240 mm | 120 mm | 240 mm | 300mm | 20mm |
| Max Cutting height | 65 mm | 65 mm | 65 mm | 30 mm | 100 mm(40mm for granite) | 130mm (80mm for granite) | 10-20mm |
| Power Supply | / | / | / | / | 3.0 kw | 5.5kw | 0.37kw |
| Oil Tank | / | / | / | / | 30 L | 60L | / |
| Overall Size | 500*400*700 mm | 1500*700*500mm | 900*400*400mm | 630*430*600CM | 500*600*1600 mm | 700*800*1700mm | 1100*650*1200mm |
| Net Weight | 70 kg | 80kg | 65 kg | 70 kg | 210 kg | 350kg | 200kg |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world NO.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
