Product Specifications
Prod Model: |
2850-1000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Products Variety: |
Toilet , Napkin Paper, Facial Tissue |
Basis Weight: |
11-23GSM |
Trim Width: |
2850mm |
Working Speed: |
1000m/Min |
Design Speed: |
1200m/Min |
Total Power: |
404kw (Forming Roll 132kw, Dryer 250kw, Reel Cyli |
Paper Thickness: |
Thin Paper |
Certification: |
UL |
Condition: |
New |
Type: |
Paper Making Machine |
Sheet Former Type: |

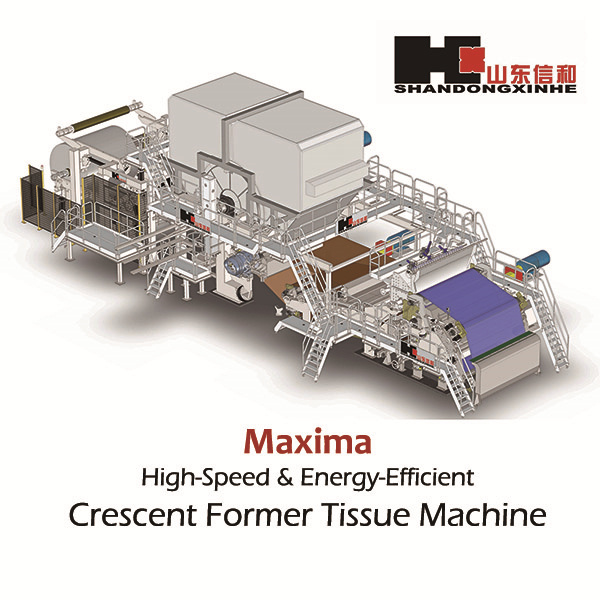

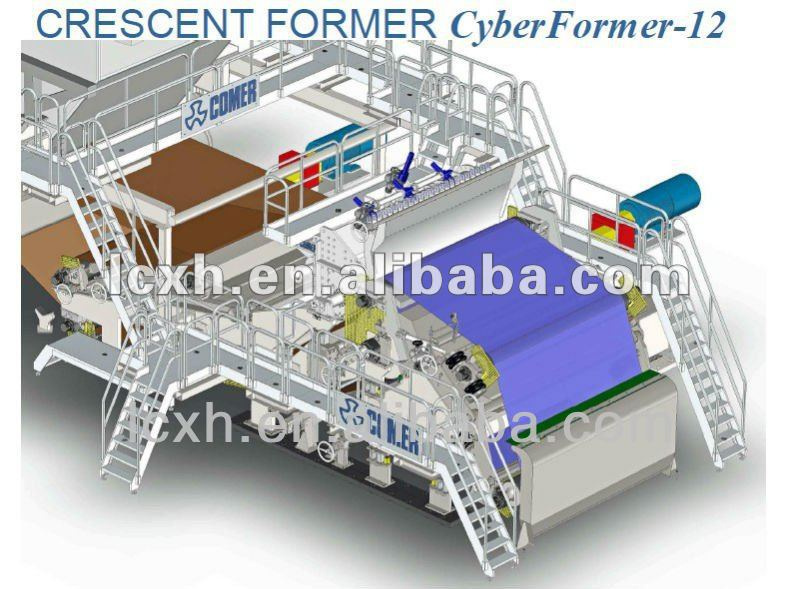

Crescent Former Tissue Machine |
Product Description
A: Technical parameter:
1.1 Products: facial tissue, toilet paper, kitchen towels, etc.
1.2 GSM range: 11 ~ 23g/m ²
1.3 Trim width: 2850mm
1.4 Maximum working speed: 1200m/min (Yankee)
1.5 Balancing speed: 1400m/min
1.6 Driving type: AC frequency sectional control
1.7 Transmission Power: 404kW (forming roll 132kW, dryer 250kW, reeling cylinder 22kW)
1.8 Maximum roll diameter: 2500mm
1.9 Wire width: 3046mm
1.10 Felt Width: 3140mm
1.11 Headbox lip width: 2946mm
1.12 Maximum capacity: 65T/D (according to press rolls 20g/m ², wrinkling 16%)B: Features of machine 1.High efficiency, low power consumption
2.Save and reduce operating costs.
3.Supplied with the accessories using first class components
4.Applied for various materials, such as virgin pulp, bamboo pulp, bagasse, straw pulp, recycled paper and de-inked pulp, etc

C: This year we will have three 2850-500 crescent former tissue paper making machine whole line from 2850-500 crescent former tissue paper making machine to Stock preparation line ( one is virgin pulp for IRAN, one is waste recycle & virgin pulp for Uzbekistan, one waste paper for Algeria ) and then Rewinder and slitting machine also with the auxiliary equipment etc.

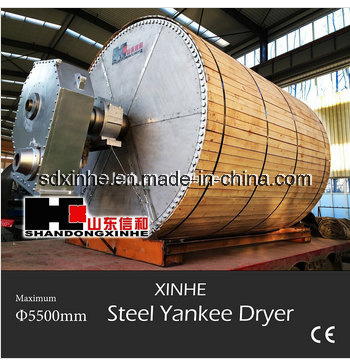

D: China biggest Steel Yankee Dryer workshop with our powerful processing equipment.
Shandong XinHe Paper-Making Engineering Co., Ltd is located in Liaocheng, west of Shandong province, which is a beautiful Water-City in the north of China. We are a professional integrated company. Main business includes paper machine manufacturing, engineering installation, commissioning and the total package of paper-making project. We own a group of excellent staff team and powerful, high-precise processing and welding equipments. Since the company was established, it has served dozens of production lines for many paper-making enterprises and enjoys a good reputation among them. A number of mills have contracted more than 10 production lines. The company is also equipped with a large number of the entire production line and assembly parts mainly exported to Southeast Asia, West Asia and South America etc.
Comer S. P. A. Was founded in 1960, is locate in Vicenza of Italy famous architecture city. It has long been engaged in mechanical pulp production line, deinked pulp production line, high-speed tissue machine, head box and designing and production of Yankee dryer. Several tissue machines in America, Brazil, Saudi Arabia etc had functioned very well, the machine speed is more than 1200m/min(basis weight 13G/m2), with low energy consumption. The finished paper has high flexibility. Comer S. P. A has first-rate design team, advanced processing equipment, pulp preparation system and pulp research lab.
Now Comer S. P. A. Authorized our company as sole agent of Crescent Tissue Machine in China. AP and South America which the paper width is between 2800-5000mm, the speed is or more than 1200-2000m/min, sell kinds of head box, steel Yankee dryer, suction touch roll, doctor and pulp-making equipments etc.
We will supply high quality product, lab service, field installation and training for all paper mills. We want to bring max profit for our customer with high quality product and low price.
