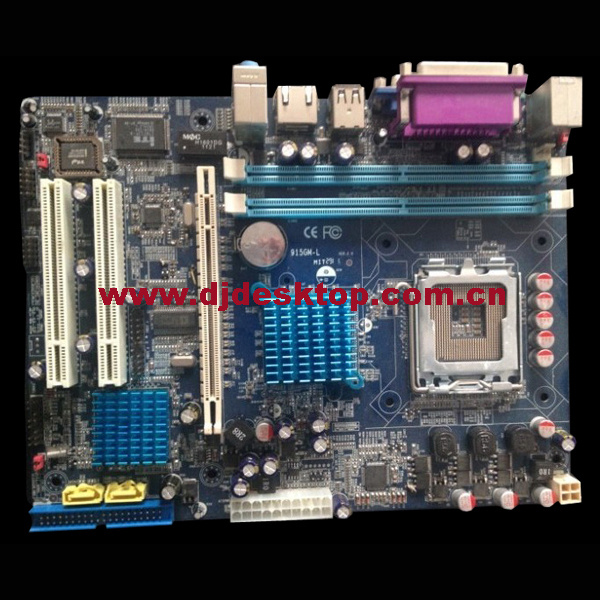

Motherboard Intel Chipset 915-775 Motherboard Support Intel Conroe-L Socket775 CPU/Intel Pentium 4 Socket775 CPU/Intel Celeron D Socket775 CPU

Product Specifications

Prod Model:	915-775
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chipset:	Intel 915+Ich6
Northbridge:	Intel 915gm Chipset
Southbridge:	Intel+Ich6
Audio:	Onboard HD 5.1_Audio
LAN:	Onboard Rt8103EL LAN Card
Shipping Time:	2-4 Working Days
Shipping Way:	DHL /UPS / FedEx
Products Logo:	for Your Optional
Place Of Origin:	Shenzhen ,China
Main Chipset:	Intel
Structure:	ATX
Memory:	DDR2
CPU Socket:	LGA 775

Product Description

Motherboard Intel Chipset 915-775 Motherboard support  Intel Conroe-L Socket775 CPU/Intel Pentium 4 Socket775 CPU/Intel Celeron D Socket775 CPU


1. Intel 915+ICH6 Chipset, LGA 775, Supports 800/533 MHz FSB.
2. Supports 2*DDR2 800/667/533 memory, Dual Channel, support up to 4GB by 2 DIMM slots.
3.2*SATA, 4*USB2.0, 1*VGA/IDE, 1*PCI Express x16, 2*PCI Express x1.
4. Realtek 8103EL 10/100M LAN Controller.

CPU
Support Intel Conroe-L Socket775 CPU/Intel Pentium 4 Socket775 CPU/ Intel Celeron D Socket775 CPU
Supports 533-800MHz FSB
Chipset
Northbridge: Intel 915GM Chipset
Southbridge: Intel+ICH6
Memory
Supports 2*DDR2 533/667/800 memory
Dual Channel architecture support up to 4GB by 2 DIMM slots
Graphics
Intel Graphics Media Accelerator 900
1* VGA port
Audio
Onboard HD 5.1_Audio
LAN
Onboard RT8103EL LAN Card
Expansion Slot
1 *PCI Express x16 slot
2 *PCI slots
I/O Connectors
1 *IDE connector
2 *SATA 300Mb/s connector
1 * front panel connector
1 * front audio connector
2 *USB 2.0/1.1 port
1 *COM port
1 * PS/2 port
1 * VGA port
1 *LPT port
1 *audio jacks
On Board Ports
24 PIN ATX POWER PORT
4 PIN ATX 12V POWER PORTS
4*USB 2.0 PORTS
1*CPU fan connector
1*F_AUDIO PORT
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
SIZE
240mm x185mm
PACKING
20PCS IN ONE CARTON

CPU

Support Intel Conroe-L Socket775 CPU/Intel Pentium 4 Socket775 CPU                       Intel Celeron D Socket775 CPU

Supports 533-800MHz FSB

Chipset

Northbridge: Intel 915GM Chipset

Southbridge: Intel+ICH6

Memory

Supports 2*DDR2 533/667/800 memory

Dual Channel architecture support up to 4GB by 2 DIMM slots

Graphics

Intel Graphics Media Accelerator 900

1* VGA port

Audio

Onboard HD 5.1_Audio

LAN

Onboard RT8103EL LAN Card

Expansion Slot

1 *PCI Express x16 slot

2 *PCI slots

I/O Connectors

1 *IDE connector

2 *SATA 300Mb/s connector

1 * front panel connector

1 * front audio connector

2 *USB 2.0/1.1 port

1 *COM port

1 * PS/2 port

1 * VGA port

1 *LPT port

1 *audio jacks

On Board Ports

24 PIN ATX POWER PORT

4 PIN ATX 12V POWER PORTS

4*USB 2.0 PORTS

1*CPU fan connector

1*F_AUDIO PORT

Accessories

CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE.

SIZE

240mm x185mm

PACKING

20PCS IN ONE CARTON
