Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

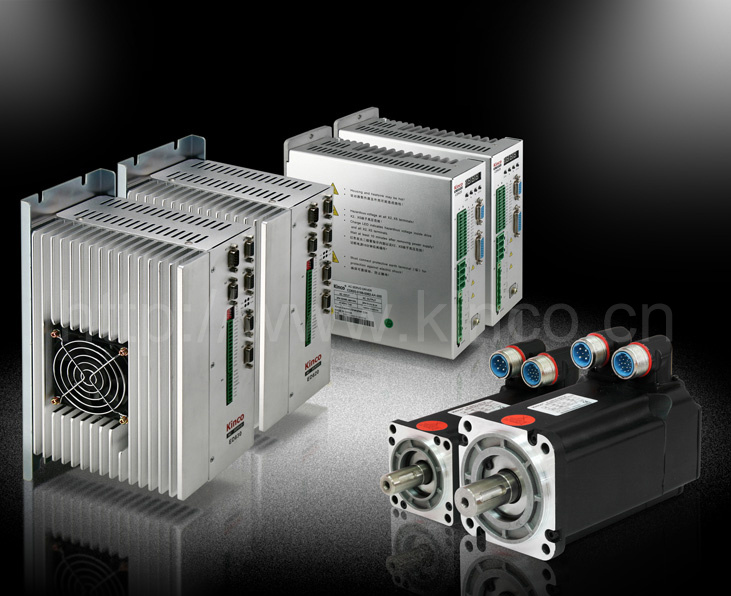

Kinco ED series servo drives are intelligent drives capable of flexible programmability and field bus communication. ED series are suitable for multi-axis applications and single-axle controller-less applications.
ED430
*Main supply voltage: AC220V± 15%
*Rated output power(KW): 0.1-1.57
*Dimensions mm: 265X165X62 265X165X97 ED620/630
*Main supply voltag: 3-phase AC380V± 15%
*Rated output power(KW): 1.2-4.0
*Dimensions mm: 300X166X115.5 300X166X125.5
|
Category |
Power |
Driver |
Motor |
Description |
|
Small inertia 220V |
200W |
ED430-0020-LA-K-000 |
SMH60S-0020-30AAK-3LKL |
3000rpm\0.64Nm Cable connector,with keyway |
|
ED430-0020-AA-K-000 |
|
ED430-0020-PA-K-000 |
|
400W |
ED430-0040-LA-K-000 |
SMH60S-0040-30AAK-3LKL |
3000rpm\1.27Nm Cable connector,with keyway |
|
ED430-0040-AA-K-000 |
|
ED430-0040-PA-K-000 |
|
750W |
ED430-0075-LA-K-000 |
SMH80S-0075-30AAK-3LKL |
3000rpm\2.39Nm Cable connector,with keyway |
|
ED430-0075-AA-K-000 |
|
ED430-0075-PA-K-000 |
|
1000W |
ED430-0100-LA-K-000 |
SMH80S-0100-30AAK-3LKL |
3000rpm\3.18Nm Cable connector,with keyway |
|
ED430-0100-AA-K-000 |
|
ED430-0100-PA-K-000 |
|
Medium inertia 220V |
1.05KW |
ED430-0105-LA-K-000 |
SMH110D-0105-20AAK-4LKC |
2000rpm\5Nm Standard connector,with keyway |
|
ED430-0105-AA-K-000 |
|
ED430-0105-PA-K-000 |
|
1.26KW |
ED430-0126-LA-K-000 |
SMH110D-0126-20AAK-4LKC |
2000rpm\6Nm Standard connector,with keyway |
|
ED430-0126-AA-K-000 |
|
ED430-0126-PA-K-000 |
|
1.25KW |
ED430-0125-LA-K-000 |
SMH110D-0125-30AAK-4LKC |
3000rpm\4Nm Standard connector,with keyway |
|
ED430-0125-AA-K-000 |
|
ED430-0125-PA-K-000 |
|
1.05KW |
ED430-0105-LA-S-000 |
130D-0105-20AAK-2LS |
2000rpm\5Nm Standard connector,with keyway |
|
ED430-0105-AA-S-000 |
|
ED430-0105-PA-S-000 |
|
1.57KW |
ED430-0157-LA-S-000 |
130D-0157-20AAK-2LS |
2000rpm\7.5Nm Standard connector,with keyway |
|
ED430-0157-AA-S-000 |
|
ED430-0157-PA-S-000 |
|
Medium inertia 380V |
1.26KW |
ED620-0126-LA-K-000 |
SMH110D-0126-30AAK-4HKC |
3000rpm\4Nm Standard connector,with keyway |
|
ED620-0126-AA-K-000 |
|
ED620-0126-PA-K-000 |
|
1.57KW |
ED620-0157-LA-K-000 |
SMH110D-0157-30AAK-4HKC |
3000rpm\5Nm Standard connector,with keyway |
|
ED620-0157-AA-K-000 |
|
ED620-0157-PA-K-000 |
|
1.88KW |
ED620-0188-LA-K-000 |
SMH110D-0188-30AAK-4HKC |
3000rpm\6Nm Standard connector,with keyway |
|
ED620-0188-AA-K-000 |
|
ED620-0188-PA-K-000 |
|
Medium inertia 380V |
1.80KW |
ED620-0180-LA-G-000 |
126D-0180-20AAK-3HG |
2000rpm\8.8Nm Standard connector,with keyway |
|
ED620-0180-AA-G-000 |
|
ED620-0180-PA-G-000 |
|
2.50KW |
ED630-0250-LA-G-000 |
155D-0250-20AAK-3HG |
2000rpm\12Nm Standard connector,with keyway |
|
ED630-0250-AA-G-000 |
|
ED630-0250-PA-G-000 |
|
3.0KW |
ED630-0300-LA-G-000 |
155D-0300-20AAK-3HG |
2000rpm\14.3Nm Standard connector,with keyway |
|
ED630-0300-AA-G-000 |
|
ED630-0300-PA-G-000 |
|
4.0KW |
ED630-0400-LA-G-000 |
155D-0400-20AAK-3HG |
2000rpm\19.3Nm Standard connector,with keyway |
|
ED630-0400-AA-G-000 |
|
ED630-0400-PA-G-000 |
Kinco Electric (Shenzhen) Ltd. (hereinafter called "Kinco") as a subsidiary of Kinco Automation (Shanghai) Ltd., are private high-tech enterprises specialized in the research, development, and production of automation products. Kinco controls such companies as eView HMltek (Shenzhen) Ltd., JAT KINCO Electric Shenzhen Ltd., and Beijing KDN Automation Co., Ltd., and owns two well-known brands of eView and Kinco. In addition, it has established production lines with proprietary intellectual property rights such as industrial human-machine interfaces, AC servo systems, and stepper systems, PLC and industrial fieldbus products. Kinco has become an outstanding representative of the automation control industry in China.
