Product Specifications
| Prod Model: |

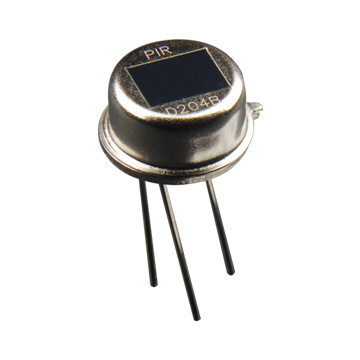

D204B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia |
| Attribute (E. G.: Size): |
Value (E. G.: 12 Inches) |
Product Description
The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation. As a result, the operating stability of the sensor is greatly improved. Our products can be used in many applications. Such as in security systems, burglar alarms, visitor acknowledgement, light switch control and intellectualized toy, etc.
Recommended Model
D203S
Encapsulation Type TO-5
IR Receiving Electrode 2x 1mm, 2 elements
Window Size 5x3.8mm
Spectral Response 5- 14µ M
Transmittance ≥ 75%
Signal Output [Vp-p] ≥ 3500mV
Sensitivity ≥ 3300V/W
Detectivity (D*) ≥ 1.4 x108 cmHz1/2/W
Noise[Vp-p] < 70mV
Output Balance < 10%
Offset Voltage 0.3-1.2V
Supply Voltage 3-15V
Operating Temp. -30-70° C
Storage Temp. -40-80° C
Field of View Equivalent Circuit
Equivalent Circui
