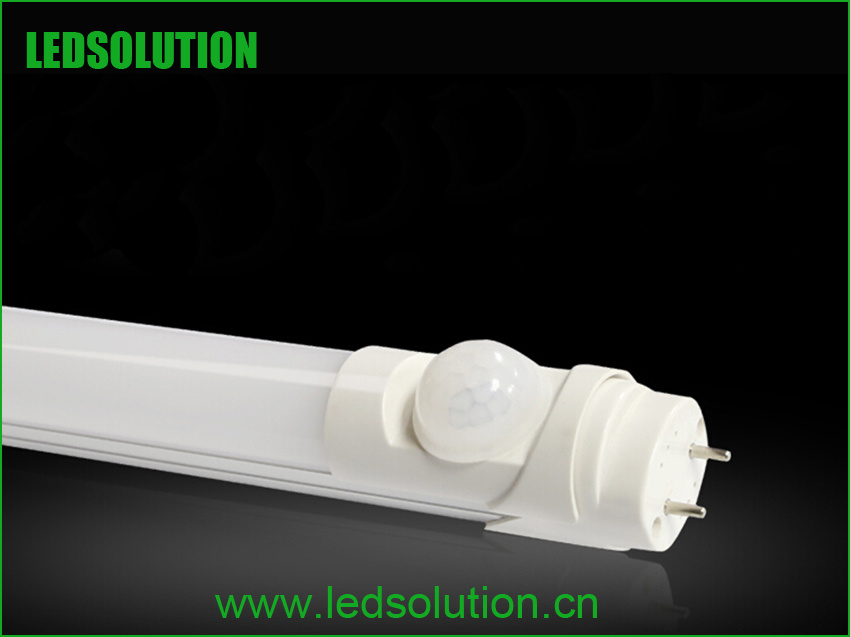

Motion Sensor LED Tube 18W 4ft with SAA Approval
General Introduction
This Motion sensor PIR LED tube light uses SMD LED2835 as light source and there are 600mm(2 feet), 900mm(3 feet), 1200mm(4 feet), 1500mm(5 feet) available.With longer lifespan(>50,000hours), higher brightness and less toxic substance, motion sensor PIR LED tube light can be widely used in park lots, tenement corridor, passageway,etc. This type of 18w 4ft motion sensor Pir LED tube light adopts the standard G13 socket and works with AC100-240V voltage input and DC72-80V voltage output. It is also RoHS approved.
What is the details of our T8 LED Tube?
1. The main structure is used 100% heat conduction PC, 100% security.
2. T8 LED Tube can use 20pcs of tube series. Two tubes can be connected directly or use wiring connection.
3. Design of deep groove, poor glare, better light effection, No dark area
4. Light weight, and shock-proof
5. Ra>80, 100lm/w
6. LED passed the LM80 tested, SCD<6
7. With CE, RoHS,UL Approval
How to install T8 LED Tube light?
1. For the LED tube use inductance ballast, just remove starter
Before installation.
2. For the LED tube use electronic ballast, please remove the
Whole electronic ballast before installation.
T8 Tube Lights Features
Motion sensor PIR LED tube light 18w 4ft for park lots, passageway, viewing balcony application
Single LEDs of 24-26 lumen per watt with higher brightness
Non-isolated power supply of 88% power conversion efficiency
Milky PC cover of 0.85-0.88 light transmittance
Motion sensor LED tube light for 5-7M sensing detection
Why Choose us?
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Monthly output over 50, 000PCS.
5. Single package in Gift Boxes
T8 Tube Lights Application
T8 tube lights can be applied in indoor LED lighting places, such as office room, school, supermarket, etc.
Tube T8 Parameters
Model NO. | LS-TI-18W-012N |
Optical Parameters | Light Source | SMD LED2835 |
Luminous Flux(lm) | 1400-1600 |
CCT(K) | 2700-6500 |
CRI(Ra) | 80 |
Beam Angle | 120°-160° |
Light Attenuation ratio (%) | Less than 10% in 3 years |
LED Quantity | 100 |
Electrical Parameters | Input Voltage(V) | AC100-240V |
Frequency(Hz) | 50/60HZ |
Output Voltage(V) | DC72-80V |
Total Power(W) | 18 |
Power Factor | >0.9 |
Lifespan (Hrs) | >50,000 |
Dielectric Voltage Withstand Test | 3750Vac/60s |
Structural Parameters | Material | Aluminum housing &PC cover |
Size(mm) | Φ26×1200 |
Length(mm) | 1200 |
Net Weight(Kg) | 0.32 |
CTN Size(mm) | L1230*W210*H215 (25PCS) |
Gross Weight(kg) | 12.8 |
Integrated Parameters | Operating Temperature | -10°-40° |
Storage Humidity | -40°-85° |
Safety Requirement | CE.SAA |
Environmental Directives | RoHS |
Terms of payment: T/T, Paypal, Western Union etc.
Delivery time: Within 15 days
Shpping way: By international express mail (DHL, UPS, FEDEX etc) for samples, by air or by sea for bulk orders.
