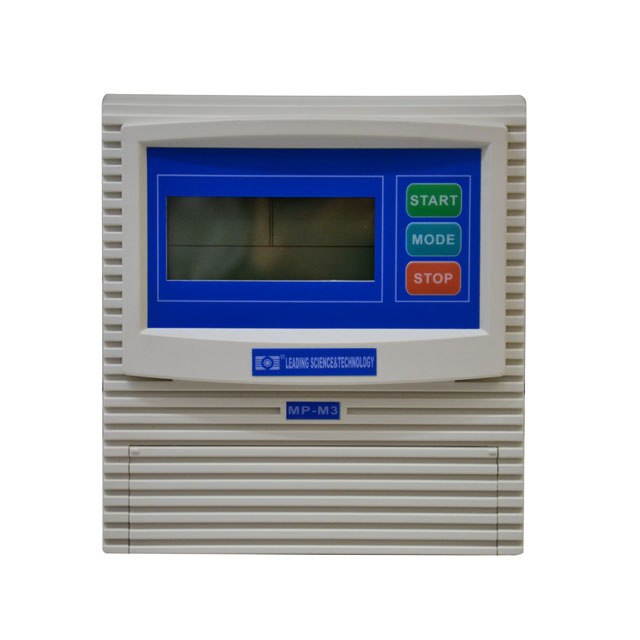

Motor Starter with Automatic Protection

Name: Motor Starter with Automatic Protection
Brand: China-Manufacturer-Directory.com
SKU: 691556012
Availability: InStock
Rating: 4.5 (125 reviews)

Supplier:	Hunan Leading Science & Technology Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	MP-M3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Input Voltage:	AC380V
Rated Output Power:	0.75kw~4kw 5.5kw~7.5kw
Rated Frequency:	50Hz/60Hz
Phase Nummber:	Three Phase
Protection Grade:	IP22
Task:	Program
Structure:	Closed-Loop
Signal:	Continuous
Mathematical Model:	Linear

Product Description

Motor starter with automatic protection
Intelligent Pump Motor Protocter model MP-M3 is an easy to use, programmable protection device for direct start, three phase deep well submersible pump, centrifugal pump, pipeline pump motor etc with output power from 0.75KW-7.5KW (1HP-10HP)

Main Spec:
Rated Input Voltage: AC220V/50HZ, Single Phase
Rated Output Power: 0.37kw-2.2kw (0.5hp-3hp)

Main Features:
· Over Load Protection
· Motor Stalled Protection
· Dry Run Protecton
· Reserved Space For Installing Start Capacitor
· Transient Surge Protection
· Memory function when power off & power recovery
· Visual & Audio Alarm for Fault Prompt
-Dynamic LCD displaying pump running state
-Protect the pump against many fault

Typical usage scenarios include:
-Houses
-Flats
-Holidays houses
-Farms
-Water supply from wells
-Irrigations of greenhouses, gardens, agriculture
-Rain water reuse
-Industrial plants
-Waste water tank / Sewage sink

Our Advantage

1. Water pump network remote monitor;
2. Water pump GSM message remote monitor;
3. Central group control network systems;
4. Intelligent digital water pump controller with sensor free;
5. Computer chip of intelligent digital water pump control;
6. Water pump intelligent one button fast parameter calibration;
7. Water control anti-corrosion, enviromment-friendly probe;
8. Water pump shaft anti-rust function;
9. Liquid level no sensor application;
10. Win credit grade-AAA enterprise certification;
11. Win Hunan good quality and be reliable enterprise;
12. The appointed product of Hunan flood control and drought relief command office.

Main technical data
Rated outpu tpower	0.75KW-7.5KW(1HP-10HP)
Rated input voltage	AC380V/50HZ Three Phase
Trip response time of over load	5sec-5min
Trip response time of short circuit	<0.1sec
Trip response time of under/over voltage	<5sec
Trip response time of dry run	6sec
Recovery time of over load	30min
Recovery time of under/over voltage	5min
Recovery time of dry run	30min
Trip voltage of over voltage	437V
Trip voltage of under voltage	301V
Protection function	Dry run Over load Transient surge Under voltage Over voltage Pump stalled Short circuit Open phase
Main installation data
Working temperature	-25ºC--+55ºC
Working humidity	20%-90%RH,no drips concreted
Degree of protection	IP22
Installposition	Vertical
Unitdimensions(LxWxH)	17×15.5×8.5cm
Unitweight(net)	905g

Hunan Leading Science & Technology Development Co., Ltd is the professional manufacturer of intelligent pump control system applied for monitoring and protecting of pumps in home and industry use;

Leading Science & Technology has always been a leader in the production, research & development of intelligent pump control system and relative pump control products. Million of our prime products have been sold on the market for stable quality and reasonable price.

Leading Science & Technology has established stable relations with many pump producers and distributors from China and overseas.
Till now, Leading Science & Technology we have passed CE, ISO9001: 2008 certificate.
