Product Specifications
| Prod Model: |
ND-QMT-2B-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia |
| Weight: |
500-1000Kg |
| Power Source: |
AC380V |
| Type: |
Motor Testing Panel |
Product Description

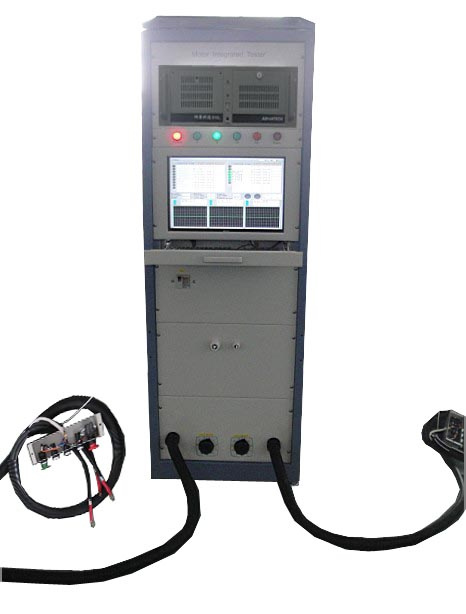

This testing machine is applied to test die casting motor such as pump, fan, air condition motor, mower, paper shredder and refrigerator etc of power under 30KW. Its LCD displays all technical data which obtained by industrial control computer, which check and verify the quality of testing motor.
Main specification:
1. Hi-pot
(1) Testing voltage: AC100~5000V
(2) Testing range: 0.5/1/2/2/10mA
(3) Testing precision: +/-0.5%
(4) Testing position: Between winding and core
2. Insulation resistance
(1) Testing voltage: DC500V
(2) Testing range: 10-500mΩ
(3) Testing precision: +/-1.0%
(4) Testing position: Between winding and core
3. DC resistance
(1) Testing voltage: 1.8/18/180mA
(2) Testing range: 0.01-1.999Ω
(3) Testing precision: +/-0.5%
(4) Testing position: Inter-windings
4. Inter-turns insulation
(1) Testing voltage: DC100-5000V
(2) Testing range: 0-100
(3) Testing precision: +/-1.0%
(4) Testing position: Each winding
5. No load current
(1) Testing voltage: 220V/50Hz; 110V/60Hz motor
(2) Testing range: 0-2-10A
(3) Testing precision: +/-0.5%
(4) Testing position: Each gear
6. No load power
(1) Testing voltage: 220V/50Hz; 110V/60Hz motor
(2) Testing range: U*I*Cos
(3) Testing precision: +/-0.5%
(4) Testing position: Each gear
7. Capacitor-voltage
(1) Testing voltage: 220V/50Hz; 110V/60Hz motor
(2) Testing range: 0-600V
(3) Testing precision: +/-0.5%
(4) Testing position: Between main phase and auxiliary phase
8. Locked current
(1) Testing voltage: 220V/50Hz; 110V/60Hz motor
(2) Testing range: 0-2-20A
(3) Testing precision: +/-1%
(4) Testing position: Motor start data
9. Brake time
(1) Testing voltage: 220V/50Hz; 110V/60Hz motor
(2) Testing range: 0-3s
(3) Testing precision: +/-0.5%
(4) Testing position: Motor cut static time
10. Motor rotating speed
(1) Testing voltage: 220V/50Hz; 110V/60Hz motor
(2) Testing range: 0-60000rpm
(3) Testing precision: +/-1%
(4) Testing position: Optical fiber induction ouput
11. PG test
(1) Testing voltage: Duty cycle, frequency, high level, ground level
(2) Testing precision: +/-1%
(4) Testing position: PG outgoing line PG
12. Ground resistance
(1) Testing voltage: DC25A
(2) Testing range: 1-600mΩ
(3) Testing precision: +/-0.5%
(4) Testing position: Between housing grounding line
13. Leakage current
(1) Testing voltage: 0-250V
(2) Testing range: 0.1-50mA
(3) Testing precision: +/-0.5%
(4) Testing position: Between housing and main, high gear
14. Motor rotation
(1) Testing voltage: 0-250V
(2) Testing range: CW, CCW, stop
(4) Testing position: Main phase and high gear
