Motor

Name: Motor
Brand: China-Manufacturer-Directory.com
SKU: 645953075
Availability: InStock
Rating: 4.3 (126 reviews)

Supplier:	Ningbo E&F Hydraulic Co., Ltd.
Price:	Negotiable
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB Ningbo

Product Specifications

Prod Model:	BMV (OMV)
Advanced Geroler Gear Set Design:	Low Pressure Of Start-Up
Iso9001:	Sa8000
High Torque:	Low Speed
High Efficiency:	Long Life

Product Description

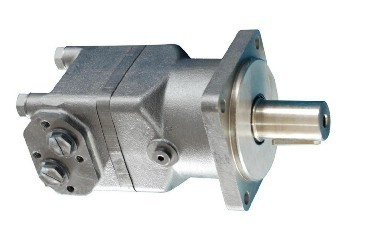

Motor

Hydraulic motors are widely applied in agriculture, forestry, plastics, machines tools, mining machines, etc.

Orbit motors are one type of high torque low speed hydraulic motors, with high efficiency and long life. BM series motor has a wide speed range, high starting torque and rotating stable at high speed compact and light. It can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities.

BM hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.

Technical parameter of BMV series hydraulic orbit motor:

type		BMV 315	BMV 400	BMV 500	BMV 630	BMV 800
Geometric displacement (cm 3 /rev)		333	419	518	666	801
Max.speed (rpm)	Rated	335	270	215	170	140
	cont.	446	354	386	223	185
	int.	649	526	425	331	275
Max.torque (N*m)	Rated	730	1020	1210	1422	1590
	cont.	925	1220	1450	1640	1810
	int.	1100	1439	1780	2000	2110
	peak	1349	1700	2121	2338	2470
Max. output (kw)	Rated	25.6	28.8	27.2	25.3	23.3
	cont.	43	45.2	58.6	38.3	35.1
	int.	52	52	52	46	40
Max.pressure Drop (Mpa)	Rated	16	16	16	16	14
	cont.	20	20	20	18	16
	int.	24	24	24	21	18
	peak	28	28	28	24	21
Max. flow (L/min)	Rated	110	110	110	110	110
	cont.	150	150	150	150	150
	int.	225	225	225	225	225
Max. inlet Pressue (MPa)	Rated	21	21	21	21	21
	cont.	21	21	21	21	21
	int.	25	25	25	25	25
	peak	30	30	30	30	30
Weight (kg)		31.8	32.6	33.5	34.9	36.5

Ningbo E&F Hydraulic Co., Ltd., is a Sino-foreign joint ventures. It has registered capital of 1.25 million U. S. Dollars, assets of 80 million Yuan. The company compound is occupying an area of 14520 m² , construction area of 20000m² .

The company relying on the hydraulic technology from Italy and France research and manufacture various types of hydraulic motors, hydraulic transmission, hydraulic rotary, hydraulic winch and other products. We have full equipment; Improve the detection and strict management. Through the adoption and implementation of ISO9001 international quality management system certification and SA8000: 2001 international quality standards and social responsibility, all the products of the company have been strict, systematic and comprehensive inspection to ensure that every high-quality products to meet the needs of users.
