Motor

Name: Motor
Brand: China-Manufacturer-Directory.com
SKU: 646331295
Availability: InStock
Rating: 4.5 (83 reviews)

Supplier:	Ningbo E&F Hydraulic Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	QJM series

Product Description

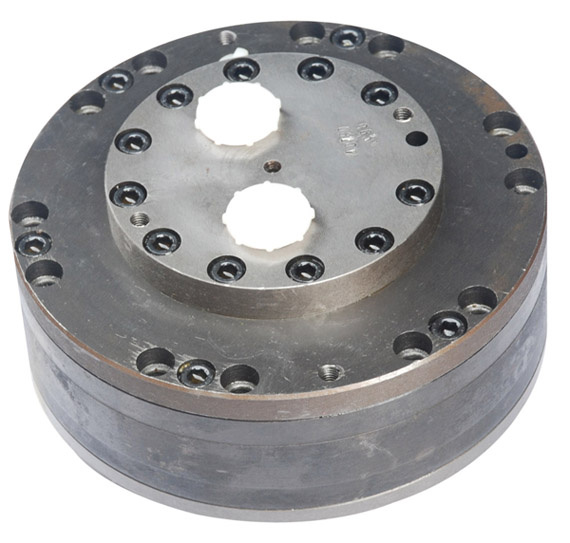

MOTOR
Piston hydraulic motors can constitute a hydraulic actuator with different oil pumps, valves and hydraulic parts is able to adapt itself to all kinds of mechanical conditions by reason of some measures taken to its design. The motor has many advantages, e. G. Light weight, small size, wide speed regulating range, capable of stepping variation, reliable performance and long useful life, etc. It has been widely applied for mine engineering, hoisting transport, metallurgy, ships, machine tools, plastics processing and geological prospecting, etc. It is mainly used for pedrail walking, driving railway wheels, different slewing gears, drilling, winch hoisting, belt transmission, material agitation, cutting road surfaces, ship propulsion, plastics injection, etc.

Technical data of QJM**--**SeZ(SeZH)Y hydraulic motor with bearing and outside brake

type	Displacement (L/rev)	Pressure(MPa)		Rotational Speed range (r/min)	Rated output Torque(N.M)	Open brake Pressure(MPa)	Brake torque (N.M)
type	Displacement (L/rev)	rated	peak	Rotational Speed range (r/min)	Rated output Torque(N.M)	Open brake Pressure(MPa)	Brake torque (N.M)
1 QJM12-0.8S_eZY	0.808	10	16	4-250	1076	1.3≤ P≤6.3	≥ 1800
1 QJM12-1.0S_eZY	0.993	10	16	4-200	1332
1 QJM12-1.25S_eZY	1.328	10	16	4-160	1771
1 ₂QJM21-0.32 S_eZY	0.317 0.1585	16	25	2-500	751,376	2.5≤ P≤6.3	≥ 2500
1 ₂QJM21-0.4S_eZY	0.404 0.202	16	25	2-400	957, 478
1 ₂QJM21-0.5S_eZY	0.496 0.248	16	25	2-320	1175,588
1 ₂QJM21-0.63S_eZY	0.664 0.332	16	25	2-250	1572, 786
1 ₂QJM21-0.8S_eZY	0.808 0.404	16	25	2-200	1913,956
1 ₂QJM21-1.0S_eZY	1.01 0.505	10	16	2-160	1495,748
1 ₂QJM21-1.25S_eY	1.354 0.677	10	16	2-125	2004,1002
1 ₂QJM21-1.6S_eZY	1.65 0.825	10	16	2-100	2442, 1221
1 ₂QJM32-0.63S_eZY	0.635 0.318	20	31.5	3-500	1880,940
1 ₂QJM32-0.8S_eZY	0.808 0.404	20	31.5	3-400	2368, 1184		≥ 6000
1 ₂QJM32-1.0S_eZY	0.993 0.479	20	31.5	2-400	3138,1519
1 ₂QJM32-1.2S_eZY	1.328 0.664	20	31.5	2-320	3833,1917
1 ₂QJM32-1.6S_eZY	1.616 0.808	20	31.5	2-250	4881, 2441
1 ₂QJM32-2.0S_eZY	2.03 1.015	16	25	2-200	4807, 2404
1 ₂QJM32-2.5S_eZY	2.71 1.355	10	16	4-160	4011, 2006
1 ₂QJM32-3.2S_eZY	3.3 1.65	10	16	1-125	4884, 2442
1 ₂QJM32-4.0S_eZY	4.0 2.0	10	16	1-100	5920, 2960
1 ₂QJM42-2.0S_eZY	2.11 1.055	20	31.5	1-320	6246, 3123	2.1≤ P≤6.3	≥ 9000
1 ₂QJM42-2.5S_eZY	2.56 1.28	20	31.5	1-250	7578, 3789
1 ₂QJM42-3.2S_eZY	3.3 1.65	10	16	1-200	4884, 2442
1 ₂QJM42-4.0S_eZY	4.0 2.0	10	16	1-160	5920, 2960
1 ₂QJM42-4.5S_eZY	4.56 2.28	10	16	1-125	6808, 3404
1 ₂QJM52-2.5S_eZY	2.67 1.355	20	31.5	1-320	7903, 3952
1 ₂QJM52-3.2S_eZY	3.24 1.62	20	31.5	1-250	9590, 4795
1 ₂QJM52-4.0S_eZY	4.0 2.0	16	25	1-200	9472, 4736
1 ₂QJM52-5.0S_eZY	5.23 2.165	10	16	1-160	7740, 3870
1 ₂QJM52-6.3S_eZY	6.36 3.18	10	16	1-125	9413, 4707

Ningbo E&F Hydraulic Co., Ltd., is a Sino-foreign joint ventures. It has registered capital of 1.25 million U. S. Dollars, assets of 80 million Yuan. The company compound is occupying an area of 14520 m² , construction area of 20000m² .

The company relying on the hydraulic technology from Italy and France research and manufacture various types of hydraulic motors, hydraulic transmission, hydraulic rotary, hydraulic winch and other products. We have full equipment; Improve the detection and strict management. Through the adoption and implementation of ISO9001 international quality management system certification and SA8000: 2001 international quality standards and social responsibility, all the products of the company have been strict, systematic and comprehensive inspection to ensure that every high-quality products to meet the needs of users.
