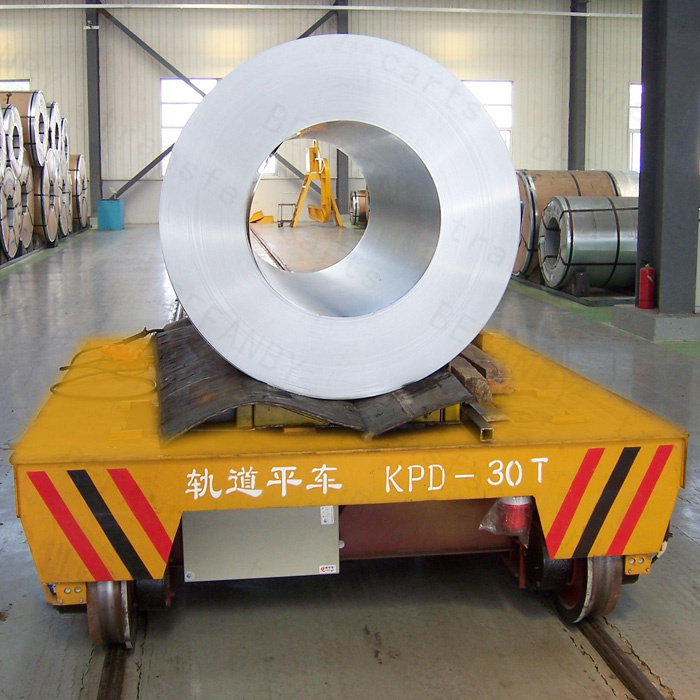

Motorized Transportation Wagon Applied in Shipbuilding Bay to Bay (KPD-30T)
Product Specifications
| Prod Model: |
KPD-30T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity(T): |
16 |
| Table Size(mm): |
3600' 2000' 500 |
| Speed(M/Min): |
0-25 |
| Wheel Diameter(mm): |
300 |
| Wheel Tread(mm): |
2600 |
| Max. Wheel Pressure(Kn): |
38.6 |
| Weight(T): |
2.8 |
| Motor Power(Kw): |
1.6 |
| Colour: |
Yellow / Red / Blue |
| Volume: |
>30000L |
Product Description
Company Profile
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced
manufacturer,exporter of material transfer car in China, meanwhile we also design material handling
solution according to client's demand.
Our products include rail transfer cart, trackless transfer car, traverse, transfer table, turnplate, electric
hoist, electric winch, gantry crane, overhead crane etc. Our products have passed the authentication of
Quality system ISO9001, and SGS, CE certifications. All of our products accord with machinery industrial
standard JB/T61 27-92.
| Working principle | The cats are powered by the low voltage electricity from the railways. The power source AC 380V is transformed into AC 36V two-phase and are respectively connected to the two rails. Then the flats' wheels conduct the AC 36V on rail into the electrical appliance box at the bottom of the carts. And then the AC 36V is transformed into DC 36V and then control the DC motor through the DC control system.
|
| Export markets: | Our products are sold in India, Britain, American, and South East Asia and well appreciated by their purchasers. Because our products complete range of articles and modern techniques, We have won praise form customers.
|
| Attentions | 1. This series have strict requirement on the construction of the railways which need to be insulated. The rated load can not be more than 50T.
2. When running distance is more than 70m, you need to increase the transformers to make up the voltage which has been lowered.
|
| After-sale service | In the warranty period, if our product has any problem or can't work normally, we can support you repair technology or replace relevant parts for you.
According to the user's actual condition, design the auxiliary device or foundation drawing for free, and offer the technical service and drawing material. Guide the customer to install and debugging of the trolley until making customer satisfied.
|
Xinxiang hundred percent electrical &mechanical Co., Ltd is one of the leading manufacturers of material handling equipment and handling solution design expert in China. We have gotten ISO9001: 2000, ISO9001: 2008, SGS and CE certifications.
Our products include rail transfer car, turntable, transfer table, wheels, rails, winch, hoist, crane etc. Strong designing group can heip you to provide the whole solution for material handiing and customized product, auxiliary equipment. We have rich experience in these projects, such steel plant, automobile assembly line, painting line, shipyard, energy industry etc.
All our products are manufactured using finest quality raw material, which is sourced from the leading manufacturer of the market. Our range is known for its optimized structure design which make sailing more steady and reliable, competitive price, durability, sturdy construction, corrosion resistance, high strength and low maintenance, highest safety keeps our products first class which can compete with those coming from the famous manufacturer of the world. These rail transfer carts are suitable for transportation in various environments (such as ferry condition and flammable, explosive environment and high temperature) and are widely used in these fields of metallurgy, coal, electronics, heavy industry, shipbuilding and light industry.
Assisted with an efficient workforce and advanced manufacturing machines, we have been able to offer custom designed products that are designed and developed in adherence with industry standards. The team also conducts stringent quality tests to ensure delivery of flawless products to the clients.
Moreover, our professionals support us in undertaking various material handling projects. Our commitment: Reliable product, timely delivery, which has helped us in gaining huge client base across the country. Our products have been sold to every city in China and exported to many countries, such as Germany, Turkey, South Africa, Thailand, Syria, Singapore, Australia, Saudi Arabia and so on.
Professional team welcome your any time inquiry!
