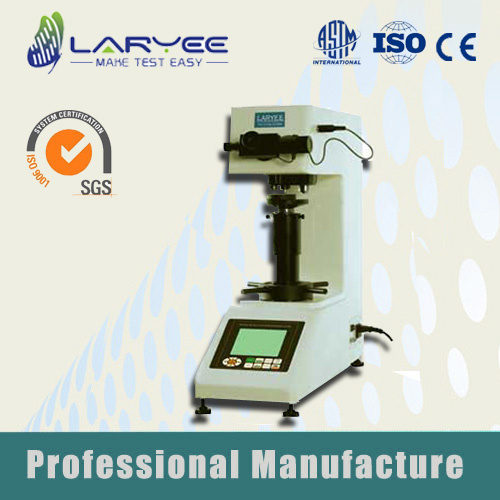

Motorized Turret Digital Vickers Hardness Tester (HVM-5/10/30/50)

Product Specifications

Prod Model:	HVM-5/10/30/50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Digital Vickers Hardness Tester
Carriage Control:	Automatic (Loading/Dwell-Time/Unloading)
Load Holding Time:	0~60 Seconds
Microscope Min. Measuring Unit:	0.0625um(400X) 0.125um(200X) 0.250um(100X)
Testing Range:	1hv~2967hv
Hardness Scales:	Hvm Whith Function of Convert Hb,HRC,Hra,Hrb,Hrn,H
Type:	Vickers Hardness Tester
Measuring Range:	HV
Application:	Metal
Standard:	ASTM

Product Description

Digital Vickers Hardness Tester with Motorized Turrent (HVM- 5/10/30/50) with following Characters:

1. With Large LCD display.
2. With motorized turret, the indenter and objectives can be shifted automatically.
3. Sensor, the transitive error of test force is reduced.
4. With large size test table, X-Y test table(100X100mm, stroke 25X25mm) and other accessories will be supplied if required.
5. Measure the Vickers/Knoop hardness values(HV/HK) from HV0.3 to HV10 and HK0.3 to HK10. Select
The test force directly.
6. With function of automatic exchanging hardness scales(HB, HRC, HRA, HRB, HRN, HRT).
7. The CCD image automatically measuring software may be equipped if the user required.
8. With built-in thermo-sensitive printer.
9. All information such as diagonal lines length of indentation, hardness values, data statistics and hardness exchange values, etc are displayed on the LCD screen.
10. With the thin film keyboard, various technical data can be inputted in. Press the START key, the whole test procedure can be carried out automatically.

Model	HVM-5	HVM-10	HVM-30	HVM-50
Test load(N)	2.942/4.903/ 9.807/19.61/ 24.52/29.42/ 49.03	2.942/4.903/ 9.807/19.61/ 24.52/29.42/ 49.03/98.07	4.903/9.807/ 19.61/24.52/ 29.42/49.03 98.07/196.1/ 294.2	9.807/19.61/24.52 29.42/49.03/98.07 196.1/294.2/490.3
Test load(Kgf)	0.3 / 0.5/1 /2 / 2.5 /3 / 5	0.3 /0.5 /1 /2/ 2.5/ 3 / 5 / 10	0.5/ 1 / 2 / 2.5 3 / 5 /10 / 20 /30	1/ 2 / 2.5 / 3 5 / 10 / 20 /30 /50
Carriage control	Automatic (loading/dwell-time/unloading)
Load holding time	0~60 seconds
Magnification of  microscope	100X, 400X	100X, 400X	100X, 200X	100X, 200X
Microscope Min.  measuring unit	0.0625um(400X)  0.125um(200X)  0.250um(100X)
Testing range	1HV~2967HV
Hardness Scales	HVM whith function of convert HB,HRC,HRA,HRB,HRN,HRT,
