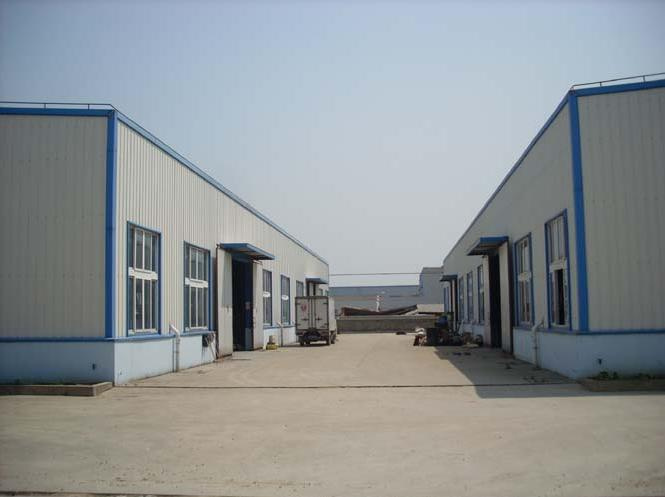

Movable Steel Structure Workshop Building
Product Specifications
| Prod Model: |
Steel Structure |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: |
Steel Structure |
| Size: |
by Customized |
| Design: |
by Customized |
| Specification: |
by Customized |
| Material: |
Steel Structure |
| Usage: |
Prefabricated Buildings |
| Certification: |
SGS |
Product Description
Which Technical Parameters of Movable Steel Structure Workshop Are Important to Our Design?
Specifications of movable steel structure workshop: Length*width*height
Materials required of movable steel structure workshop: Steel frames, wall and roof of movable steel structure workshop
Load of roof of movable steel structure workshop
Wind speed of movable steel structure workshop
Snow load of movable steel structure workshop
Annual rainfall of movable steel structure workshop
Earthquake resistance of movable steel structure workshop
Crane: Crane span of movable steel structure workshop
Crane lift weight
Max wheel pressure of movable steel structure workshop
Min-wheel pressure of movable steel structure workshop
|
Main Materials List For Steel Structure Workshop |
|
Specification: (15m*6m*6m)*18 (L*W*H)*Span |
QTY: 1set |
|
SQM: 1620sqm |
|
NO. |
Material Name |
Specification |
Unit |
QTY |
|
1 |
Main steel frame |
6 to 10mm Q235B steel plate |
T |
71.78 |
|
2 |
Connection panel for steel frame |
12 to 20m Q235B steel plate |
T |
4.31 |
|
3 |
Support connection panel |
6 to 10mm Q235B steel plate |
T |
2.05 |
|
4 |
Rigid support |
Φ 89× 3.0 Q235B welded pipe |
T |
5.22 |
|
5 |
Level support |
Φ 24 Q235B round steel pipe |
T |
1.83 |
|
6 |
Roof purlin |
C140× 50× 20× 2.0 cold bended |
T |
16.82 |
|
7 |
Wall purlin |
C140× 50× 20× 2.0 cold bended |
T |
13.94 |
|
8 |
Wall panel |
0.426mm color steel plate |
SQM |
2227.23 |
|
9 |
Wall panel |
0.426mm color steel plate |
SQM |
1811.55 |
|
10 |
Door |
Color steel plate sliding door |
SQM |
54.00 |
|
11 |
Window |
Aluminum alloy sliding window |
SQM |
191.40 |
|
12 |
Gutter and drainpipe |
PVC |
M |
402.00 |
|
13 |
Blanking plate, covering and high strength screws |
Color steel plate
and standard screws |
M
SET |
According to practical usage |
Foshan Shengbang Steel Structure Co., Ltd. (for short "SBS") is a fast developing enterprises integrating marketing, design, development, manufacturing and construction. It has been approved and certified by international ISO9001: 2008 quality management system, and SGS factory system. We have trained many highly qualified marketing and technical personnel as well on-site construction team during recent years' fast development. Being customer demand-oriented, SBS provides a full range of services with rational, scientific and effective solutions, as a practical, progressive, innovative & solidarity company.
Our company prefabricated house is a new type environmental friendly product that adopts steel structure as frames, employs various plates and panels as surrounding protection system, uses high strength bolts as component connection. The prefabricated house is mainly used as modular house, office, cleaning workshop, cold storage room, wide span workshop, warehouse, exhibition hall, stadiums, hangars, steel-structure supermarkets, high-rise steel constructions, logistics center, container house and so on. Our house has been sold well to Middle East, Africa, Southeast Asia, South America and other more than 30 countries and areas.
Foshan Shengbang Steel Structure Co., Ltd. Possesses professional large-scale steel structure production equipments and the automatic spraying production line, so we can satisfy the different customers demand. We takes "build your future" as mission and takes company growth as premise. The company has trained many high quality marketing personnel, professional technician and construction workers. We take the customers' demand as the guidances, then provide reasonable, scientific and effective solution for customers. We regard practical growth, innovation and group solidarity as our company spirit, so that we can offer all-round service to customers.
Foshan Shengbang Steel Structure Co., Ltd. Will cooperate sincerely with the customers and build better future under the principle of win-win cooperation.
