Guangzhou CVR Pro-Audio Co., Ltd. >> Moving Heads Speaker Line Array

Moving Heads Speaker Line Array

Name: Moving Heads Speaker Line Array
Brand: China-Manufacturer-Directory.com
SKU: 690049102
Availability: InStock
Rating: 4.4 (143 reviews)

Supplier:	Guangzhou CVR Pro-Audio Co., Ltd.
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	W8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Passive Outdoor Sound
Size:	Double 12' Line Array
Cabinet:	Birch Plywood ,Water Proof
Application:	Commercial
THD:	<0.005%
Noise:	<95dB
Certification:	MET

Product Description

DESCRIPTION and APPLICATION

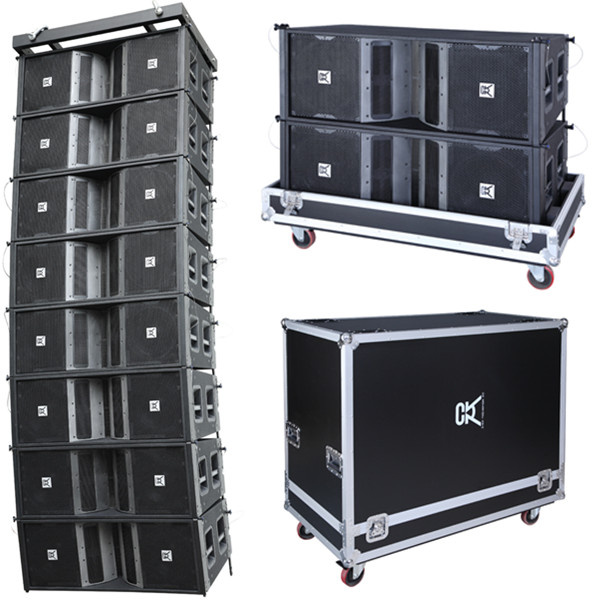

The W-8 is a line array system which is made of two 12" neodymium woofers, four 6.5" midrange speaker units, two 3" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi-speaker combined to produce accurate directivity and maximum dynamic impact. Its midrange speaker units are beset in treble horn board and two waves guide plates are set in between to eliminate its interfere. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-8 is a 3-way, full range system and may be used without subwoofers for many applications. Also it may be complemented by ground stacked subwoofer CVR T-182/CV-218B, which brings superb line array performance to large stadiums, big outdoor concerts, commercial events, etc.

Model	W-8
Type	Line array system
Frequency Response	52Hz-20KHz±3dB
Power handling	LF 2×600W(RMS)2×1200W(PEAK)
	MF 600W(RMS)1200W(PEAK)
	HF 200W(RMS)400W(PEAK)
Sensitivity	LF 104dB(1W@1M)
	MF 107dB(1W@1M)
	HF 111dB(1W@1M)
Max@S.P.L	LF 135dB(PEAK/1M)
	MF 135dB(PEAK/1M)
	HF 134dB(PEAK/1M)
LF section	2×12" (310mm)neodymium woofer
LF section	75mm(3in) coil
Nominal impedance	8 ohm
MF section	4×6.5" (170mm)neodymium MF
MF section	50mm(2in)coil
Nominal impedance	8 ohm
HF section	2×3"neodymium compression driver
HF section	with 75mm titanium diaphragm
Nominal impedance	16 ohm
Output section	3-channel
Dispersion pattern	110°H×7.5°V
Finish	Water-proof,wear-resistant textured black paint
Array design	Arrays of less than 3×W-8 will
	provide poor dispersion control and
	are neither recommended nor supported
Speaker cables	LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Rigging system	Please refer to the W-8 user
Rigging system	manual before any operation
Input connectors	2×Neutrik NL8
Recommend crossover	LF 60Hz-600Hz
	MF 600Hz-1.8kHz
	HF 1.8kHz-20KHz
Dimensions	1100×405×595mm(W×H×D)
Package dimensions	1170×475×665mm/0.37cbm
Enclosure	Birch Plywood
Net weight	60kg
Gross weight	64kg
