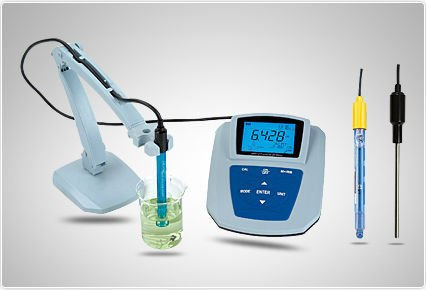

MP511 Lab pH Meter

Specifications

MP512 precision pH meter
1.Portable pH Meter
2.Laboratory pH meter
3.Cheap pH Meter
4. RS-232 output



MP512 precision pH meter
I. Introduction:
Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
Automatically recognize 13 kinds of pH buffer solution. User can choose anyone from four series of standard buffer solutions: Europe & USA series, NIST series, CHINA series and Self-defined series
High purified water and ammonia added purified water pH measuring mode can be set up, especially suitable for electric power and petrochemical
With EH redox potential measuring mode can directly display ORP value which against standard potential of hydrogen electrode.
Meter has the only product serial number.
Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.
II. Specification:

pH	Measuring range Resolution Accuracy Input current Input impendance Stability Temp. compensation range	(-1.999 ~ 19.999)pH 0.1/0.01/0.001 pH Meter:±0.002 pH, connect meter with electrode:±0.01pH ≤1×10-12 A ≥3×1012 Ω ±0.002 pH/3h (0 to 100) °C(automatic or manual)
mV	Measuring range(mV/ORP/EH) Resolution Accuracy	-1999.9mV ~ 0 ~ 1999.9mV 0.1mV ±0.03% FS
Temperature	Measuring range Resolution Accuracy	-10°C~ 110°C 0.1°C 5~ 60°Crange:±0.4°C  other range:±0.8°C
Other Technical Parameters:	Data storage Storage content   Power Communication connector Size and weight Quality and safety certification	300 groups Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time DC9V/300mA RS232 160 × 190 × 70mm/880g ISO9001:2008, CE and CMC
Working Condition	Environment temperature Environmental humidity IP rating	5 ~ 35 °C(0.01grade) 15 ~ 30 °C(0.001grade) ≤75% IP54 Dustproof and waterproof

III. Packing list

1. Model MP512 Precision pH meter	1 unit
2. Model 602 flexible electrode holder	1pc
3. 201T-M plastic pH/ATC three-in-one combination electrode	1 pc
4. 2503-C glass pH combination electrode	1 pc
5. MP500 temperature electrode	1pc
6. pH standard buffer solution(pH 4.00,7.00,10.01/50mL)	1pc
7. 9V power adapter	1pc
8. RS-232 communication cable	1 pc
9. MP512 communication software CD	1 pc
10. Operation manual	1 unit
11. Brief operation manual	1 unit
12. Packing List	1 pc

 Product name: pH Meter
