Product Specifications

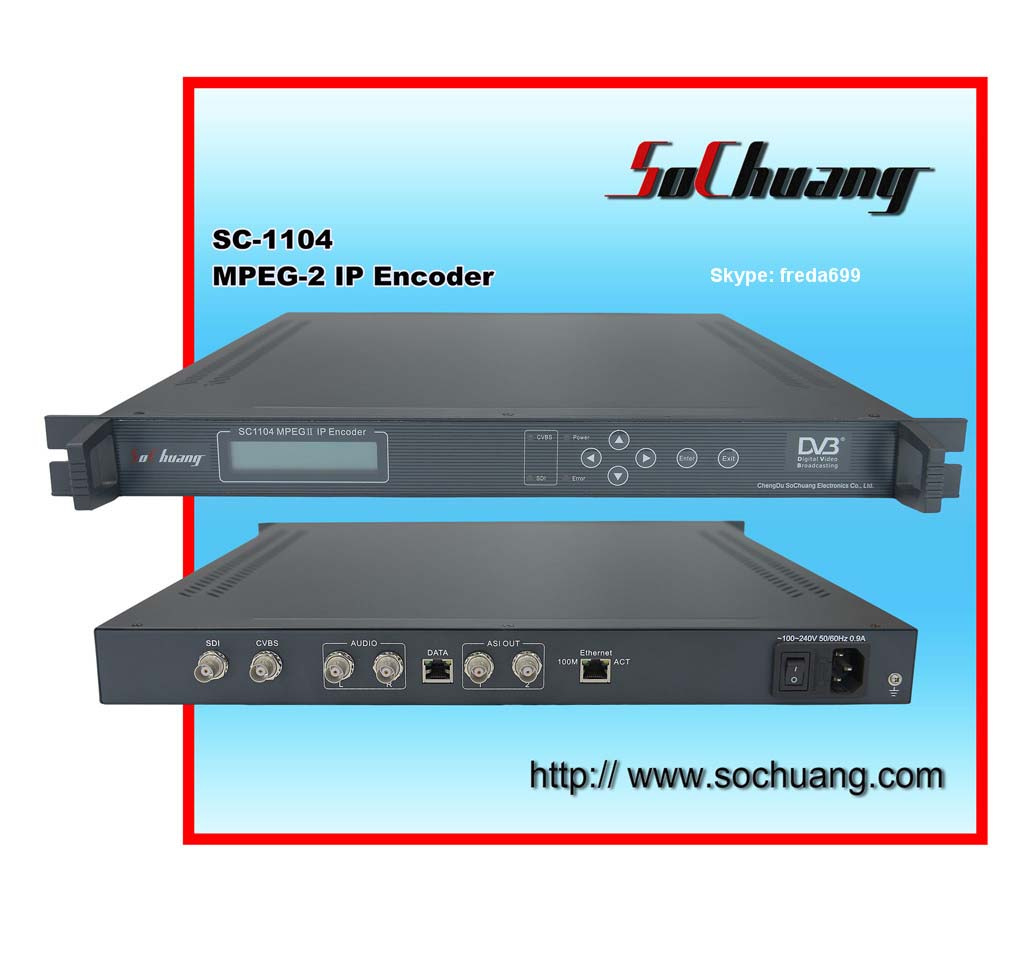

| Prod Model: |
SC-1104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TV Front-end Equipment |
Product Description
SC-1103
5IN1 MPEG-2 Encoder
Overview
MPEG-2 IP encoder is an easy to use, powerful MPEG-2 encoder. It support video and audio signals with a variety of standard. Compressed data output format is ASI, compression matter is MPEG-2MP@ML. The encoder makes audio and video signals in real-time encoding and re-use and generate DVB transport stream. It is in full compliance with MPEG-2 standard with a strong compatibility. Its volume is IU computer case. It can completely off-line set and run by the front panel LCD display.
Features
Support MPEG-2MP@ML (4: 2: 0) coding;
Support SDI video and audio input;
Start fast;
Support all hardware IP output;
High-fidelity audio processing R/L channel, stereo input;
Output bit rate continuously adjustable, flexible and easy to use;
Rich input-output interface to achieve freedom of access;
SDT insertion;
Local and remote control of network management;
LCD display, easy and flexible operation;
High reliability design, stable operation;
|
Input |
Video signal |
LEV 1.0Vp-p,CVBS |
|
Audio signal |
LEV 2Vp-p |
|
SDI |
BNC |
|
Output |
ASI |
DVB standard, BNC port |
|
IP out |
188 bytes TS packet in UDP/RTP payload |
|
protocol |
Unicast and multicast |
|
Code rate |
1.0~15Mbps continuously adjustable |
|
Control |
NMS(Ethernet Port,RJ-45), Keyboard + LCD |
|
Video Coding |
In compliance withISO11162(MPEG-1)&ISO13818 (MPEG-2) |
|
MPEG-2 coding adopt MP@ML(4:2:0) |
|
MPEG-2 Adaptive Field Frame (AFF) |
|
MPEG-2 field based (FB) |
|
audio coding |
sampling |
32KHz, 44.1KHz, 48KHz |
|
code rate |
64, 128, 192, 256, 384Kbps |
|
property |
MPEG-1 layer2, DVD quality |
|
Support one-channel stereo or dual-channel |
|
Resolution |
standard |
Compliance with CCIR601support1/2D1, 2/3D1, 3/4D1 |
|
PAL |
720*576, 704*576, 640*576, 544*576, 480*576, 384*576, 352*576 |
|
NTSC |
720*480, 704*480, 640*480, 544*480, 480*480, 384*480, 352*480 |
|
General Features |
Size |
44mm*482 mm*410mm |
|
Environment |
0~45(Operating); -20~80(Storage) |
|
Power |
220VAC±10%, 50Hz, 25W |
