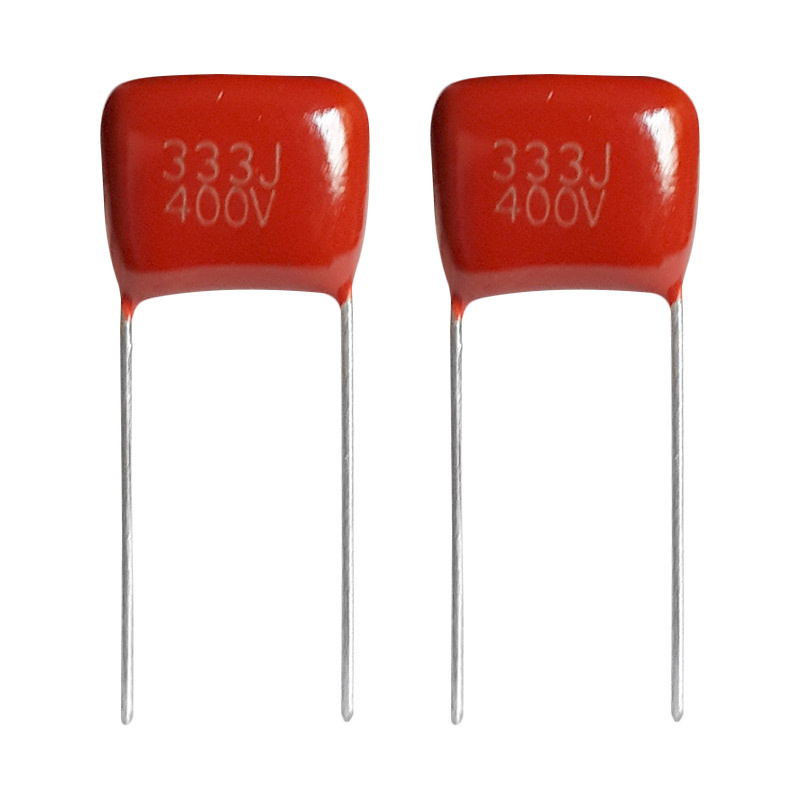

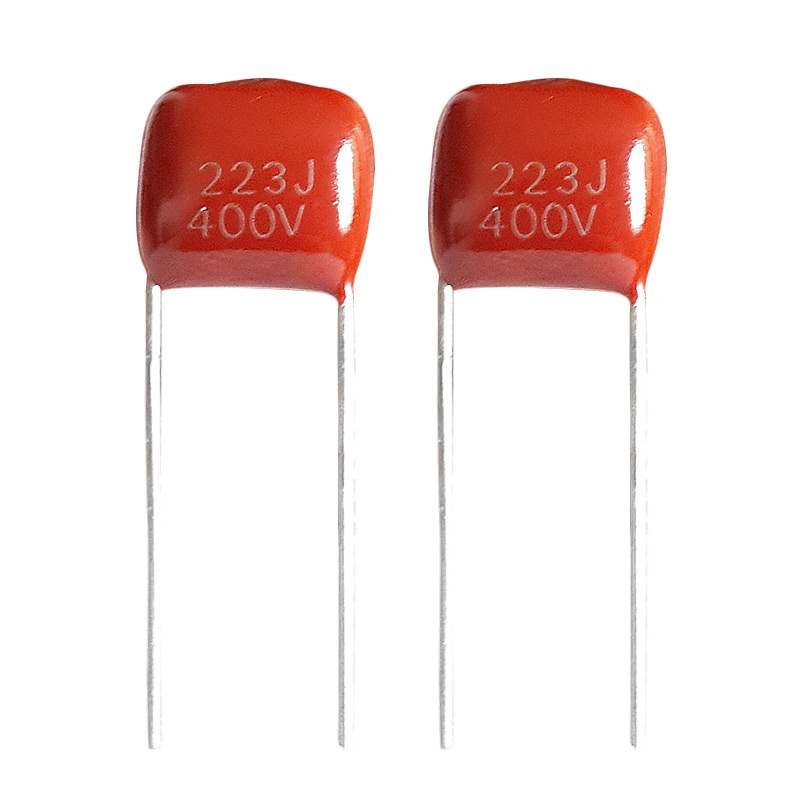

Mpp Capacitor Polypropylene Capacitor Cbb21

Name: Mpp Capacitor Polypropylene Capacitor Cbb21
Brand: china-manufacturer-directory.com
SKU: 768169625
Availability: InStock
Rating: 4.6 (82 reviews)

Supplier:	Zhengli Group Company Limited
Price:	US $ 0.03/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CBB21 MPF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Metallized Polypropylene Film
Dissipation Factor:	0.1% Max at 1kHz and 25c
Operating Temperature:	-40 ~ +105
Capacitance Tolerance:	J(5%), K(10%), M(20%)
Dielectric Strength:	1.4UR
Capacitance Range:	0.0047 ~ 3.3 UF
Colour:	Red
Rated Voltage:	250V,400V,630V DC
Mpq:	500 Pieces
MOQ:	500 Pieces
Type:	Polypropylene Capacitor
Application:	Automobile
Package Type:	Through Hole
Capacitance:	0.01 ~ 3.3UF
Electrolyte:	Polypropylene Film
Filter:	Metallized Polypropylene Film Capacitors

Product Description

1.FEATURES & APPLICATIONS

1.)Low dissipation factor and high insulation resistance
2..)Self-healing property
3.)High stability of capacitance and DF versus temperature and frequency

THE TYPE-MPF CAPACITORS are suitable for filtering bypass , coupling , decopling ,timing ,tuning and temperature compensation with applications in telecommunications,data processing indusstial instruments and automatic control system equipments.

2 .SPECIFICATIONS

Capacitance)	0.01μF~3.3μF
Capacitance Tolerance)	J(±5%),K(±10%),M(±20%)
Operating Temperature)	-40ºC~+105ºC
Rated Voltage)	250VDC,400VDC,630VDC
Dissipation Factor(tgδ)	0.1% max @ 1KHz,25ºC
Insulation Resistance(IR)	C≤0.33μF:IR≥25000MΩ C>0.33μF:IR≥7500MΩ·μF
Dielectric Strength	1.4Ur for 3~5 seconds

3.CAPACITANCE & DIMENSION CHART

capacitance		250VDC					400VDC					630VDC
		W	H	T	P	d	W	H	T	P	d	W	H	T	P	d
		W	H	T	P	d	W	H	T	P	d	W	H	T	P	d
103	0.01	13.0	10.0	6.0	10.0	0.6	13.0	10.0	6.0	10.0	0.6	13.0	10.0	6.0	10.0	0.6
153	0.015	13.0	10.0	6.0	10.0	0.6	13.0	10.0	6.0	10.0	0.6	13.0	10.5	6.5	10.0	0.6
223	0.022	13.0	10.0	6.0	10.0	0.6	13.0	10.0	6.0	10.0	0.6	13.0	11.5	8.0	10.0	0.6
333	0.033	13.0	10.0	6.0	10.0	0.6	13.0	10.5	7.0	10.0	0.6	18.0	12.0	8.0	15.0	0.8
473	0.047	13.0	10.0	6.0	10.0	0.6	13.0	10.5	7.0	10.0	0.6	18.0	13.5	9.0	15.0	0.8
563	0.056	13.0	10.0	6.0	10.0	0.6	13.0	12.0	8.0	10.0	0.6	18.0	14.0	9.5	15.0	0.8
683	0.068	13.0	10.0	6.0	10.0	0.6	18.0	13.0	9.0	15.0	0.8	18.0	15.5	10.5	15.0	0.8
104	0.1	13.0	11.0	7.0	10.0	0.6	18.0	14.0	9.0	15.0	0.8	23.0	17.0	10.0	20.0	0.8
154	0.15	13.0	13.0	9.5	10.0	0.6	18.0	18.0	11.0	15.0	0.8	23.0	18.0	11.0	20.0	0.8
224	0.22	18.0	13.0	8.5	15.0	0.8	18.0	19.0	12.0	15.0	0.8	31.0	20.0	12.0	27.0	0.8
334	0.33	18.0	14.0	9.5	15.0	0.8	23.0	19.0	11.0	20.0	0.8	31.0	23.0	14.0	27.0	0.8
474	0.47	23.0	15.0	8.5	20.0	0.8	31.0	18.0	11.0	27.0	0.8	31.0	26.0	17.0	27.0	0.8
564	0.56	23.0	16.0	10.0	20.0	0.8	31.0	20.0	12.0	27.0	0.8
684	0.68	23.0	18.0	11.0	20.0	0.8	31.0	21.0	12.0	27.0	0.8
105	1	23.0	19.0	12.0	20.0	0.8	31.0	23.0	15.0	27.0	0.8
155	1.5	23.0	23.0	16.0	20.0	0.8
225	2.2	31.0	24.0	13.0	27.0	0.8
335	3.3	31.0	25.0	14.0	27.0	0.8
