Product Specifications
| Prod Model: |
MQZ-3 RPM counter |
| Markets: |
North America,Eastern Asia,Western Europe |
| Type: |
Counter |
| Theory: |
Mechanical |
| Function: |
Rpm Counter |
Product Description

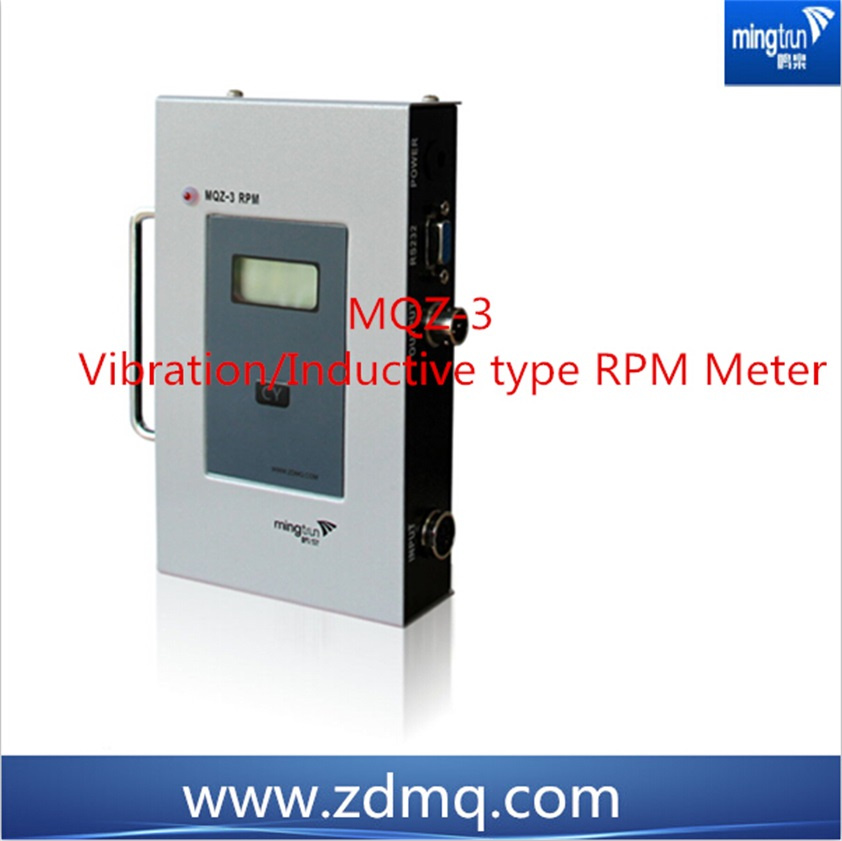

Model: MQZ-3
Vibration RPM Meter
Application
MQZ-3 measures the engine rotational speed of motor vehicles, especially those without cigar lighter interface. Ideal for the matches with MQW-50A, MQW-550 gas analyzer and MQY-200 Diesel smoke meter.
General Features
Using human operation menu with easy setting and data reading.
Continuous testing to avoid repeated initialization, meeting the requirements of on-site testing.
Equipped with interface for connecting with Gas Emission Analyzer and Smoke Meter, also RS232 interface for test data transmission.
Main Technical Specifications
Measure Range: 400rpm-9999rpm
Accuracy: Less than 10rpm(400-2000rpm)
Less than 1%(2001-9999rpm)
Response Time: Less than 1s
Refreshing Rate: Every 0.1s
Baud Rate: 9600bps
Power Supply: DC12V(9V-15V)
Power Currency: 400mA
Outline Dimension: 144mm*98mm*40mm
