Product Specifications
| Prod Model: |
MR-A568-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Withstand Hydraulic Pressure: |
≤0.35MPa |
| Voltage Rating: |
DC5V-24V |
| Precision: |
0.2-6L/M 2-30L/M 1-60L/M |
| Output Pulse Duty Cycle: |
50%±10% |
| 50%±10%: |
>DC4.7V |
| Min Output Pulse Voltage: |
|
| Accuracy: |
?à0.6-1% |
| Main Application: |
Corrosive Liquid/Gas |
| Size: |
DN50-100 |
| Sensor: |
Tube/Flange |
| Type: |
Turbine Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
Product Description
Introduction

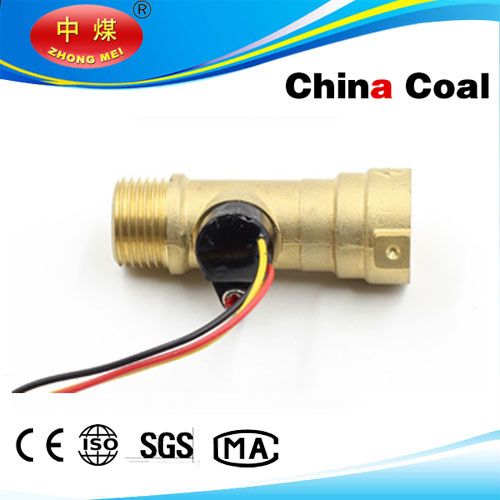

Flow sensor consists of magnetic core, rotating impeller, external casing and sensor.Flow through the sensor activates the magnetic core to trigger switch action, with signal output.
Features
Imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.It is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.
| withstand hydraulic pressure | ≤0.35Mpa |
| voltage rating | DC5V-24V |
| insulation resistance | >100MΩ |
| precision | 0.2-6L/M 2-30L/M 1-60L/M |
| flow pulse | F=(18Q)+5% Q=L/min |
| output pulse duty cycle | 50%±10% |
| max output pulse voltage | >DC4.7V |
| min output pulse voltage | |
| body material | Nylon |
